A single-ended (i.e. positive only) 8-bit A/D input module has a range of 1mA to...

Question

Question

A single-ended (i.e. positive only) 8-bit A/D input module has a
range of 1mA to 21mA. Calculate the digital value for 14.4 mA. ans:1

engineering Electrical-Engineering

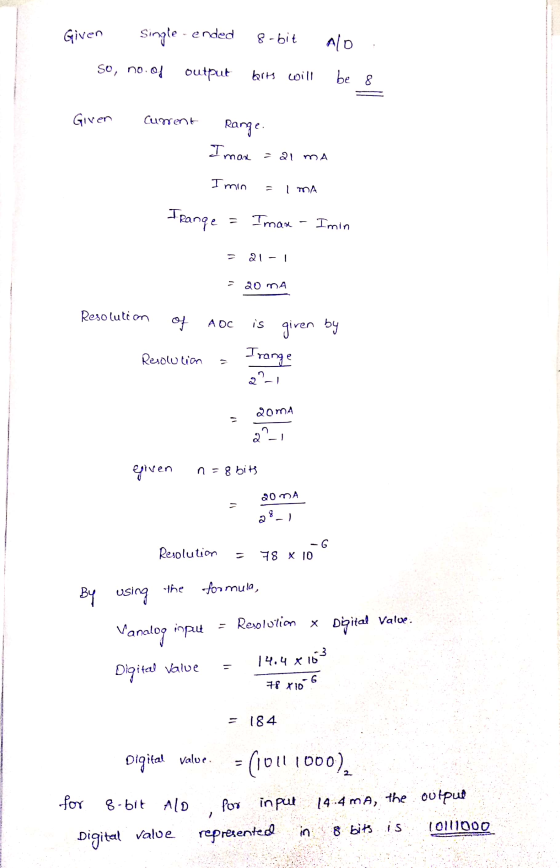

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

1900) An analog input module uses an A/D converter with 8-bit resolution. The module range is...

1900) An analog input module uses an A/D converter with 8-bit resolution. The module range is -10 volts to +10 volts. Calculate the module output (digital count) when the input voltage is 3.7 volts. 1) floating point calculation, 2) discrete rounded result (actual digital count), 3) answer-2 minus answer-1 and 4) voltage resolution or smallest detectable change (volts). Assume the minimum digital value is zero. ans:4 thats all that was given to me
1912) A PLC current-input module has a resolution of 9-bits and has a range of 2mA...

1912) A PLC current-input module has a resolution of 9-bits and has a range of 2mA to 18mA. Calculate the digital value for 12.620 mA input, and also current resolution (i.e. mA per A/D count). ans:2
please explain An A/D-current integrated circuit has a resolution of 8-bits and has an input range...

please explain An A/D-current integrated circuit has a resolution of 8-bits and has an input range of 7mA to 18mA. Calculate the digital-output value for 17.110 mA input, and also current resolution (i.e. mA per A/D count). Current range divided by 2^8 is an approximate calculation of current resolution. Calculate the approximate current resolution and the positive difference between the two. ans:4

Please explain An A/D-current integrated circuit has a resolution of 8-bits and has an input range...

Please explain An A/D-current integrated circuit has a resolution of 8-bits and has an input range of 7mA to 18mA. Calculate the digital-output value for 17.110 mA input, and also current resolution (i.e. mA per A/D count). Current range divided by 2^8 is an approximate calculation of current resolution. Calculate the approximate current resolution and the positive difference between the two. ans:4
8 (8 points) A 6-bit successive approximation A/D conversion has an input range of 0 to...

8 (8 points) A 6-bit successive approximation A/D conversion has an input range of 0 to 10 v For an input signal of 6 V, show the The final bit values are (from MSB to LSB) conversion process in the following block. 10 7.5 2.5 0
A 12-bit A/D converter has an input range of ±8 V. Determine the step size. Do...

A 12-bit A/D converter has an input range of ±8 V. Determine the step size. Do this by hand and show all work.

2. (a) An 8-bit A/D converter has an input range of 0 to 15 V and...

2. (a) An 8-bit A/D converter has an input range of 0 to 15 V and an output in simple binary. Find the output (in decimal) if the input is (a) 6.42 V (6) -6.42 V (C) 12 V (d) OV (b) Convert Hexa decimal Number B602 to a decimal number and Binary. Convert decimal number 227 to binary number.
2. (a) An 8-bit A/D converter has an input range of 0 to 15 V and...

2. (a) An 8-bit A/D converter has an input range of 0 to 15 V and an output in simple binary. Find the output (in decimal) if the input is (a) 6.42 V (b) -6.42 V (c) 12 V (d) OV (b) Convert Hexa decimal Number B602 to a decimal number and Binary. Convert decimal number 227 to binary number.
When designing an Analog to Digital System all of the range values for the system must be defined from input to output. This input will be used to drive a 3. PWM output signal to operate an LED. A...

When designing an Analog to Digital System all of the range values for the system must be defined from input to output. This input will be used to drive a 3. PWM output signal to operate an LED. Assume the PWM is calibrated to read minimum to maximum based on the binary input range given. Potentiometer - 10 KS2 (0 degrees to 180 degrees) VDC for Potentiometer 12 V Analog Converter Module 10 bit, Vref 8 V PWM Module-8 bit,...

Design a circuit that has a 3 bit binary input and a single output (D). D=0...

Design a circuit that has a 3 bit binary input and a single output (D). D=0 when the input is less than 5 subscript 10 and D=1 otherwise.
