A 13 cm piece of nylon string lies along the x x -axis, starting at x=0...

A 13 cm piece of nylon string lies along the x x -axis, starting at x=0 x = 0 cm. The first 5 cm of the string has a charge density of -9 μ μ C/cm, and the remaining length of the string has a charge density of -7 μ μ C/cm. What is the x x -component of the total electric field at the position x=18 x = 18 cm?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

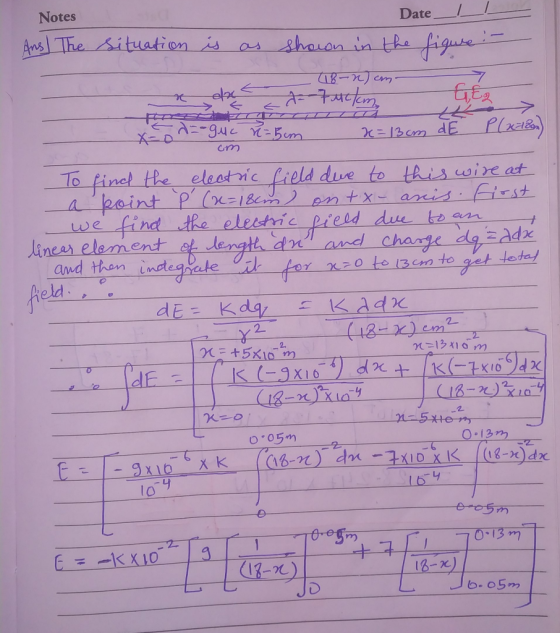

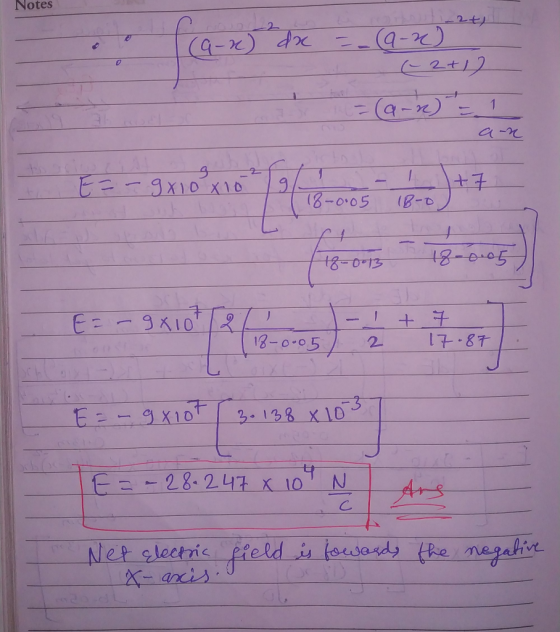

Answer #1

0 0
Add a comment
