Question

A thin rod of length L lies along the x-axis. It has a uniform linear charge distribution λ0.


A thin rod of length L lies along the x-axis. It has a uniform linear charge distribution λ0.

a)  What is the value of the electric potential at a given point x located to the right of the rod? Take V=0 at infinity.

b) What is the strength of the electric field at the point x?

science   Advanced-Physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

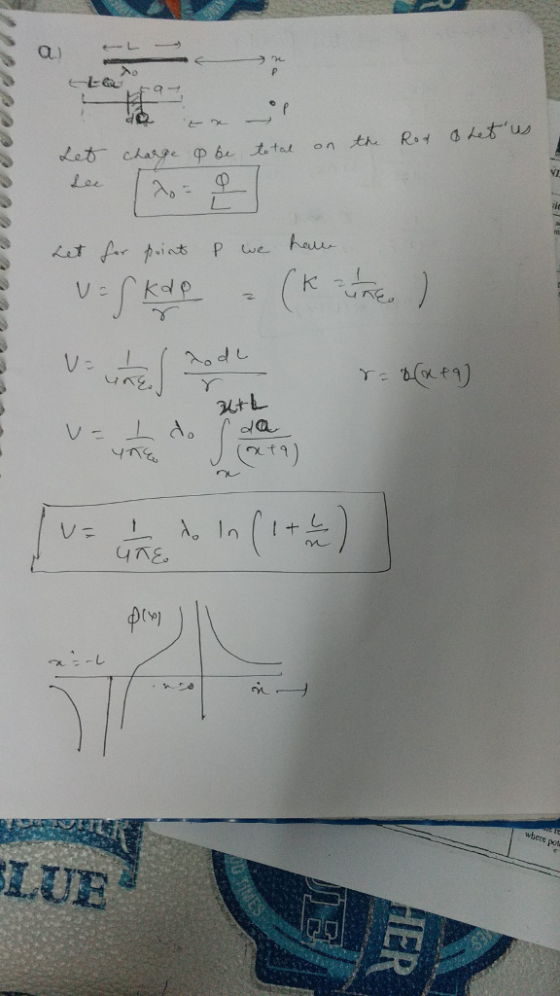

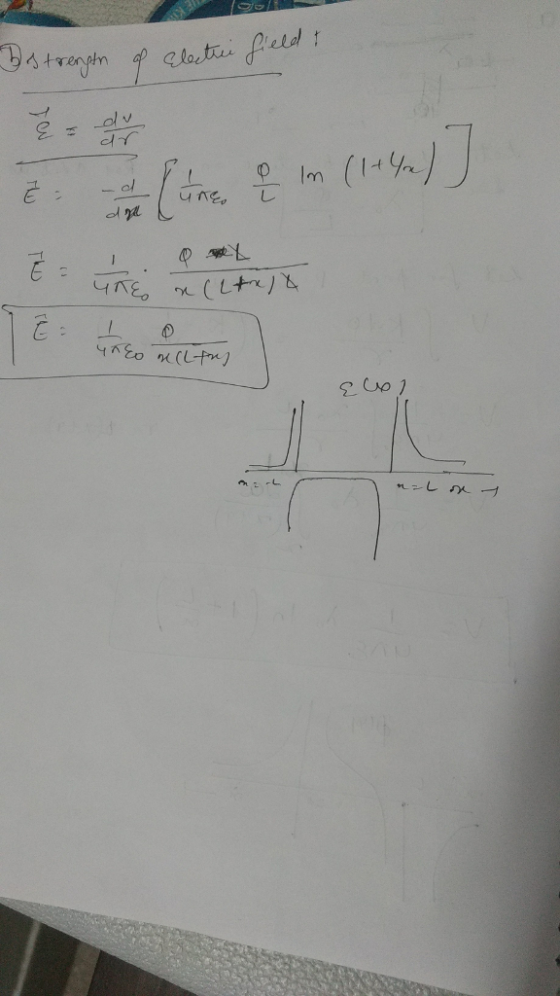

Answer #1

0 0
Add a comment
