A thin rod of length L carries a charge Q. It lies on the +x axis...

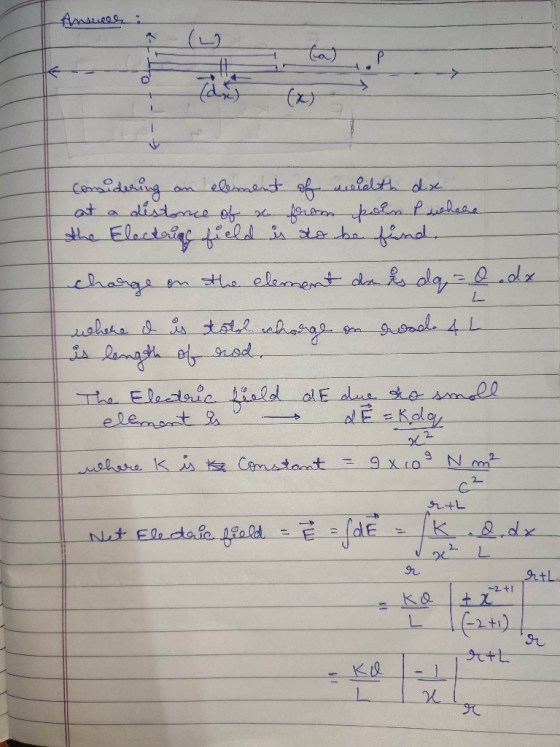

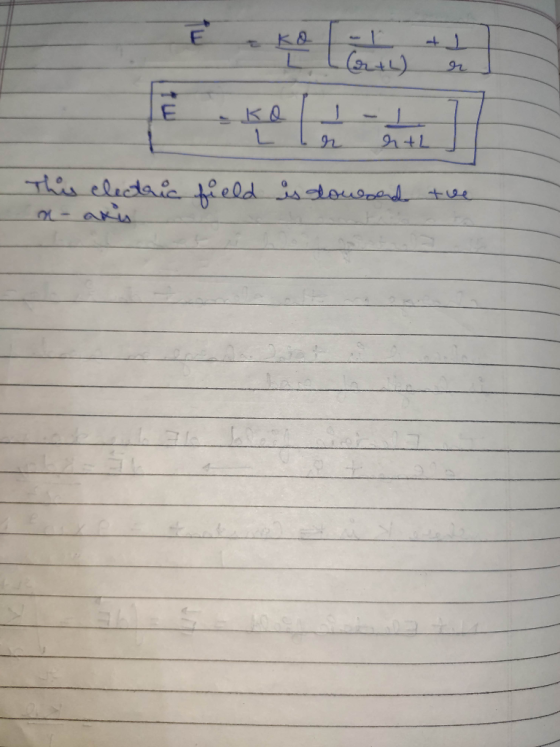

A thin rod of length L carries a charge Q. It lies on the +x axis with one end at the origin. Calculate the electric field on the x-axis some distance a from the end of the rod (along the axis of the rod).
Homework Answers
