A rod of length L is located along the x-axis with its right end at the...

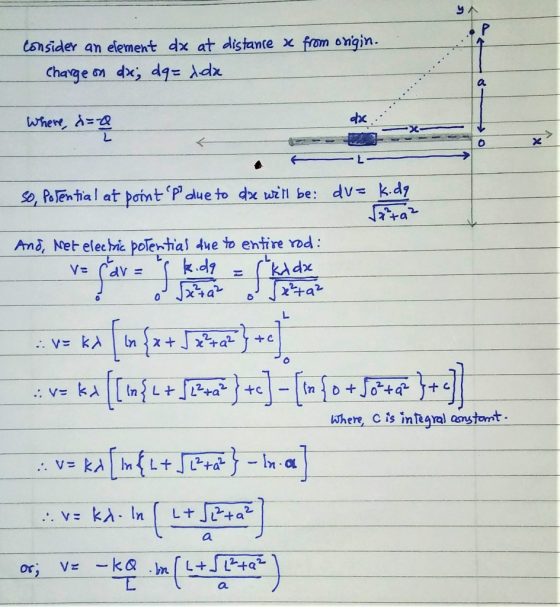

A rod of length L is located along the x-axis with its right end at the origin. The rod has a total charge -Q and a uniform linear charge density. Find the electric potential at point P located on the y-axis a distance a from the origin.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Alright Dude, If that worked for you... dont forget to give THUMBS UP.(that will work for me!)
Please Vote...
If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using Chegg- Smarter way to study.

1 0
Add a comment
Know the answer?
Add Answer to:
A rod of length L is located along the x-axis with its right end at the...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A rod of Length L lies along the x axis with its left end at the...

    A rod of Length L lies along the x axis with its left end at the origin. It has a nonuniform charge density lambda = alpha x, where alpha is a positive constant. Calculate the electric potential at point B, which lies on the perpendicular bisector of the rod a distance b above the x-axis. (Use the following as necessary: alpha, k_, L, b, and d.) v = A wire having a uniform linear charge density lambda is bent into...

  • A uniformly charged rod of length L=2.2 m lies along the x-axis with its right end at the origin.

    A uniformly charged rod of length L=2.2 m lies along the x-axis with its right end at the origin. The rod has a total charge of Q=6.8 μC, A point P is located on the x-axis a distance a = 0.45 m to the right of the origin.Part (a) Consider a thin slice of the rod of thickness dr located a distance x away from the origin. What is the direction of the electric field at point P due to the...

  • A uniformly charged rod of length L=1.6 m lies along the x-axis with its right end at the origin. The rod has a total charge of Q = 2.6 uC.

    A uniformly charged rod of length L=1.6 m lies along the x-axis with its right end at the origin. The rod has a total charge of Q = 2.6 uC. A point P is located on the x-axis a distance a = 1.2 m to the right of the origin.Part (a) Consider a thin slice of the rod of thickness dr located a distance x away from the origin, what is the direction of the electric field t point P due...

  • A finite rod of length L has total charge q, distributed uniformly along its length.

    Potential of a Finite RodA finite rod of length L has total charge q, distributed uniformly along its length. The rod lies on the x-axis and is centered at the origin. Thus one endpoint is located at (-L/2,0), and the other is located at  (L/2,0). Define the electric potential to be zero at an infinite distance away from the rod. Throughout this problem, you may use the constant k in place of the expression .a) What is VA, the electric potential...

  • A uniformly charged rod of length L and total charge Q lies along the x axis

    8. A uniformly charged rod of length L and total charge Q lies along the x axis as shown in in the figure below. Find the components of the electric field at the point P on the y axis a distance d from the origin. ANSWER:

  • On a thin rod of length L lying along the x-axis with one end at the...

    On a thin rod of length L lying along the x-axis with one end at the origin (x = 0), there is distributed a charge per unit length given by λ = b x, where b is a constant. (a) Taking the electrostatic potential at infinity to be zero, find V at the point P on the y-axis. (b) Determine the vertical component, Ey, of the electric field intensity at P from the result of part (a). (c) What is...

  • A thin rod of length L lies along the x-axis. It has a uniform linear charge distribution λ0.

    A thin rod of length L lies along the x-axis. It has a uniform linear charge distribution λ0. a)  What is the value of the electric potential at a given point x located to the right of the rod? Take V=0 at infinity.b) What is the strength of the electric field at the point x?

  • A uniformly charged rod of length L and total charge Q lies along the x axis as shown in in the figure below.

    A uniformly charged rod of length L and total charge Q lies along the x axis as shown in in the figure below. (Use the following as necessary: Q, L, d, and ke.) (a) Find the components of the electric field at the point P on the y axis a distance d from the origin (b) What are the approximate values of the field components when d >> L?

  • A thin rod of length L with total charge Q lies along the x-axis and is...

    A thin rod of length L with total charge Q lies along the x-axis and is centered at the origin. Please answer the following A. What is the electric field strength E at a point P located at position x? B. Does your expression have the expected behavior for x >> L? C. Evaluate E at x = 1.9 cm if L = 3.5 cm and Q = 17 nC.

  • Question 2 (3 points) A rod sits horizontally along the x-axis with a continuous uniform charge...

    Question 2 (3 points) A rod sits horizontally along the x-axis with a continuous uniform charge distribution such that the linear charge density λ is 0.025 C/m, with one end of the rod at the origin and the other end of the rod at x = 0.35m. Find the electric potential at the point on the x-axis where x = 0.45 m given that the potential an infinite distance from the rod is defined as being equal to zero.
