two 480V alternators in parallel have the same field excitation. One delivers 400A at 0.9 pf...

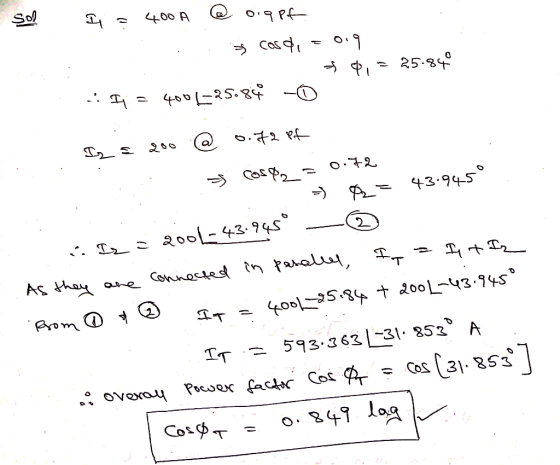

two 480V alternators in parallel have the same field
excitation. One delivers 400A at 0.9 pf lagging and the other
delivers 200A at 0.72 pf lagging. Find the overall pf of the
system
Homework Answers
Add Answer to:
two 480V alternators in parallel have the same field
excitation. One delivers 400A at 0.9 pf...
