What length of AWG #20 constantan wire is required to make a 1.55ohm shunt resistor for...

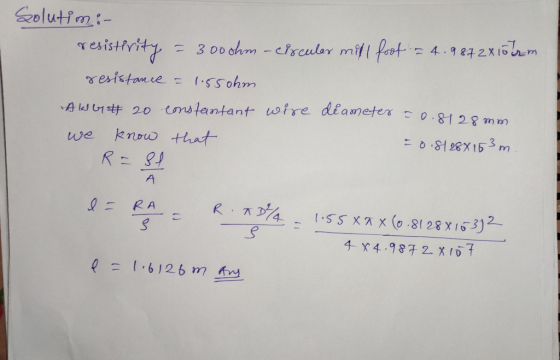

What length of AWG #20 constantan wire is required to make a 1.55ohm shunt resistor for an ammeter? Constantan's electrical resistivity is 300 ohms-Circular Mil/Foot

engineering   Electrical-Engineering
