Computer Science 182 Data Structures and Program Design

Programming Project #3 – Link List Card Games

One of the nice things about Java is it is very easy to do fun things with graphics. The start code provided here will display a deck of cards on the screen and shuffle them.

Your mission, is to start with this code and build a card game. Blackjack, poker solitaire, what ever your heart desires. Blackjack is the easiest. Obviously any program you write will not just display all the cards on the screen, it will not reveal the cards until dealt. And please, 52-Pickup is not a valid game for this project

Students that are not strong Java programmers please do not get too ambitious, it is enough to deal Blackjack (dealer and player), hit and stand. Some basic scoring of the game is required, but keep it simple.

The cards you see on the screen will be part of a Linked List. When you deal a hand of cards, you must create your own Linked List of cards and move the dealt card(s) from the deck's linked list to the hands linked list.

Make sure you pay attention to the following guidelines for this project:

1. Design First: Sketch on paper what you want the screen to look like. Draw it at the start of the game (empty card hands), and at the end of the hand (full card hands). Draw your linked lists. Draw pictures of what the linked lists will look like. Draw the lists at the start of the game (empty card hands), and at the end of the hand (full card hands). Finally write some pseudo code for the deal, the transfer of cards from the deck to the player(s) hand.
2. Use at least 3 linked lists in your design. For Blackjack to would be a deck, a dealer and a player linked list of cards. If you want to program a game with just 2 lists, you must get the instructors approval before you start coding.
3. Update the Card class for use in scoring. The card class must have member variables that allow you to determine the rank and/or the suit of the card.
4. Use the linked lists when displaying cards. When you show cards in a linked list use the following pseudo code to do it:

   current card =  list.first

   while  (current card is NOT null)
       display current card on the screen
       current card = current card.next



Here are some hints that make this project easier:

1. Write simple version(s) of the program first. Comment out the loop that displays all 52 cards in the deck. Create a new card list, write the code to delete several cards from the deck, insert them into the new card list and displays them. In other words, don't start with a full version of poker, write a simple program that creates a hand, deals 5 cards from the deck to the hand and displays those 5 cards.
2. Do not shuffle the cards! It is much easier to debug the linked lists, knowing exactly which cards will be coming off the deck and moving into the hand(s). When the program is working, then start shuffling the cards.

Here is a zip file with the cards of the deck:
  images.zip (Links to an external site.)

You will need to download and unzip this file into the same directory as your project files in order to load card images and display them.

Here is the code you should start with.

import javax.swing.*;
import java.awt.*;
import java.awt.event.*;
import java.io.*;

public class Project3 extends JFrame implements ActionListener {

  private static int winxpos=0,winypos=0;      // place window here


  private JButton shuffleButton,exitButton, newButton;
  private CardList theDeck = null;
  private JPanel northPanel;
  private MyPanel centerPanel;
  private static JFrame myFrame = null;

  ////////////              MAIN      ////////////////////////
  public static void main(String[] args) {
     Project3 tpo = new Project3();
  }

  ////////////            CONSTRUCTOR   /////////////////////
  public Project3 ()
  {
        myFrame = this;                 // need a static variable reference to a JFrame object
        northPanel = new JPanel();
        northPanel.setBackground(Color.white);
        shuffleButton = new JButton("Shuffle");
        northPanel.add(shuffleButton);
        shuffleButton.addActionListener(this);
        newButton = new JButton("New Deck");
        northPanel.add(newButton);
        newButton.addActionListener(this);
        exitButton = new JButton("Exit");
        northPanel.add(exitButton);
        exitButton.addActionListener(this);
        getContentPane().add("North",northPanel);

        centerPanel = new MyPanel();
        getContentPane().add("Center",centerPanel);

        theDeck = new CardList(52);

        setSize(800,700);
        setLocation(winxpos,winypos);

        setVisible(true);
   }


  ////////////   BUTTON CLICKS ///////////////////////////
  public void actionPerformed(ActionEvent e) {

      if (e.getSource()== exitButton) {
        dispose(); System.exit(0);
      }
       if (e.getSource()== shuffleButton) {
        theDeck.shuffle();
        repaint();
      }
       if (e.getSource()== newButton) {
        theDeck = new CardList(52);
        repaint();
      }
  }


// This routine will load an image into memory
//
public static Image load_picture(String fname)
{
        // Create a MediaTracker to inform us when the image has
        // been completely loaded.
        Image image;
        MediaTracker tracker = new MediaTracker(myFrame);


        // getImage() returns immediately.  The image is not
        // actually loaded until it is first used.  We use a
        // MediaTracker to make sure the image is loaded
        // before we try to display it.

        image = myFrame.getToolkit().getImage(fname);

        // Add the image to the MediaTracker so that we can wait
        // for it.
        tracker.addImage(image, 0);
        try { tracker.waitForID(0); }
        catch ( InterruptedException e) { System.err.println(e); }

        if (tracker.isErrorID(0)) { image=null;}
        return image;
}
// --------------   end of load_picture ---------------------------

class MyPanel extends JPanel {

 ////////////    PAINT   ////////////////////////////////
  public void paintComponent (Graphics g) {
    //
    int xpos = 25, ypos = 5;
    if (theDeck == null) return;
    Card current = theDeck.getFirstCard();
    while (current!=null) {
       Image tempimage = current.getCardImage();
       g.drawImage(tempimage, xpos, ypos, this);
       // note: tempimage member variable must be set BEFORE paint is called
       xpos += 80;
       if (xpos > 700) {
          xpos = 25; ypos += 105;
       }
       current = current.getNextCard();
    } //while
  }
}

}    // End Of class Project3

/*****************************************************************
   Class Link, the base class for a link list of playing cards
   May be placed in a file named Link.java

******************************************************************/
class Link {
  protected Link next;

  public Link getNext() { return next; }
  public void setNext(Link newnext) { next = newnext; }

}  // end class Link

/*****************************************************************
   Class Card, the derived class each card is one object of type Card
   May be placed in a file named Card.java
******************************************************************/

class Card extends Link {
  private Image cardimage;

  public Card (int cardnum) {
    cardimage = Project3.load_picture("images/gbCard" + cardnum + ".gif");
    // code ASSUMES there is an images sub-dir in your project folder
    if (cardimage == null) {
      System.out.println("Error - image failed to load: images/gbCard" + cardnum + ".gif");
      System.exit(-1);
    }
  }
  public Card getNextCard() {
    return (Card)next;
  }
  public Image getCardImage() {
    return cardimage;
  }
}  //end class Card

/*****************************************************************
   Class CardList, A Linked list of playing cards
   May be placed in a file named CardList.java

   Note : This class can be used to create a 'hand' of cards
   Just Create another CardList object, and delete cards from
   'theDeck' and insert the cards into the new CardList object

******************************************************************/

class CardList {
  private Card firstcard = null;
  private int numcards=0;

  public  CardList(int num) {
    numcards = num;   //set numcards in the deck
    for (int i = 0; i < num; i++) {  // load the cards
      Card temp = new Card(i);
      if (firstcard != null) {
        temp.setNext(firstcard);
      }
      firstcard = temp;
    }
  }

  public Card getFirstCard() {
      return firstcard;
  }

  public Card deleteCard(int cardnum) {
    Card target, targetprevious;

    if (cardnum > numcards)
      return null;   // not enough cards to delete that one
    else
      numcards--;

    target = firstcard;
    targetprevious = null;
    while (cardnum-- > 0) {
        targetprevious = target;
        target = target.getNextCard();
        if (target == null) return null;  // error, card not found
    }
    if (targetprevious != null)
      targetprevious.setNext(target.getNextCard());
    else
      firstcard =  target.getNextCard();
    return target;
  }

  public void insertCard(Card target) {
    numcards++;
    if (firstcard != null)
      target.setNext(firstcard);
    else
      target.setNext(null);
    firstcard =  target;
  }

  public void shuffle() {
    for ( int i = 0; i < 300; i++) {
      int rand = (int)(Math.random() * 100) % numcards;
      Card temp = deleteCard(rand);
      if (temp != null) insertCard(temp);
    }  // end for loop
  }   // end shuffle


}    // end class CardList

Here is the image of a card back. You can download it using a right click on the image:

Here are 52 card images. You can download them using a right click on the image or by clicking here:

You can download the 52 card images using this link: https://coc.instructure.com/courses/15862/files/1933674/download?wrap=1

Answer 1

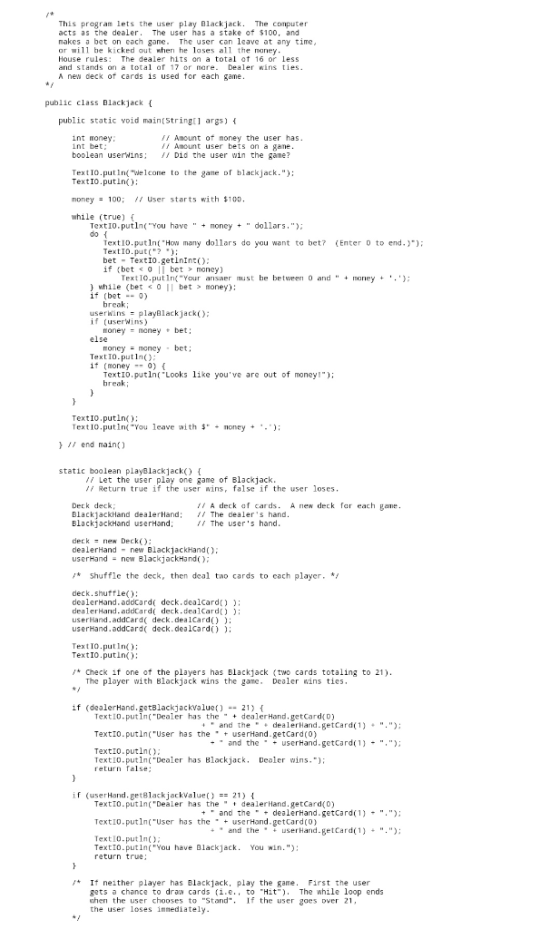

The code for Blackjack is given below :

   /*
       This program lets the user play Blackjack.  The computer
       acts as the dealer.  The user has a stake of $100, and
       makes a bet on each game.  The user can leave at any time,
       or will be kicked out when he loses all the money.
       House rules:  The dealer hits on a total of 16 or less
       and stands on a total of 17 or more.  Dealer wins ties.
       A new deck of cards is used for each game.
    */

    public class Blackjack {

       public static void main(String[] args) {

          int money;          // Amount of money the user has.
          int bet;            // Amount user bets on a game.
          boolean userWins;   // Did the user win the game?

          TextIO.putln("Welcome to the game of blackjack.");
          TextIO.putln();

          money = 100;  // User starts with $100.

          while (true) {
              TextIO.putln("You have " + money + " dollars.");
              do {
                 TextIO.putln("How many dollars do you want to bet?  (Enter 0 to end.)");
                 TextIO.put("? ");
                 bet = TextIO.getlnInt();
                 if (bet < 0 || bet > money)
                     TextIO.putln("Your answer must be between 0 and " + money + '.');
              } while (bet < 0 || bet > money);
              if (bet == 0)
                 break;
              userWins = playBlackjack();
              if (userWins)
                 money = money + bet;
              else
                 money = money - bet;
              TextIO.putln();
              if (money == 0) {
                 TextIO.putln("Looks like you've are out of money!");
                 break;
              }
          }

          TextIO.putln();
          TextIO.putln("You leave with $" + money + '.');

       } // end main()


       static boolean playBlackjack() {
             // Let the user play one game of Blackjack.
             // Return true if the user wins, false if the user loses.

          Deck deck;                  // A deck of cards.  A new deck for each game.
          BlackjackHand dealerHand;   // The dealer's hand.
          BlackjackHand userHand;     // The user's hand.

          deck = new Deck();
          dealerHand = new BlackjackHand();
          userHand = new BlackjackHand();

          /*  Shuffle the deck, then deal two cards to each player. */

          deck.shuffle();
          dealerHand.addCard( deck.dealCard() );
          dealerHand.addCard( deck.dealCard() );
          userHand.addCard( deck.dealCard() );
          userHand.addCard( deck.dealCard() );

          TextIO.putln();
          TextIO.putln();

          /* Check if one of the players has Blackjack (two cards totaling to 21).
             The player with Blackjack wins the game.  Dealer wins ties.
          */

          if (dealerHand.getBlackjackValue() == 21) {
               TextIO.putln("Dealer has the " + dealerHand.getCard(0)
                                       + " and the " + dealerHand.getCard(1) + ".");
               TextIO.putln("User has the " + userHand.getCard(0)
                                         + " and the " + userHand.getCard(1) + ".");
               TextIO.putln();
               TextIO.putln("Dealer has Blackjack.  Dealer wins.");
               return false;
          }

          if (userHand.getBlackjackValue() == 21) {
               TextIO.putln("Dealer has the " + dealerHand.getCard(0)
                                       + " and the " + dealerHand.getCard(1) + ".");
               TextIO.putln("User has the " + userHand.getCard(0)
                                         + " and the " + userHand.getCard(1) + ".");
               TextIO.putln();
               TextIO.putln("You have Blackjack.  You win.");
               return true;
          }

          /*  If neither player has Blackjack, play the game.  First the user
              gets a chance to draw cards (i.e., to "Hit").  The while loop ends
              when the user chooses to "Stand".  If the user goes over 21,
              the user loses immediately.
          */

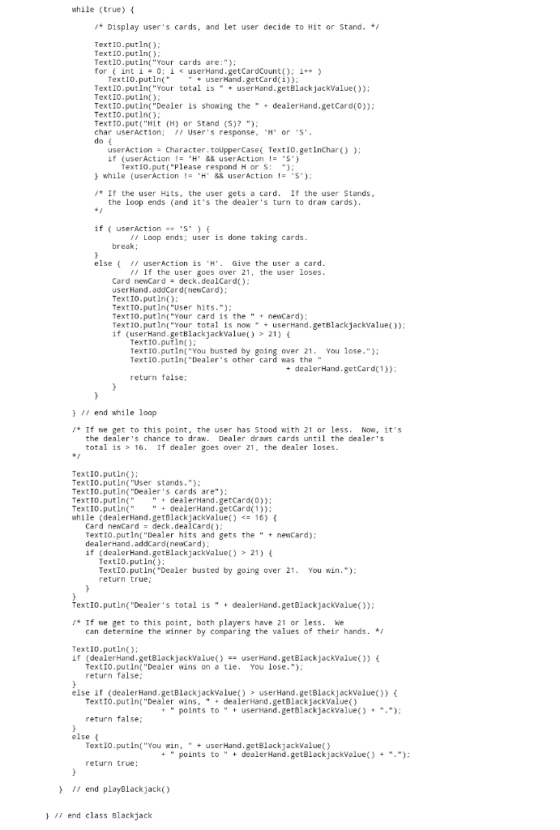

          while (true) {

               /* Display user's cards, and let user decide to Hit or Stand. */

               TextIO.putln();
               TextIO.putln();
               TextIO.putln("Your cards are:");
               for ( int i = 0; i < userHand.getCardCount(); i++ )
                  TextIO.putln("    " + userHand.getCard(i));
               TextIO.putln("Your total is " + userHand.getBlackjackValue());
               TextIO.putln();
               TextIO.putln("Dealer is showing the " + dealerHand.getCard(0));
               TextIO.putln();
               TextIO.put("Hit (H) or Stand (S)? ");
               char userAction;  // User's response, 'H' or 'S'.
               do {
                  userAction = Character.toUpperCase( TextIO.getlnChar() );
                  if (userAction != 'H' && userAction != 'S')
                     TextIO.put("Please respond H or S:  ");
               } while (userAction != 'H' && userAction != 'S');

               /* If the user Hits, the user gets a card.  If the user Stands,
                  the loop ends (and it's the dealer's turn to draw cards).
               */

               if ( userAction == 'S' ) {
                       // Loop ends; user is done taking cards.
                   break;
               }
               else {  // userAction is 'H'.  Give the user a card.
                       // If the user goes over 21, the user loses.
                   Card newCard = deck.dealCard();
                   userHand.addCard(newCard);
                   TextIO.putln();
                   TextIO.putln("User hits.");
                   TextIO.putln("Your card is the " + newCard);
                   TextIO.putln("Your total is now " + userHand.getBlackjackValue());
                   if (userHand.getBlackjackValue() > 21) {
                       TextIO.putln();
                       TextIO.putln("You busted by going over 21.  You lose.");
                       TextIO.putln("Dealer's other card was the "
                                                          + dealerHand.getCard(1));
                       return false;
                   }
               }

          } // end while loop

          /* If we get to this point, the user has Stood with 21 or less.  Now, it's
             the dealer's chance to draw.  Dealer draws cards until the dealer's
             total is > 16.  If dealer goes over 21, the dealer loses.
          */

          TextIO.putln();
          TextIO.putln("User stands.");
          TextIO.putln("Dealer's cards are");
          TextIO.putln("    " + dealerHand.getCard(0));
          TextIO.putln("    " + dealerHand.getCard(1));
          while (dealerHand.getBlackjackValue() <= 16) {
             Card newCard = deck.dealCard();
             TextIO.putln("Dealer hits and gets the " + newCard);
             dealerHand.addCard(newCard);
             if (dealerHand.getBlackjackValue() > 21) {
                TextIO.putln();
                TextIO.putln("Dealer busted by going over 21.  You win.");
                return true;
             }
          }
          TextIO.putln("Dealer's total is " + dealerHand.getBlackjackValue());

          /* If we get to this point, both players have 21 or less.  We
             can determine the winner by comparing the values of their hands. */

          TextIO.putln();
          if (dealerHand.getBlackjackValue() == userHand.getBlackjackValue()) {
             TextIO.putln("Dealer wins on a tie.  You lose.");
             return false;
          }
          else if (dealerHand.getBlackjackValue() > userHand.getBlackjackValue()) {
             TextIO.putln("Dealer wins, " + dealerHand.getBlackjackValue()
                              + " points to " + userHand.getBlackjackValue() + ".");
             return false;
          }
          else {
             TextIO.putln("You win, " + userHand.getBlackjackValue()
                              + " points to " + dealerHand.getBlackjackValue() + ".");
             return true;
          }

       }  // end playBlackjack()


    } // end class Blackjack
