The concrete sections of a certain superhighway are designed to have a length of 24.0 m....
The concrete sections of a certain superhighway are designed to have a length of 24.0 m. The sections are poured and cured at 10.0°C. What minimum spacing should the engineer leave between the sections to eliminate buckling if the concrete is to reach a temperature of 58.0°C?
cm
Homework Answers
Add Answer to:
The concrete sections of a certain superhighway are designed to
have a length of 24.0 m....
The concrete sections of a certain superhighway are designed to have a length of 24.0 m....

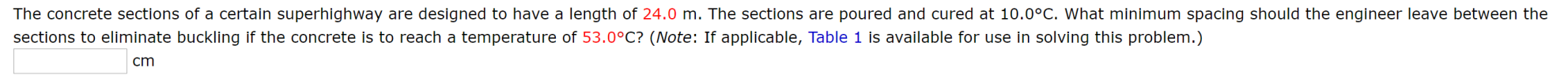

The concrete sections of a certain superhighway are designed to have a length of 24.0 m. The sections are poured and cured at 10.0°C. What minimum spacing should the engineer leave between the sections to eliminate buckling if the concrete is to reach a temperature of 53.0°C? (Note: If applicable, Table 1 is available for use in solving this problem.) cm
Concrete sidewalks are always laid in sections, with gaps between each section. For example, the drawing...
Concrete sidewalks are always laid in sections, with gaps between each section. For example, the drawing shows three identical 2.4-m sections, the outer two of which are against immovable walls. The two identical gaps between the sections are provided so that thermal expansion will not create the thermal stress that could lead to cracks. What is the minimum gap width necessary to account for an increase in temperature of 41° C? (See Table 12.1 for appropriate constants.) Incorrect: Your answer...
A certain laboratory experiment requires an aluminum wire of length of 24.0 m and a resistance...
A certain laboratory experiment requires an aluminum wire of length of 24.0 m and a resistance of 3.20 Ω at 20.0°C. What diameter wire must be used? (The resistivity of aluminum at 20.0°C is 2.82 ✕ 10−8 Ω · m.) IN mm
(5) A concrete wall is poured between two vertical forms of height H-1 m and length...
(5) A concrete wall is poured between two vertical forms of height H-1 m and length is 60 m. The thickness of the wall is w=0.25 m. The forms are supported by rods every 3 m (the left one denoted by BC). The rods and forms a pin supported at A, B, and C. The specific gravity of the wet concrete is 2.4 and x-0.5 m Calculate the load in the supporting rod BC. 8
A concrete highway is built of slabs 20 m long (20 degree C). How wide should...
A concrete highway is built of slabs 20 m long (20 degree C). How wide should the expansion cracks between the slabs be (at 20 degree C) to prevent buckling if the range of temperature is -30 degree C to +55 degree C?
A concrete highway is built of slabs 14 m long (15 ∘C). Part A How wide...
A concrete highway is built of slabs 14 m long (15 ∘C). Part A How wide should the expansion cracks between the slabs be (at 15 ∘C) to prevent buckling if the range of temperature is -30∘C to +47 ∘C? Express your answer to two significant figures and include the appropriate units. ΔL ΔL = nothingnothing SubmitRequest Answer
A concrete highway is built of slabs 10 m long (20 degree C). How wide should...
A concrete highway is built of slabs 10 m long (20 degree C). How wide should the expansion cracks between the slabs be (at 15 degree C) to prevent buckling if the range of temperature is -30 degree C to 47 degree C? Express your answer using two significant figures. Delta t = 3.240. middot 10^-3
Question 1 (3 marks) A concrete highway is built of slabs 12 m long (at 15°C)....
Question 1 (3 marks) A concrete highway is built of slabs 12 m long (at 15°C). How wide should the expansion cracks be- tween the slabs be at 15°C to prevent buckling of the concrete over the range of temperature -30°C to +50°C? The coefficient of thermal expansion for concrete is 12 x 10""(Cº). Question 2 (3+3 = 6 marks) (a) At 18.0°C, a certain quantity of oxygen occupies a volume of 61.5 L at an absolute pressure of 2.45...
SECTION I 01. (D) The Eiffel Tower (Fig. 13-31) is built of wrought iron approximately 300...
SECTION I 01. (D) The Eiffel Tower (Fig. 13-31) is built of wrought iron approximately 300 m tall. Estimate how much its height changes between January (average temperature of 2°C) and July (average temperature of 25 C). Ignore the angles of the iron beams and treat the tower as a vertical beam. Ignore effects of Gravity. (T) A concrete highway is built of slabs 12 m long (15°C). How wide should the expansion cracks between the slabs be (at 15°C)...
(I) The Eiffel Tower (Fig. 13-31) is built of wrought iron approximately 300 m tall. Estimate...
(I) The Eiffel Tower (Fig. 13-31) is built of wrought iron approximately 300 m tall. Estimate how much its height changes between January (average temperature of 2°C) and July (average temperature of 25°C). Ignore the angles of the iron beams and treat the tower as a vertical beam. Ignore effects of Gravity (I) A concrete highway is built of slabs 12 m long (15°C). How wide should the expansion cracks between the slabs be (at 15°C) to prevent buckling if...
The concrete sections of a certain superhighway are designed to have a length of 24.0 m. The sections are poured and cured at 10.0°C. What minimum spacing should the engineer leave between the sections to eliminate buckling if the concrete is to reach a temperature of 53.0°C? (Note: If applicable, Table 1 is available for use in solving this problem.) cm
(5) A concrete wall is poured between two vertical forms of height H-1 m and length is 60 m. The thickness of the wall is w=0.25 m. The forms are supported by rods every 3 m (the left one denoted by BC). The rods and forms a pin supported at A, B, and C. The specific gravity of the wet concrete is 2.4 and x-0.5 m Calculate the load in the supporting rod BC. 8
A concrete highway is built of slabs 20 m long (20 degree C). How wide should the expansion cracks between the slabs be (at 20 degree C) to prevent buckling if the range of temperature is -30 degree C to +55 degree C?
A concrete highway is built of slabs 10 m long (20 degree C). How wide should the expansion cracks between the slabs be (at 15 degree C) to prevent buckling if the range of temperature is -30 degree C to 47 degree C? Express your answer using two significant figures. Delta t = 3.240. middot 10^-3
Question 1 (3 marks) A concrete highway is built of slabs 12 m long (at 15°C). How wide should the expansion cracks be- tween the slabs be at 15°C to prevent buckling of the concrete over the range of temperature -30°C to +50°C? The coefficient of thermal expansion for concrete is 12 x 10""(Cº). Question 2 (3+3 = 6 marks) (a) At 18.0°C, a certain quantity of oxygen occupies a volume of 61.5 L at an absolute pressure of 2.45...
SECTION I 01. (D) The Eiffel Tower (Fig. 13-31) is built of wrought iron approximately 300 m tall. Estimate how much its height changes between January (average temperature of 2°C) and July (average temperature of 25 C). Ignore the angles of the iron beams and treat the tower as a vertical beam. Ignore effects of Gravity. (T) A concrete highway is built of slabs 12 m long (15°C). How wide should the expansion cracks between the slabs be (at 15°C)...
(I) The Eiffel Tower (Fig. 13-31) is built of wrought iron approximately 300 m tall. Estimate how much its height changes between January (average temperature of 2°C) and July (average temperature of 25°C). Ignore the angles of the iron beams and treat the tower as a vertical beam. Ignore effects of Gravity (I) A concrete highway is built of slabs 12 m long (15°C). How wide should the expansion cracks between the slabs be (at 15°C) to prevent buckling if...
