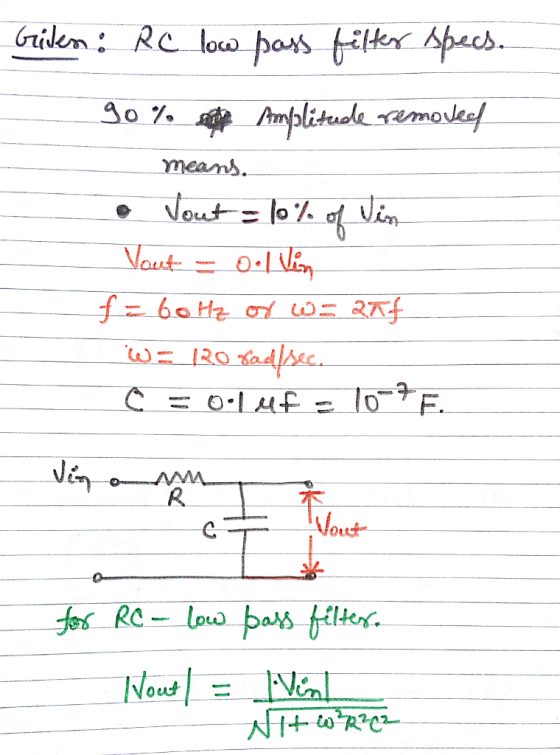

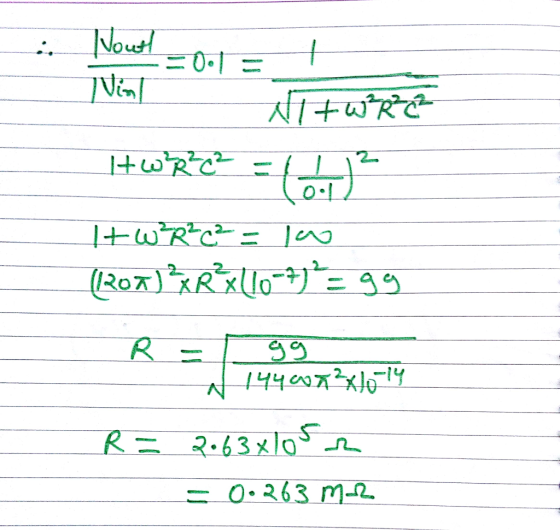

3.112. Design a simple low-pass RC filter to remove 90% of the amplitude of 60 Hz
noise from a DC signal. A 0.1 microfarad capacitor is to be used.
3.112. Design a simple low-pass RC filter to remove 90% of the amplitude of 60 Hz...
Learning Goal: To analyze and design a passive, first-order low- pass filter using a series RL circuit. The analysis and design will be repeated for a series RC circuit. An electrocardiogram needs to detect periodic signals of approximately 1 Hz (since the resting heart rate of a healthy adult is between 55 and 70 beats per minute). The instrument operates in an electrical environment that is very noisy with a frequency of 60 Hz. It is desirable to have a...
Learning Goal: To analyze and design a passive, first-order low-pass filter using a series RL circuit. The analysis and design will be repeated for a series RC circuit. An electrocardiogram needs to detect periodic signals of approximately 1 Hz (since the resting heart rate of a healthy adult is between 55 and 70 beats per minute). The instrument operates in an electrical environment that is very noisy with a frequency of 60 Hz. It is desirable to have a low-pass...
RC Circuit
Design a passive, low-pass filter with corner frequency around 400 Hz and input impedance of at least 1k2. Ģive the component values and compute the magnitude of the output impedance at 100 Hz.
Problem 4: Design a first-order, strictly causal, low-pass DT filter to recover a low frequency sensor signal, corrupted by high frequency noise. The signal can contain frequencies up to 10HZ and the noise has frequencies above IkHz. The sampling frequency is 20kHz and you may assume that there is no aliasing. If the highest distortion allowed for the signal is 1% in amplitude, what is the worst-case attenuation of the noise signal?
Problem 4: Design a first-order, strictly causal, low-pass...
Problem 3) (15 points) An RC filter is designed with a cutoff frequency of 100 Hz. If a low-pass first order filter is used, determine the attenuation (Attenuation %, and Attenuation(dB)) of the filtered analog signal at 50, 75 and 200 Hz. (use k -1) o Determine the order of the filter if magnitude ratio of <0.01 is needed at 200 Hz.
Problem 3) (15 points) An RC filter is designed with a cutoff frequency of 100 Hz. If a...
Pre-Problem: Design a simple first-order low pass filter with a cutoff frequency of 1250Hz (that is, choose resistorand capacitor values for an RC circuit). Plot the filter’s magnitude response to prove that yourfilter is properly designed.
Low-Pass Filter Design and Testing (a) Let the desired signal be an AC with amplitude of 3.2 V and frequency =2325Hz. What is the frequency of your desired AC signal?
design an active low pass filter with cutoff frequency of 400 hz and gain of 10 db at dc
Design a suitable second-order Bessel filter to attenuate the 50 Hz interfering signal to 1/2 LSB for the ATmega328 analog-to-digital converter. Assume that the unattenuated noise appears with an amplitude of 1 V. If you wanted to achieve the same level of attenuation with just a simple passive (RC) filter, what value of capacitor would be required for a resistance R=100 kΩ. Determine the corner frequency.
Design a band filter (High pass=19 Hz and Low pass=21 Hz)
