We have the symbols A, B, C, D, E, F, G, H with frequencies 1,
1, 2, 4, 8, 16, 32, 64.

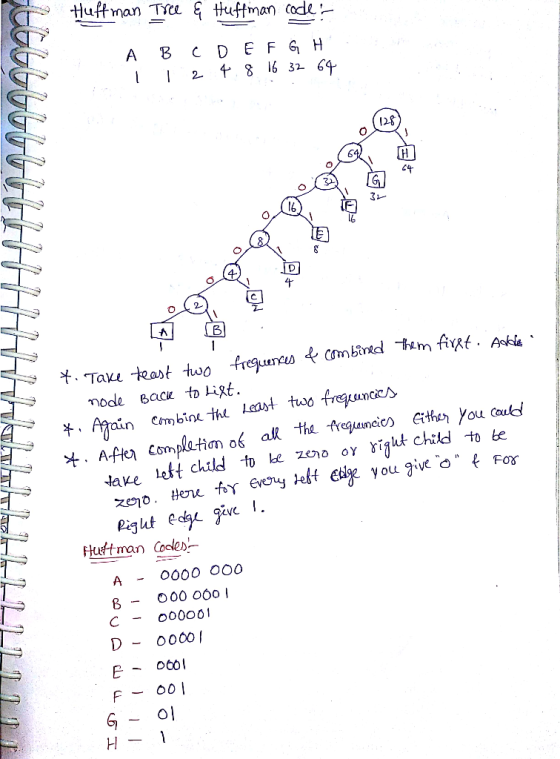

Show the Huffman tree and Huffman code for the symbols.

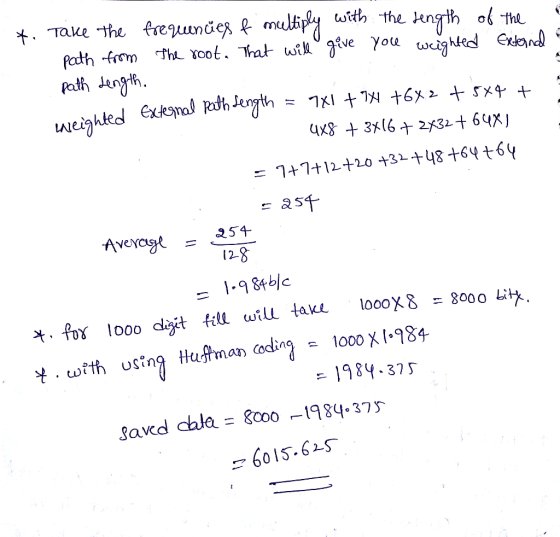

How much compression does a 1000 digit file use when using this
Huffman code based on an 8-bit ASCII code (ie, ISO 8859-1)?
Homework Answers
Add Answer to:
We have the symbols A, B, C, D, E, F, G, H with frequencies 1,
1,...
