Sketch the core circuit of a boost converter and in words explain how it is able...

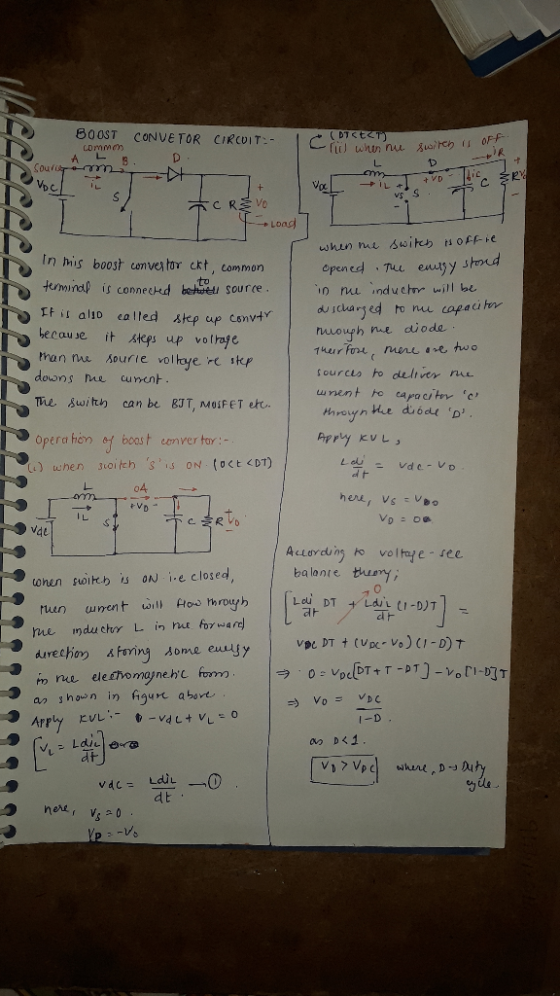

Sketch the core circuit of a boost converter and in words explain how it is able to produce an output voltage higher than the input voltage.
Homework Answers
Add Answer to:
Sketch the core circuit of a boost converter and in words
explain how it is able...
Q5. 5.a. Sketch the circuit arrangement of a DC-DC boost (step up) converter, clearly labelling each...
Q5. 5.a. Sketch the circuit arrangement of a DC-DC boost (step up) converter, clearly labelling each circuit element [4 тarks] [Refer to lecture notes] Sketch all significant operating waveforms for this converter for continuous conduction conditions over two switching periods, in particular showing 5.b. the voltage across the main switching device and the boost diode. [2 marks the voltage across the inductor [3 тarks] the current flowing through the inductor [3 marks [Refer to lecture notes] 5.c. The DC-DC boost...
3. a) Consider a boost converter shown in the figure below. Briefly explain the principle of...
3. a) Consider a boost converter shown in the figure below. Briefly explain the principle of operation of the circuit as a step-up converter, ie, how the input voltage is stepped up and how energy transfer occurs from input to the output in each cycle. Find expressions for vi(l) when the switch is closed and when it is off. Sketch it for one eycle and find its average value, Vu. Find the relationship between input and output voltages by setting...
Please help in this question conserning the buck-boost converter 4. a. Draw a buck-boost converter to...
Please help in this question conserning the buck-boost
converter
4. a. Draw a buck-boost converter to be implemented with an IGBT and diode b. Suggest suitable component values if such a converter is to serve resistive loads between 15 W and 30 W with a constant 8 V output, when the converter's input can vary between 5 V and 12 V. The output peak-to-peak voltage ripple should be less than 5% of the output voltage. The converter should operate in...
Draw a well-labelled circuit diagram of a Buck-Boost converter and draw the equivalent circuit diagrams for...
Draw a well-labelled circuit diagram of a Buck-Boost converter and draw the equivalent circuit diagrams for its two modes of operation (no waveforms). Label all circuits. [30%] With the help of the circuits in 2(a)(i), explain the working of a Buck-Boost converter. [20%] (ii) (b) Consider the following single-phase, half-wave rectifier circuit that is used to charge a battery through a resistor R. GO v, = Vm sin ot = (i) Prove that the average value of the charging current...
Buck-Boost converter 6. Derive the relationship between the average input and output voltage for the buck-boost...
Buck-Boost converter 6. Derive the relationship between the average input and output voltage for the buck-boost converter.
Following figure shows the circuit diagram for a buck-boost converter for switch off and switch o...
Following figure shows the circuit diagram for a buck-boost converter for switch off and switch on. The plots for inductor voltage Vl and inductor current iL are also shown. The average value of i, is denoted by I1, average output current is -l and average input current is ld. Similarly, the average value of u1 is denoted by V1, output voltage is-, and input DC voltage is Va. Time period of the switch is Ts 1/f and its duty cycle...
% peak to peak ripple in Vdc- 20% determine minimum capacitance at output of boost converter 3. consider forward con...
% peak to peak ripple in Vdc- 20%
determine minimum capacitance at output of boost converter
3. consider forward converter operating at 10khz with
the power in the table. the output voltage is 20v. the output
inductor is 90uh and turns ratio 1:1:1
I. operating mode?
ii. conduction loss in the forward converter switch if
switch resistance is 10milli ohm
Student #:- 2 125 Consider the following ACIDC folowed by a boost converner for active power factor correction, ana e...
Problems: 1) A buck-boost converter is supplied from a source with an equivalent impedance. The converter...
Problems: 1) A buck-boost converter is supplied from a source with an equivalent impedance. The converter can be considered ideal and represented as a transformer as seen in the circuit below. a) Calculate the duty cycle for maximum output voltage and the maximum output voltage. b) Plot the output voltage as a function of duty cycle to verify part a) 2.5 Ω , 20 V 75 Ω 1:M(D); Ideal Buck-Boost Converter Equivalent
Problem 1: (40 points) A boost converter based power factor correction circuit needs to operate with...
Problem 1: (40 points) A boost converter based power factor correction circuit needs to operate with universal input voltage, i.e the input voltage can be either 120V (RMS)+/- 10% at 60 Hz or 240 V(RMS) +/- 10% at 50 Hz. The output voltage is regulated at 400 V DC and the maximum (average) output power is 1kW. The switching frequency is 200 kHz. (a) Calculate the value of inductance needed to keep its peak peak ripple current to be less...
Power Electronics and Drive Systems a) A boost converter is required to have an output voltage of 8 V and supply a l...
Power Electronics and Drive Systems
a) A boost converter is required to have an output voltage of 8 V and supply a load current of 1 A. The input voltage varies from 2.7 to 4.2 V. A control circuit adjusts the duty ratio to keep the output voltage constant. Select the switching frequency. Determine a value for the inductor such that the variation in inductor current is not more than 40 percent of the average inductor current for all operating...
Q5. 5.a. Sketch the circuit arrangement of a DC-DC boost (step up) converter, clearly labelling each circuit element [4 тarks] [Refer to lecture notes] Sketch all significant operating waveforms for this converter for continuous conduction conditions over two switching periods, in particular showing 5.b. the voltage across the main switching device and the boost diode. [2 marks the voltage across the inductor [3 тarks] the current flowing through the inductor [3 marks [Refer to lecture notes] 5.c. The DC-DC boost...
3. a) Consider a boost converter shown in the figure below. Briefly explain the principle of operation of the circuit as a step-up converter, ie, how the input voltage is stepped up and how energy transfer occurs from input to the output in each cycle. Find expressions for vi(l) when the switch is closed and when it is off. Sketch it for one eycle and find its average value, Vu. Find the relationship between input and output voltages by setting...
Please help in this question conserning the buck-boost
converter
4. a. Draw a buck-boost converter to be implemented with an IGBT and diode b. Suggest suitable component values if such a converter is to serve resistive loads between 15 W and 30 W with a constant 8 V output, when the converter's input can vary between 5 V and 12 V. The output peak-to-peak voltage ripple should be less than 5% of the output voltage. The converter should operate in...
Draw a well-labelled circuit diagram of a Buck-Boost converter and draw the equivalent circuit diagrams for its two modes of operation (no waveforms). Label all circuits. [30%] With the help of the circuits in 2(a)(i), explain the working of a Buck-Boost converter. [20%] (ii) (b) Consider the following single-phase, half-wave rectifier circuit that is used to charge a battery through a resistor R. GO v, = Vm sin ot = (i) Prove that the average value of the charging current...
Buck-Boost converter 6. Derive the relationship between the average input and output voltage for the buck-boost converter.
Following figure shows the circuit diagram for a buck-boost converter for switch off and switch on. The plots for inductor voltage Vl and inductor current iL are also shown. The average value of i, is denoted by I1, average output current is -l and average input current is ld. Similarly, the average value of u1 is denoted by V1, output voltage is-, and input DC voltage is Va. Time period of the switch is Ts 1/f and its duty cycle...
% peak to peak ripple in Vdc- 20%
determine minimum capacitance at output of boost converter
3. consider forward converter operating at 10khz with
the power in the table. the output voltage is 20v. the output
inductor is 90uh and turns ratio 1:1:1
I. operating mode?
ii. conduction loss in the forward converter switch if
switch resistance is 10milli ohm
Student #:- 2 125 Consider the following ACIDC folowed by a boost converner for active power factor correction, ana e...
Problems: 1) A buck-boost converter is supplied from a source with an equivalent impedance. The converter can be considered ideal and represented as a transformer as seen in the circuit below. a) Calculate the duty cycle for maximum output voltage and the maximum output voltage. b) Plot the output voltage as a function of duty cycle to verify part a) 2.5 Ω , 20 V 75 Ω 1:M(D); Ideal Buck-Boost Converter Equivalent
Problem 1: (40 points) A boost converter based power factor correction circuit needs to operate with universal input voltage, i.e the input voltage can be either 120V (RMS)+/- 10% at 60 Hz or 240 V(RMS) +/- 10% at 50 Hz. The output voltage is regulated at 400 V DC and the maximum (average) output power is 1kW. The switching frequency is 200 kHz. (a) Calculate the value of inductance needed to keep its peak peak ripple current to be less...
Power Electronics and Drive Systems
a) A boost converter is required to have an output voltage of 8 V and supply a load current of 1 A. The input voltage varies from 2.7 to 4.2 V. A control circuit adjusts the duty ratio to keep the output voltage constant. Select the switching frequency. Determine a value for the inductor such that the variation in inductor current is not more than 40 percent of the average inductor current for all operating...
