Design a steam power plant of 1 MW using a rankine cycle. Describe the rankine cycle...

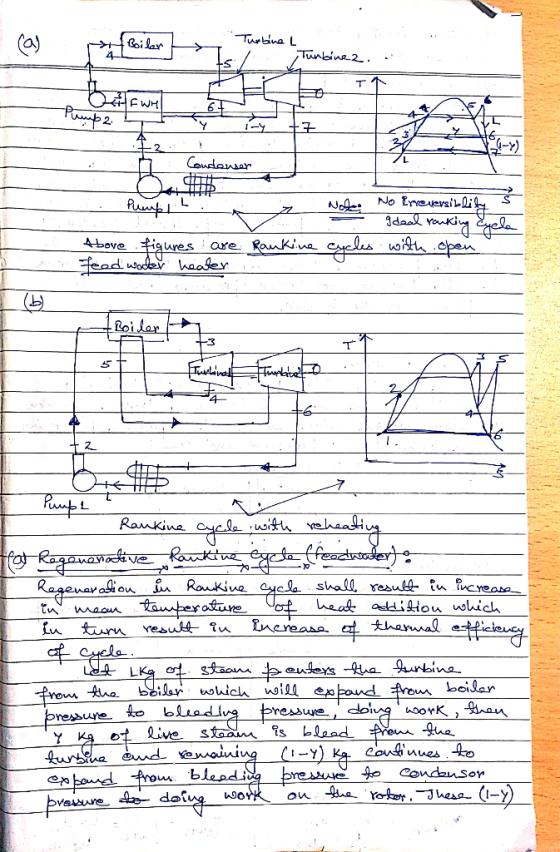

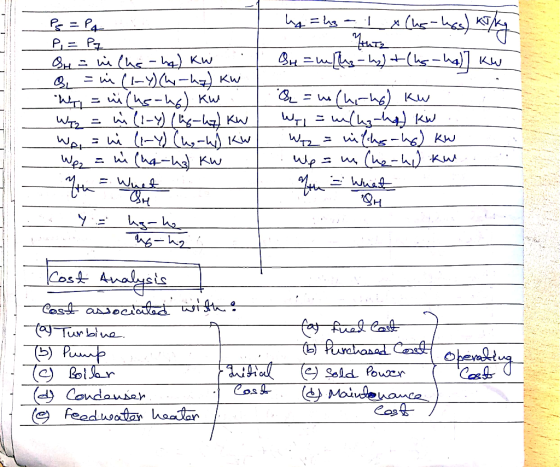

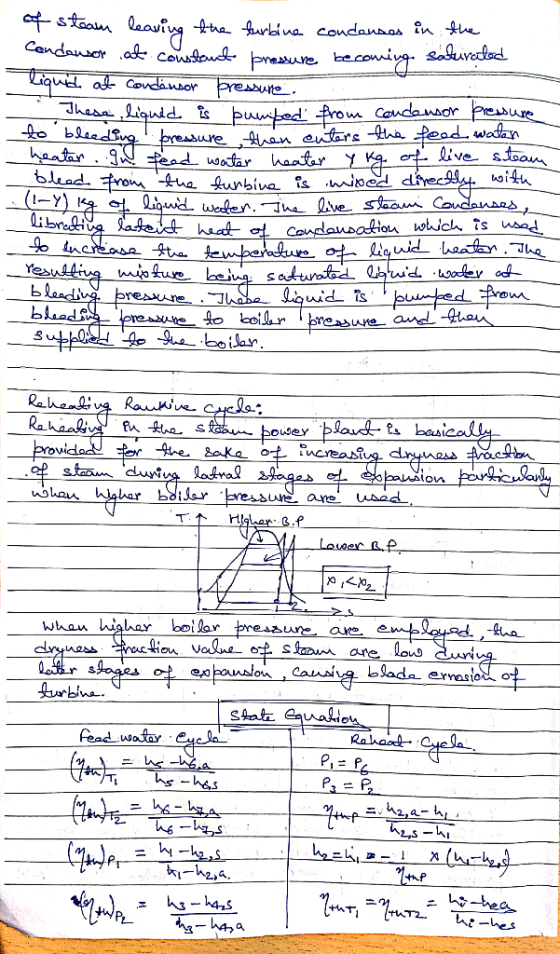

Design a steam power plant of 1 MW using a rankine cycle. Describe the rankine cycle with additional modifications e.g reheat, regeneration (feedwater) to improve efficient and it's T-S diagram. In your analysis, write down state equations and consider the losses associated with each component to calculate overall thermal efficiency. Also perform a cost analysis for all the equipment for a period of 10 years.
Homework Answers
Add Answer to:
Design a steam power plant of 1 MW using a rankine cycle.
Describe the rankine cycle...
a) A steam power plant operates on an ideal reheat-regenerative Rankine cycle. Steam enters the high-pressure...
a) A steam power plant operates on an ideal reheat-regenerative Rankine cycle. Steam enters the high-pressure turbine (HPT) at a pressure of 10 MPa and temperature of 550°C. The steam expands through the HPT stage to a pressure of 0.6 MPa. Some of the steam at the end of the expansion process in HPT is extracted for a regeneration process in a closed-type feedwater heater. The steam leaves the heater as a saturated liquid and then is throttled to the...
1. A Steam Power Plant that operates on an ideal regenerative Rankine Cycle with an open...
1. A Steam Power Plant that operates on an ideal regenerative Rankine Cycle with an open feedwater heater is considered. The turbine inlet conditions are 6 MPa, 450 C. The regeneration pressure is 0.4 MPa. The condenser pressure is 20 kPa. a) Draw the T-s diagram, and the sketch of the steam power plant. b) Calculate the low pressure pump work. c) Calculate the high pressure pump work. d) Calculate the fraction of the steam extracted from the turbine for...
A steam power plant operates on an ideal Rankine cycle with two stages of reheat and...
A steam power plant operates on an ideal Rankine cycle with two stages of reheat and has a net power output of 80 MW. Steam enters all three stages of the turbine at 600 oC. The maximum pressure in the cycle is 10 MPa, and the minimum pressure is 20 kPa. Steam is reheated at 4 MPa the first time and at 2 MPa the second time. Show the cycle on a T-s diagram with respect to saturation lines, an...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net...
Consider a steam power plant that operates on a reheat Rankine cycle and has a net power output of 80 MW. Steam enters the high-pressure turbine at 10 MPa and 550°C and the low-pressure turbine at 1 MPa and 550°C. Steam leaves the condenser as a saturated liquid at a pressure of 10 kPa. The isentropic efficiency of the turbine is 80 percent, and that of the pump is 95 percent. Show the cycle on a T-s diagram with respect...
2) Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam...
2) Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the quality of the steam at the turbine exit, (b) the thermal efficiency of the cycle, and (c) the mass flow rate of the steam.
A steam plant operates on a reheat Rankine cycle and has a net power output of...
A steam plant operates on a reheat Rankine cycle and has a net power output of 80MW. Steam enters the high pressure turbine at 10 MPa and 500 °C and the low pressure turbine at 1 MPa and 500 °C. Steam leaves the condenser as a saturated liquid at a pressure of 10kPa. The efficiency of the turbine is 80% and the efficiency of the pump is 95%. Determine the thermal efficiency of the cycle. Rankine Cycle with Reheat
A steam power plant operates on an ideal reheat Rankine cycle between the pressure limits of...
A steam power plant operates on an ideal reheat Rankine cycle between the pressure limits of 5 MPa and 100 kPa. The temperature of the steam att the turbine is 500 C degree and the mass flow rate of steam through the cycle is 35 kg/s. a) Determine the thermal efficiency of the cycle. b) determine the net power output of the power plant ( Assume both the turbine and the pump have isentropic efficiency of 100%). c) Draw the...
Problem 10.3: Consider a 300-MW steam power plant that operates on a simple ideal Rankine cycle....
Problem 10.3: Consider a 300-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the quality of the steam at the turbine exit, (b) the thermal efficiency of the cycle, and (c) the mass flow rate of the steam.
Consider a steam power plant that operates on an ideal reheat–regenerative Rankine cycle with one open...
Consider a steam power plant that operates on an ideal reheat–regenerative Rankine cycle with one open feedwater heater, one closed feedwater heater, and one reheater. Steam enters the turbine at 10MPa and 550C and is con- densed in the condenser at a pressure of 10 kPa. Some steam is extracted from the turbine at 4 MPa for the closed feedwater heater, and the remain- ing steam is reheated at the same pressure to 550C. The extracted steam is completely condensed...
A steam power plant operates on an ideal Rankine cycle with two stages of reheat and...
A steam power plant operates on an ideal Rankine cycle with two stages of reheat and has a net power output of124.5 MW. Steam maximum pressure in the cycle is15 MPa, and the minimum pressure is 5 kPa. Steam is reheated at 5 MPa the first time and at 1 MPa the second time. Determine (a) the thermal efficiency of the cycle enters all three stages of the turbine at 500C. The 0/o and (b) the mass flow rate of...
a) A steam power plant operates on an ideal reheat-regenerative Rankine cycle. Steam enters the high-pressure turbine (HPT) at a pressure of 10 MPa and temperature of 550°C. The steam expands through the HPT stage to a pressure of 0.6 MPa. Some of the steam at the end of the expansion process in HPT is extracted for a regeneration process in a closed-type feedwater heater. The steam leaves the heater as a saturated liquid and then is throttled to the...
1. A Steam Power Plant that operates on an ideal regenerative Rankine Cycle with an open feedwater heater is considered. The turbine inlet conditions are 6 MPa, 450 C. The regeneration pressure is 0.4 MPa. The condenser pressure is 20 kPa. a) Draw the T-s diagram, and the sketch of the steam power plant. b) Calculate the low pressure pump work. c) Calculate the high pressure pump work. d) Calculate the fraction of the steam extracted from the turbine for...
2) Consider a 210-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the quality of the steam at the turbine exit, (b) the thermal efficiency of the cycle, and (c) the mass flow rate of the steam.
A steam plant operates on a reheat Rankine cycle and has a net power output of 80MW. Steam enters the high pressure turbine at 10 MPa and 500 °C and the low pressure turbine at 1 MPa and 500 °C. Steam leaves the condenser as a saturated liquid at a pressure of 10kPa. The efficiency of the turbine is 80% and the efficiency of the pump is 95%. Determine the thermal efficiency of the cycle. Rankine Cycle with Reheat
Problem 10.3: Consider a 300-MW steam power plant that operates on a simple ideal Rankine cycle. Steam enters the turbine at 10 MPa and 500°C and is cooled in the condenser at a pressure of 10 kPa. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the quality of the steam at the turbine exit, (b) the thermal efficiency of the cycle, and (c) the mass flow rate of the steam.
A steam power plant operates on an ideal Rankine cycle with two stages of reheat and has a net power output of124.5 MW. Steam maximum pressure in the cycle is15 MPa, and the minimum pressure is 5 kPa. Steam is reheated at 5 MPa the first time and at 1 MPa the second time. Determine (a) the thermal efficiency of the cycle enters all three stages of the turbine at 500C. The 0/o and (b) the mass flow rate of...
