An equal-tangent crest vertical curve has a 50-mi/h design speed. The initial grade is +3%. The...

An equal-tangent crest vertical curve has a 50-mi/h design speed. The initial grade is +3%. The high point is at station 33 + 40.76 and the PVT is at station 37 + 24.66. What is the elevation difference between the high point and the PVT?

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

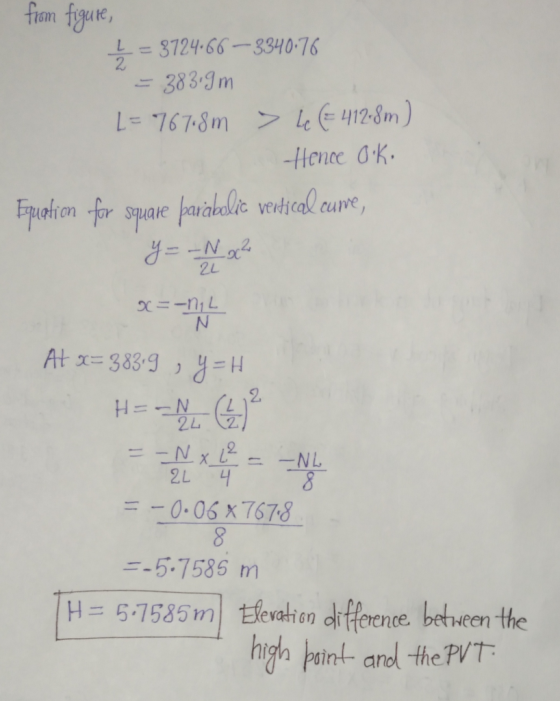

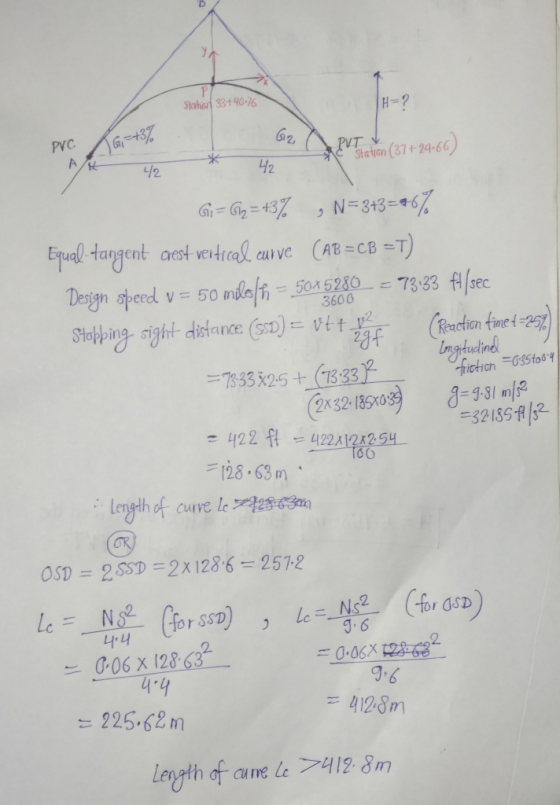

Answer #1

0 0
Add a comment
