A 10 Ω resistor is connected to four 1.5-Vbatteries. A) What is the joule heat loss...

Question

Question

A 10 Ω resistor is connected to four 1.5-Vbatteries.

A) What is the joule heat loss per minute in the resistor if the batteries are connected in series?

Express your answer using two significant figures.

B) What is the joule heat loss per minute in the resistor if the batteries are connected in parallel?

Express your answer using two significant figures.

science physics

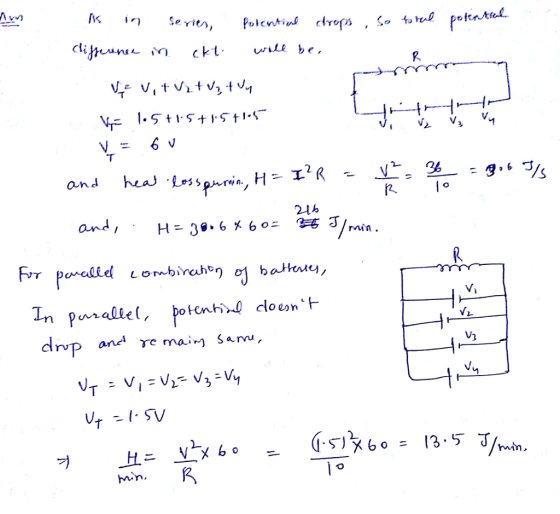

Answer 1

Answer #1

Answer 2
