A 36 Ω resistor is connected to four 1.5-Vbatteries. Part A What is the joule heat...

Question

Question

A 36 Ω resistor is connected to four 1.5-Vbatteries.

Part A

What is the joule heat loss per minute in the resistor if the batteries are connected in series?

Express your answer using two significant figures.

Eseries=?J

science physics

Answer 1

Answer #1

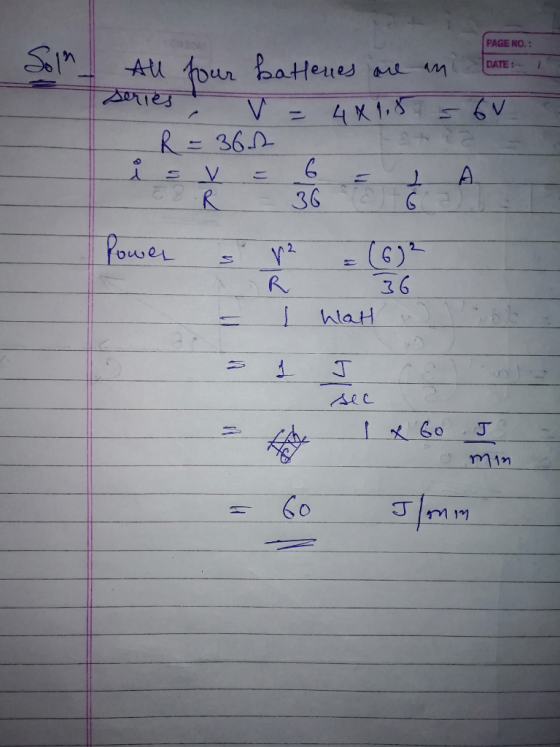

PAGE NO. aHeues mDATE -36.0 36 u 01 6 ) 3 6 1X60 丁 min 6o
