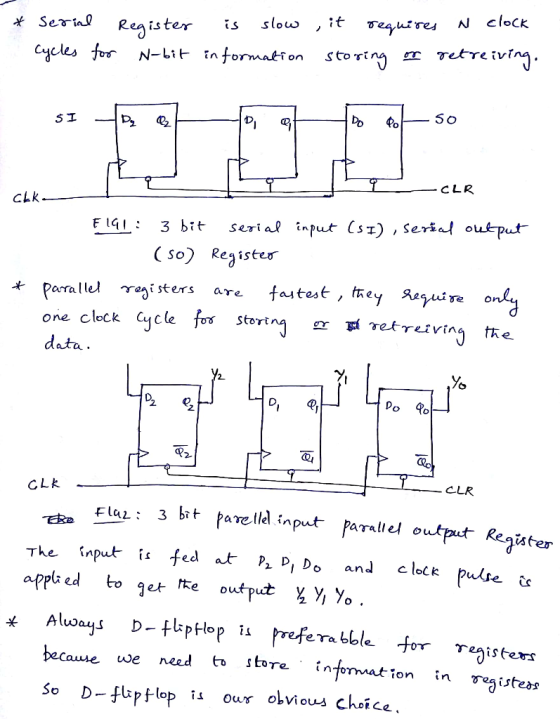

- What is the difference between serial and parallel registers? and What types of flip-flops are preferable for serial registers? why?

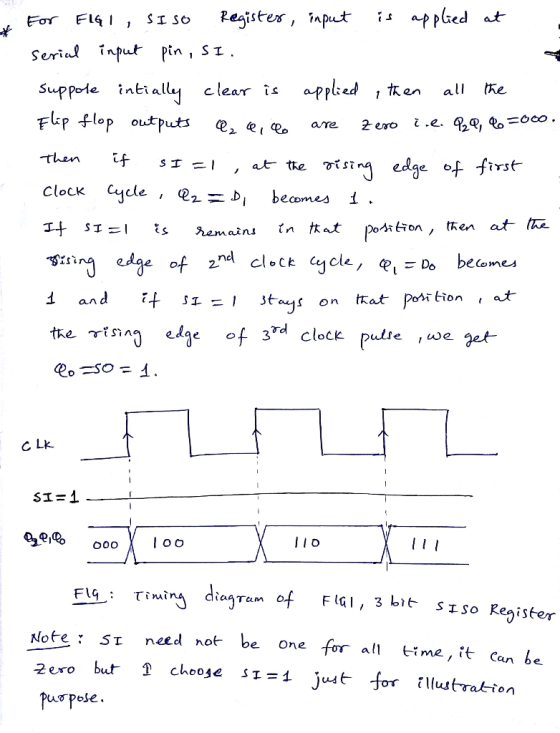

- Explain the operation of the serial 3 bit register and draw its timing diagrams.
- What is the difference between serial and parallel registers? and What types of flip-flops are...
Exercise 3. [10 Marks Draw a 4-bit Serial In, Serial Out register using SR flip-flops. For example, the below diagram represents a Parallel In, Parallel Out n-bit register using ID flip-flops. dn-i dn-i do CLK
5. REVIEW QUESTIONS 1. Can S-R latches be used to create D Flip-Flops? If so, how? 2. What is the difference between the Serial-In Serial-Out, Serial-In Parallel-Out, Parallel-In Serial-Out, and Parallel-In Parallel-Out Shift Registers? 3. How many Shift Register stages are required to store a 16-Bit Binary Number? 4. What devices would you use to interface a 16-Bit Binary Number to a Serial-In Serial-Out Shift Register at the Input and Output of the Register?
Design a 3- bit Multipurpose Register. The register utilizes 3 "D" type flip flops with outputs Q0, Q1, Q2. The Registers has a synchronous clock input(CLK) that clocks all 3 flip flops on its positive edge The Registers has an asynchronous clear input(CLR' ) that sets all flip flops to "0" when active low. The Register has 2 select inputs, S0 and S1 that selects the functions as folows: S1 = 0, 0, 1, 1 and S0 = 0,1,0,1 and...
3 Theory A shift register is a series of flip-flops connected so that data can be transferred to a neighbor each time the clock pulse is active. An example is the display on your calculator. As numbers are entered on the keypad, the previously entered numbers are shifted to the left. Shift registers can be made to shift data to the left, to the right, or in either direction (bi-directional), using a control signal. They can be made from either...
At this point in your Digital Logic career, an assignment comes where you need to put all your knowledge of J-K flip-flops, counters and shift registers together and design, build and test a circuit that will detect a "101" pattern in a serial bit stream and output a HIGH level coincident with the final "1" in the pattern, Using A Qty. of 2, J-K Flip-Flops 1) Create a State diagram defining the operational states of your pattern detector 2) Draw a schematic...
Explain about n bit Serial in Parallel Out Shift registers with a neat circuit diagram and discuss in detail about the data movements in SIPO Shift register.
2. Serial shift registers Draw missing connections to implement various shift registers 1. Shift right: All bits of the register move right by one position, and a new bit value from a serial input is stored in the most significant bit (leftmost flip-flop below). Serial input -02 az 02 a Do ao Serial indino 2. Shift left: All bits of the register move left by one position, and a new bit value from a serial input is stored in the...
a) (5 marks) Explain the difference between a latch, a gated latch and a flip flop. b) (5 marks) A gated SR latch has the following schematic diagram CLK a) Draw a timing diagram showing the Q and Q outputs for the following sequence of inputs: CLK R Assume that the initial state of the outputs is Q 0 and Q 1 c) (5 marks) Draw a schematic diagram for a rising edge-triggered master-slave D flip- flop built using two...
I need help putting this serial adder block diagram
into multisim software
I ELE230L Digital Systems Design Laboratory Lab9 - Serial Adder Vaughn College of Aeronautics and Technology Number of Lab Session (Week): 2 1 Discussion The purpose of this lab is to design, simulate, and implement a 4-bit serial adder SADD. A block diagram is shown below. The SADD has two int bit FA with a carry-hold flip-flop. Its input is a 4-bit data input (D-Do), a rising edge...
Problem 4: Design a 2 bit register whose operation is controlled by the signals C1 and C2 as follows: (Use D- Flip Flops) Y2 Y1 C 2-Bit Register Clock SD PD1 PD2 Y1 Y2+ Operation Hold C1 C2 Y2 Y1 0 10 Shift Right Y1 SD 1 0 SD Y2 Shift Left PD2 PD1 Parallel Load 1 SD: Serial Data input PD1 PD2: Parallel Data input
Problem 4: Design a 2 bit register whose operation is controlled by the signals...
