Explain the difference in performance of a wind turbine if it (a) operates at a constant...

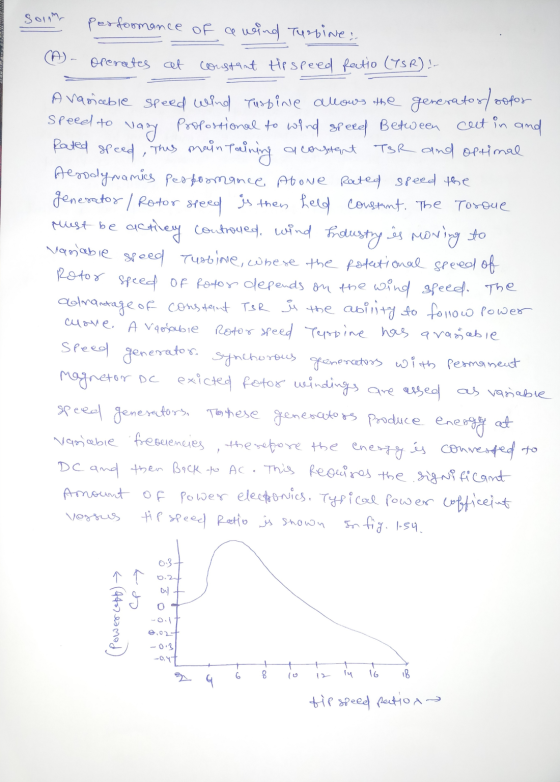

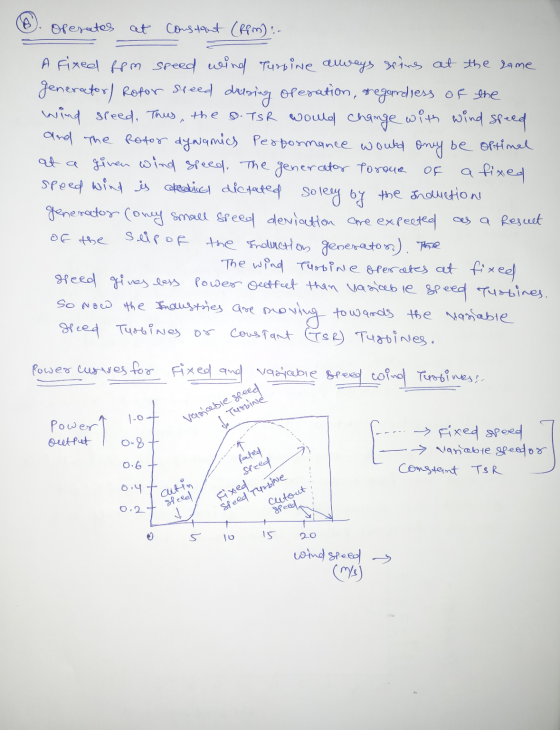

Explain the difference in performance of a wind turbine if it (a) operates at a constant tip speed ratio; and (b) operates at constant rpm.

Thank you in advance!

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Explain the difference in performance of a wind turbine if it (a) operates at a constant...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • s: A wind turbine operates under the fol... A wind turbine operates under the following conditions...

    s: A wind turbine operates under the fol... A wind turbine operates under the following conditions Wind speed-8.6 m's Rotor coefficient of performance Cp-04 Blade length -4m Angular speed- 175 rpm Density of air- 1.23 kg m Transmission efficiency of Ntr-70%% Generator efficiency Ng-95% Determine the followings and Do not put units in your answer and all numerical values up to 2 decimal places. X]-The blades tip speed in m's [Y]-The Tip Speed Ratio (TSR) [z)-Swept rotor area "A" in...

  • Wind Energy a) Explain how an induction machine can be configured as DFIG to generate electricity...

    Wind Energy a) Explain how an induction machine can be configured as DFIG to generate electricity b) With the aid of a sketch, explain the total losses of a DFIG, a ASG and a FSG asa function of wind-speed. c) For a 750kW wind turbine with a required generator rotor speed of 2200rpm, a blade length of 45m operating in 14m/s wind, and a TSR of 3.5, calculate (i) the blade rpm, (ii) the blade tip speed, (iii) the required...

  • Question 30 6 points Save Answer (LO4) A wind turbine with a 40-m-diameter rotor is rotating...

    Question 30 6 points Save Answer (LO4) A wind turbine with a 40-m-diameter rotor is rotating at 21 rpm under steady winds at an average velocity of 14.7 m/s. The electrical power output from the generator is 350 kW. The efficiency of the gearbox is 93% and generator efficiency is 86%. Take the density of air to be 1.013 kg/m. Answer the following questions; use the white paper to work-out your calculations and then choose the correct answer from the...

  • The blades on the wind turbine are turning with an angular speed of ωo = 30...

    The blades on the wind turbine are turning with an angular speed of ωo = 30 rpm in the clockwise direction. If the blade length is L = 36.6 m and they are given a constant angular acceleration of α= 0.2 rad/s2 in the clockwise direction, determine: (a) the angular velocity and (b) the magnitude of the acceleration of point A on the tip of the blade when t = 3 minutes.

  • Consider a 1 MW, 50 m diameter horizontal axis, fixed wind turbine operating at a wind...

    Consider a 1 MW, 50 m diameter horizontal axis, fixed wind turbine operating at a wind speed of 12 m/s. 3 blades mounted on a cast iron hub drive a generator through a gearbox of overall ratio 1:50. The induction generated is connected directly to the 60 Hz network and keeps the high speed shaft at 1500 RPM. Ignoring all other loses, calculate CP, lamda, rotor tip speed, and torque on low and high sides of the shaft.

  • 8 blade turbine ,a wind speed of 36 km/h to pump water at the rate of...

    8 blade turbine ,a wind speed of 36 km/h to pump water at the rate of 6m3/h, with a lift of 6m, efficiency pump 50% and efficiency rotor to the pump 80% , power coefficient 0.3 and the tip speed ratio is 1.0.Density of water 1000kg/m3, air 1.2kg/m3 and g = 9.81 m/s2. 1= the radius of the rotor (m) 2= the rotational speed of the rotor( rpm)

  • the power coefficient of a wind turbine having a rotational speed of 2.1 rad/sec. Assume the...

    the power coefficient of a wind turbine having a rotational speed of 2.1 rad/sec. Assume the wind velocity is 12 m/s, the tip speed ratio 7.45, the air density 1.21 kg/m3 and the mechanical power extracted by wind turbine 2.5 MW?

  • If a wind turbine that is rotating at 15 rpm, and has rotor radius of 165...

    If a wind turbine that is rotating at 15 rpm, and has rotor radius of 165 ft, what is the velocity at the tip of the blade, in mph?

  • 1. Increasing the diameter of turbine blade 3 times power of turbine will 2. Maximum possible...

    1. Increasing the diameter of turbine blade 3 times power of turbine will 2. Maximum possible efficiency of a wind turbine i 3. A taller wind turbine gives higher power because at higher altitude A) Increase 2 times 1B) decrease 4 times C) incrense 8 times D) Increase 9 tinves As A)39% B) 49% C)50% D) 90% Ans A) Density of air is higher B) air velocity of higher C) air pressure is higher D) air temperature is higher Anst...

  • a wind turbine has blades 30 meters in length. the blades of thr turbine roate at...

    a wind turbine has blades 30 meters in length. the blades of thr turbine roate at .3 revs what js the tangential speed of the tip of the blades and a point half way to the tip of the blades
