A stationary particle of charge q = 2.9 × 10-8 C is placed in a laser...
A stationary particle of charge q = 2.9 × 10-8 C is placed in a laser beam (an electromagnetic wave) whose intensity is 2.4 × 103 W/m2. Determine the maximum magnitude of the (a) electric and (b) magnetic forces exerted on the charge. If the charge is moving at a speed of 3.7 × 104 m/s perpendicular to the magnetic field of the electromagnetic wave, find the maximum magnitudes of the (c) electric and (d) magnetic forces exerted on the particle.

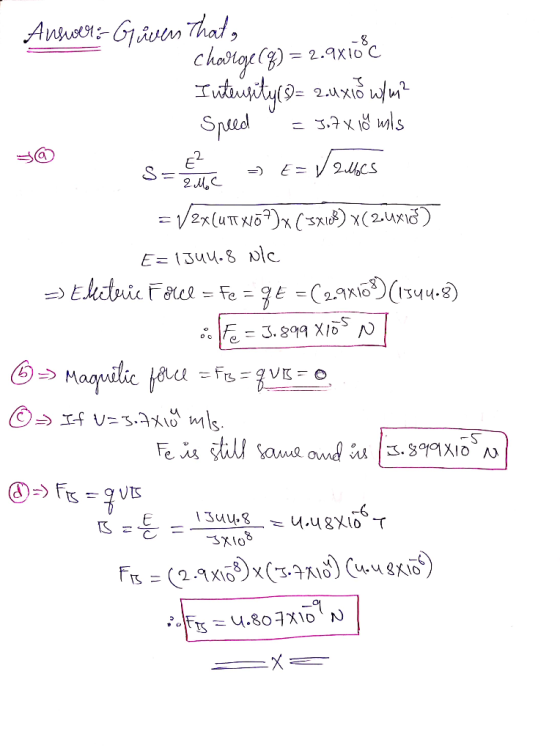

Homework Answers
This
may helps you.Add Answer to:
A stationary particle of charge q = 2.9 × 10-8 C is placed in a
laser...
A stationary particle of charge q = 2.2 × 10-8 C is placed in a laser...
A stationary particle of charge q = 2.2 × 10-8 C is placed in a laser beam (an electromagnetic wave) whose intensity is 2.0 × 103 W/m2. Determine the maximum magnitude of the (a) electric and (b) magnetic forces exerted on the charge. If the charge is moving at a speed of 3.7 × 104 m/s perpendicular to the magnetic field of the electromagnetic wave, find the maximum magnitudes of the (c) electric and (d) magnetic forces exerted on the...
A stationary particle of charge q = 2.3 times 10^-8 C is placed in a laser...
A stationary particle of charge q = 2.3 times 10^-8 C is placed in a laser beam (an electromagnetic wave) whose intensity is 3.0 times 10^3 W/m^2. Determine the maximum magnitude of the (a) electric and (b) magnetic forces exerted on the charge. If the charge is moving at a speed of 3.7 times 10^4 m/s perpendicular to the magnetic field of the electromagnetic wave, find the maximum magnitudes of the (c) electric and (d) magnetic forces exerted on the...
A particle with a charge of -1.23 × 10-8 C is moving with instantaneous velocity =...
A particle with a charge of -1.23 × 10-8 C
is moving with instantaneous velocity
= (4.27 × 104 m/s)
+ (-3.79 × 104 m/s).
What is the magnitude of the force exerted on this particle by
magnetic field
= (1.32 T)?
(Give your answer in scientific notation using "N" as unit)
A particle has a charge of q = +5.1 ?C and is located at the origin....
A particle has a charge of q = +5.1 ?C and is located
at the origin. As the drawing shows, an electric field of
Ex = +232 N/C exists along the +x
axis. A magnetic field also exists, and its x and
ycomponents are Bx = +1.5 T and
By = +1.0 T. Calculate the force (magnitude and
direction) exerted on the particle by each of the three fields when
it is (a) stationary, (b) moving
along the +x axis...
A particle with a charge of -1.15 × 10-8 C is moving with instantaneous velocity v...
A particle with a charge of -1.15 × 10-8 C is moving with instantaneous velocity v with rightwards arrow on top = (4.14 × 104 m/s)i with hat on top + (-3.83 × 104 m/s)j with hat on top. What is the magnitude of the force exerted on this particle by magnetic field B with rightwards arrow on top = (1.34 T)k with hat on top? (Give your answer in scientific notation using "N" as unit)
A particle has a charge of q = +4.7 μC and is located at the origin....
A particle has a charge of q = +4.7 μC and is located at the origin. As the drawing shows, an electric field of Ex = +232 N/C exists along the +x axis. A magnetic field also exists, and its x and y components are Bx = +1.7 T and By = +1.6 T. Calculate the force (magnitude and direction) exerted on the particle by each of the three fields when it is (a) stationary, (b) moving along the +x...
A particle with a charge of -2.30 x 10^-8 c is moving with an instantaneous velocity...
A particle with a charge of -2.30 x 10^-8 c is moving with an instantaneous velocity of magnitude 39.5 km/s in the x-y plane at an angle of 55 degrees counterclockwise fromthe + x axis. A. what is the direction of the force exerted on this particle by a magnetic field with magnitude 2.00 T in the -x direction. B. what is the magnitude of the force exerted on this particle by a magnetic field with magnitude 2.00 T in...
A particle has a charge of q = +5.5 pC and is located at the origin....
A particle has a charge of q = +5.5 pC and is located at the origin. As the drawing shows, an electric field of Ex-+214 N/C exists along the +χ axis. A magnetic field also exists, and its χ and y components are B*-+1.3 T and By +1.9 T. Calculate the force (magnitude and direction) exerted on the particle by each of the three fields when it is (a) stationary, (b) moving along the +χ axis at a speed of...
Particle A of charge 2.85 × 10-4 C is at the origin, particle B of charge-5.94...
Particle A of charge 2.85 × 10-4 C is at the origin, particle B of charge-5.94 x 10-4 C ls at (4.00 m, 0), and particle C of charge 1.03 x 104 C is at (O, 3.00 m). We wish to find the net electric force on C | (a) What is the x component of the electric force exerted by A on C? (b) What is the y component of the force exerted by A on C? (c) Find...
A particle with a charge of-2.50 X 10-8 C is moving with an instantaneous velocity of...
A particle with a charge of-2.50 X 10-8 C is moving with an instantaneous velocity of magnitude 40.0 km/s in the xy- plane at an angle of 50° counterclockwise from the +x axis. What are the magnitude and direction of the force exerted on this particle by a magnetic field with magnitude 2.00 T in the (a) -x direction, and (b) +z direction?
A stationary particle of charge q = 2.3 times 10^-8 C is placed in a laser beam (an electromagnetic wave) whose intensity is 3.0 times 10^3 W/m^2. Determine the maximum magnitude of the (a) electric and (b) magnetic forces exerted on the charge. If the charge is moving at a speed of 3.7 times 10^4 m/s perpendicular to the magnetic field of the electromagnetic wave, find the maximum magnitudes of the (c) electric and (d) magnetic forces exerted on the...
A particle with a charge of -1.23 × 10-8 C
is moving with instantaneous velocity
= (4.27 × 104 m/s)
+ (-3.79 × 104 m/s).
What is the magnitude of the force exerted on this particle by
magnetic field
= (1.32 T)?
(Give your answer in scientific notation using "N" as unit)
A particle has a charge of q = +5.1 ?C and is located
at the origin. As the drawing shows, an electric field of
Ex = +232 N/C exists along the +x
axis. A magnetic field also exists, and its x and
ycomponents are Bx = +1.5 T and
By = +1.0 T. Calculate the force (magnitude and
direction) exerted on the particle by each of the three fields when
it is (a) stationary, (b) moving
along the +x axis...
A particle has a charge of q = +5.5 pC and is located at the origin. As the drawing shows, an electric field of Ex-+214 N/C exists along the +χ axis. A magnetic field also exists, and its χ and y components are B*-+1.3 T and By +1.9 T. Calculate the force (magnitude and direction) exerted on the particle by each of the three fields when it is (a) stationary, (b) moving along the +χ axis at a speed of...
Particle A of charge 2.85 × 10-4 C is at the origin, particle B of charge-5.94 x 10-4 C ls at (4.00 m, 0), and particle C of charge 1.03 x 104 C is at (O, 3.00 m). We wish to find the net electric force on C | (a) What is the x component of the electric force exerted by A on C? (b) What is the y component of the force exerted by A on C? (c) Find...
A particle with a charge of-2.50 X 10-8 C is moving with an instantaneous velocity of magnitude 40.0 km/s in the xy- plane at an angle of 50° counterclockwise from the +x axis. What are the magnitude and direction of the force exerted on this particle by a magnetic field with magnitude 2.00 T in the (a) -x direction, and (b) +z direction?
