Question

Create graphics that best illustrate this Ontario Building Code Reference. Use imperial dimensions only. Indicate all the dimensions and labels on the graphics if applicable.

9.23.5.2.  Notching of Framing Members

    (1)  Floor, roof and ceiling framing members are permitted to be notched provided the notch is located on the top of the member within half the joist depth from the edge of bearing and is not deeper than one-third the joist depth, unless the depth of the member is increased by the size of the notch.

Answer 1

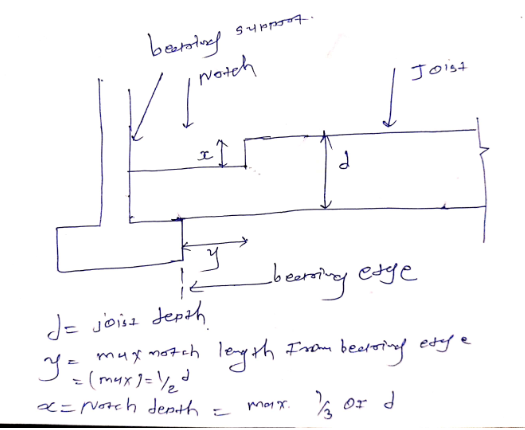

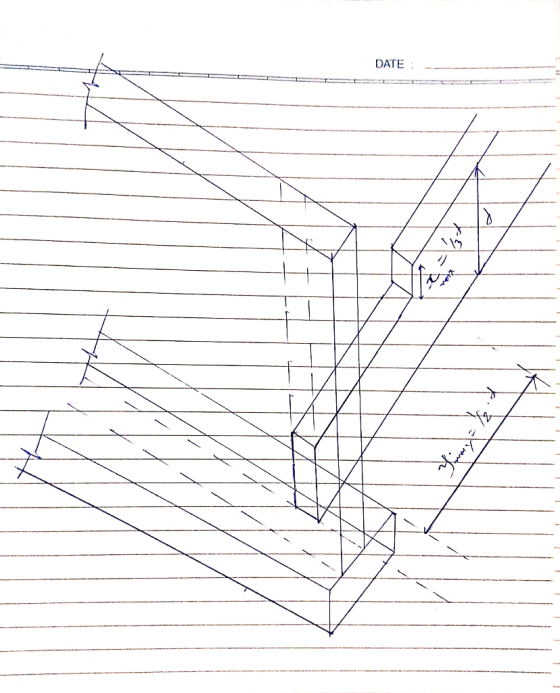

berated Support JOSH I Notch e beening edge da joist depth = max notch length from beakting exfe =(max=%d a=Notch death = max. ford
