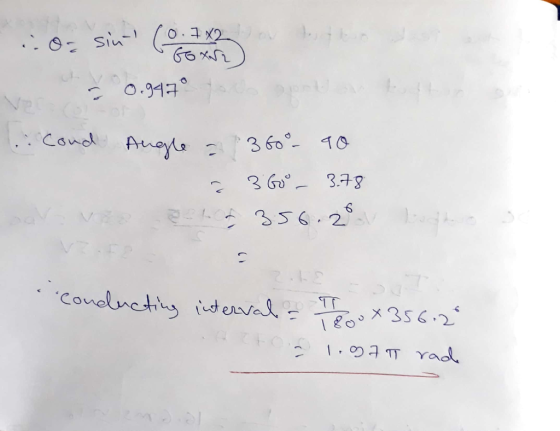

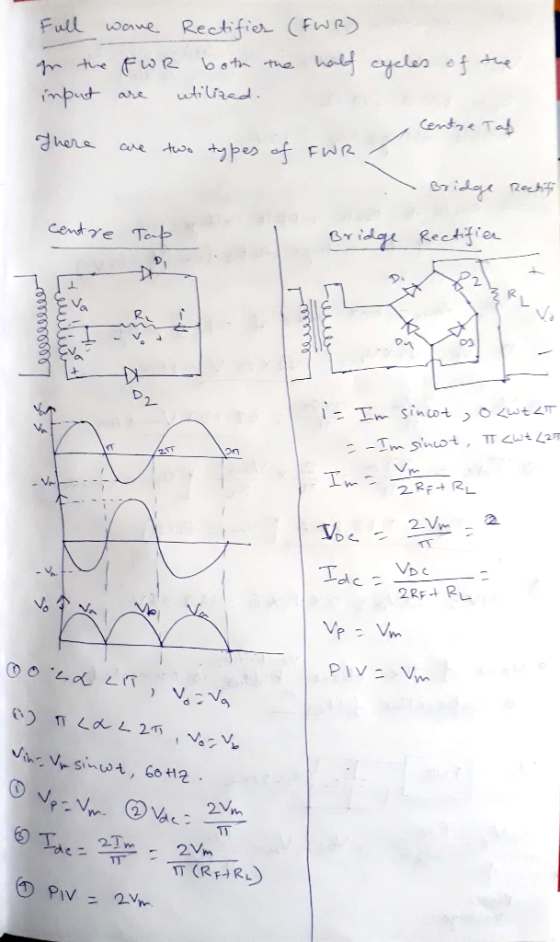

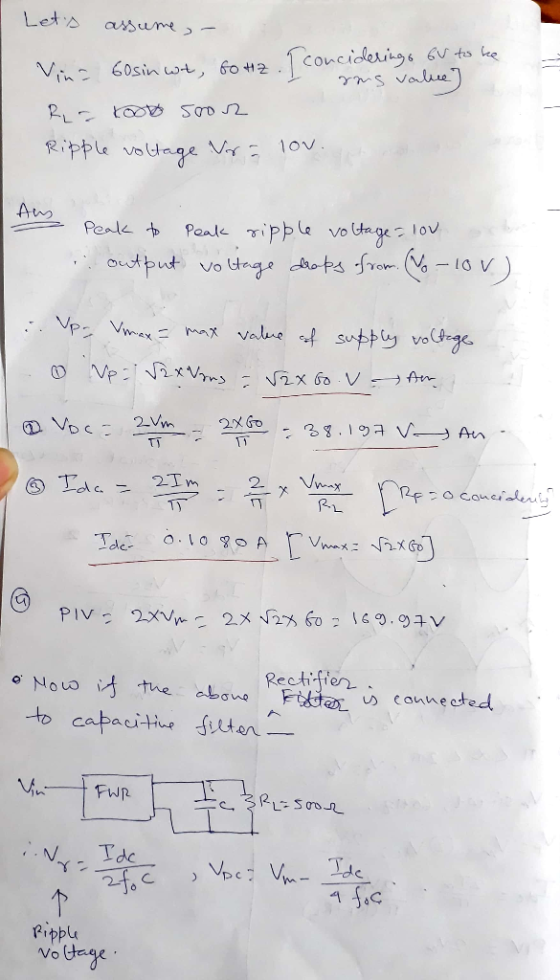

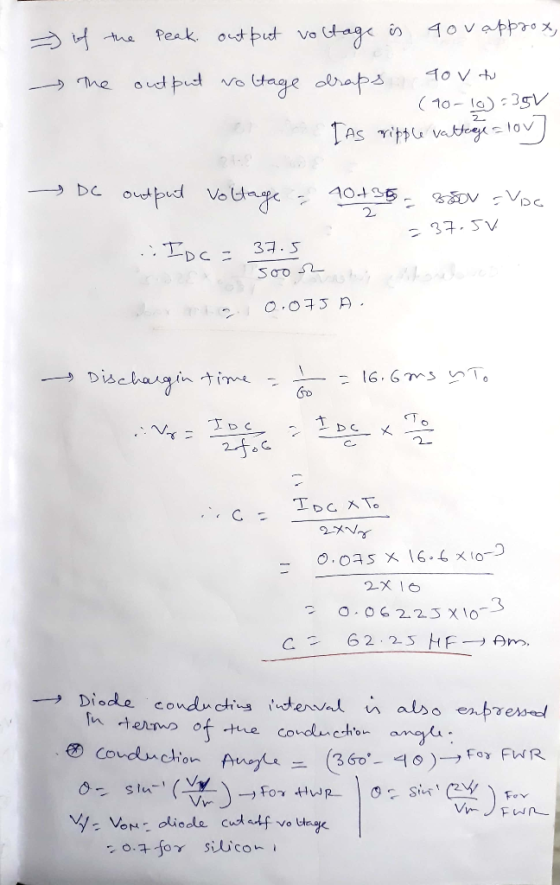

For your choice of input voltage, load resistor and the value of the ripple voltage (as percent of Vdc) design a circuit for the Full-wave rectifier in multisim. Assuming the value of Von for the diode, calculate theoretically all parameters of the rectifier: Vp, Vdc, Idc, C, Isc, PIV and diode conducting interval.
For your choice of input voltage, load resistor and the value of the ripple voltage (as...
For your choice of input voltage, load resistor and the value of the ripple voltage (as percent of Vdc) design a circuit for the half-wave rectifier. Assuming the value of Van for the diode, calculate theoretically all parameters of the rectifier: Vp, Vdc, Idc, C, Isc, PIV and diode conducting interval. Simulate the designed circuit first without the capacitor filter and show on the graphs of the input, output and diode voltages and load and diode currents. Show on the...
4. The half-wave rectifier in Fig. P3.94 is operating with an input voltage, V = 10 sinat,at a frequency of 60 Hz and Von=1V. (25 points) C D Les = Figure P3.94 a. Draw the output voltage (Vo(t)) waveform. b. What is the minimum value of C required to maintain the ripple voltage to less than 0.25V if R=0.5 Q and the diode voltage drop is 1V? c. What is the PIV rating of the diode in this circuit? d....
unfiltered full wave rectifier
Find average DC output voltage supplied to the
load
Find ripple factor
Find average VDC output voltage supplied to the load
er. D1 T1 VPR Load 120V D2 120V: 36 VCT
er. D1 T1 VPR Load 120V D2 120V: 36 VCT
1.Using LTSpice, design a full-wave rectifier (see your textbook) for an input voltage of 120 Vrms (AC) and an output voltage of 20 V DC. Its design must include a transformer, a diode bridge (4 diodes 1N4001), a load RL = 510 Ω and a capacitor (filter) of 470 μF in parallel with the load. 2.Graph the voltages vL and vD (in LTSpice0, and determine the variation (“ripple”).
VOLTAGE-DIVIDER BIAS 179 CONFIGURATION h determined in Example 4.7. Essentially, exact and approximate techniques is the ten the 07 step down transformer and a load RL of 820 ohms. It is connected to an ac source of 100 VAC rms, 50 Hz. (hint: note the rms values, and for diode PIV, assume ideal diodes and draw the PIV eqv ckts) ve rectifier circuit has a 10:1 3. A positive output, a. Draw this circuit.. b. Find Vp and Vave at...
2. In the following circuit, v, 20 Vrms (rms value). a) Determine the value of capacitor needed to provide filtering so that the voltage does not drop below 26 V. The load resistance Rioad may vary from 1.5 kQ to 2.5 kQ. Assume the diode is ideal (VON 0 V). b) Sketch v, and the output vout waveforms. c) The filter capacitor often represents a significant economic factor in terms of cost, size, and weight in the design of rectifier...
D *4.80 It is required to use a peak rectifier to design a de power supply that provides an average de output voltage of 12 V on which a maximum of ±1-V ripple is allowed. The rectifier feeds a load of 200 2. The rectifier is fed from the line voltage (120 V rms, 60 Hz) through a transformer. The diodes available have 0.7-V drop when conducting. If the designer opts for the half-wave circuit: (a) Specify the rms voltage...
part g
Q4. Most electronic systems need a dc voltage to work properly. The AC-to-DC power supply system is including a transformer, a rectifier and a capacitor input filter. The AC input voltage is 110 Vrms at 60 Hz. (a) Draw the full wave bridge rectifier circuit with transformer which steps down voltage to safer and lower levels that are more suitable for use with diodes (b) Show how the capacitor input filter connects to the rectifier output in the...
please explain
Name(s): the ripple voltage for the cir i) Approximate formulas for the peak rectifier (e.g., see the textbook). Assume the 0.7V diode; (ii) Transient simulation using Multisim with the IN5393GP diode. Show the output voltage plot. The circuit consists of a 5uF capacitor, IkOhm resistor, diode, and source. The source voltage is a periodic triangular waveform with the 10V amplitude, zero DC offset, the 1 ms period and the 0.5 ms rise/fall time
Given an input voltage of 120VAC (RMS) +/- 1% mains voltage with 60 Hz frequency (plugged into your wall), design a rectifier circuit that outputs +9V and -5V (account for diode voltage drop). The output voltages should be within +/- 5% of their specification (including peak-peak voltage ripple) with a load of up to 40 mA on the +9V supply and 20 mA on the -5V supply. (6 points) Show circuit diagram of design. For transformer, simply specify turns ratio(s)....
