An infinite plane has a uniform surface charge distribution u on its surface. Adjacent to it...

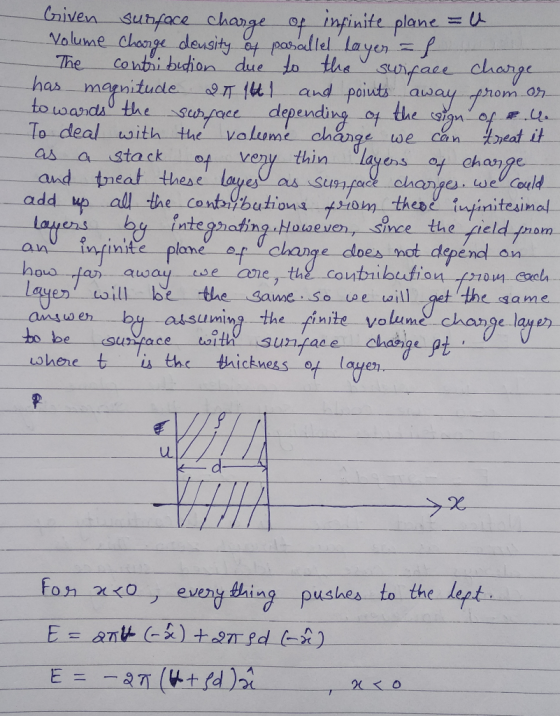

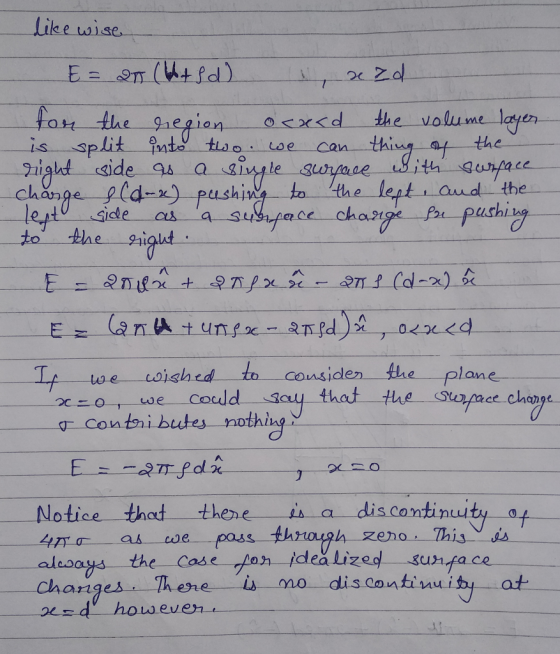

An infinite plane has a uniform surface charge distribution u on its surface. Adjacent to it is an infinite parallel layer of charge of thickness d and uniform volume charge density p. All charges are fixed. Find E everywhere.
(Please work in cgs if possible)
Homework Answers
Add Answer to:
An infinite plane has a uniform surface charge distribution u on
its surface. Adjacent to it...
6, (10 points) An infinite plane has a uniform surface charge density σ on its surface....
6, (10 points) An infinite plane has a uniform surface charge density σ on its surface. Adjacent to it is an infinite parallel layer of charge of thickness d and uniform volume charge density p. The situation is illustrated on the right. All charges are fixed. Find E everywhere.
6. An infinite cylinder of radius R has a uniform charge density of p in its...
6. An infinite cylinder of radius R has a uniform charge density of p in its interior, and a surface charge density of -pR on its surface. Find the electric field everywhere inside and outside the cylinder. Be clear about both the magnitude and direction of the field.
Let us model this as two infinite slabs of charge, both of thickness a with the...
Let us model this as two infinite slabs of charge, both of thickness a with the junction lying on the plane z = 0 . The N-type material lies in the range 0 < z < a and has uniform charge density +ρ0 . The adjacent P-type material lies in the range −a < z < 0 and has uniform charge density −ρ0 . Thus: p(z) = { +p0 0<z<a -p0 -a<z<0 0 |z|>a } (a) Find the electric field...
6. An infinite cylinder of radius R has a uniform charge density of ρ in its...
6. An infinite cylinder of radius R has a uniform charge density of ρ in its interior, and a surface charge side and outside the cylinder. Be density of -pR on its surface. Find the electric field everywhere in clear about both the magnitude and direction of the field.
PROBLEM 02.05 A uniform current with the surface current density K flows along an infinite conducting...
PROBLEM 02.05 A uniform current with the surface current density K flows along an infinite conducting plane. The plane is adjourned on one of its sides by an infinite plate of finite thickness d made of a non-conducting linear material with magnetic permeability p Find the magnetic field B, the H-field, the magnetization M, and all bound currents ir everviwhere
2 An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform...
2 An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform surface charge density parallel to each other and are separated a distance h as shown in the figure below: σ lie a) What is the electric field in regions A, B, and C? b) Suppose an electric dipole composed of a positive point charge +q and negative point charge -q both with mass m separated a distance d is placed in region B. If...
2. An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform...
2. An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform surface charge density-lie parallel to each other and are separated a distance h as shown in the figure below: +o a) What is the electric field in regions A, B, and C? b) Suppose an electric dipole composed of a positive point charge +q and negative point charge -q both with mass m separated a distance d is placed in region B. If the...
2. An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform...
2. An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform surface charge density parallel to each other and are separated a distance h as shown in the figure below: σ lie a) What is the electric field in regions A, B, and C? b) Suppose an electric dipole composed of a positive point charge +q and negative point charge -q both with mass m separated a distance d is placed in region B If...
1. An infinite, non-conducting slab of thickness 2w is centered on the xy-plane and bears a...
1. An infinite, non-conducting slab of thickness 2w is centered on the xy-plane and bears a uniform volumetric charge density rho. Find the electric potential on the z-axis at 10w with respect to the origin in terms of epsilon. 2. A thick-walled cylindrical shell of infinite length has inner radius w, outer radius ew (as in Napier's Constant 2.7183... times w), is concentric with the z-axis, and bears a uniform volumetric charge density rho. Find the electric potential at its...
Consider an infinite plane in x-y with a uniform surface charge density σ-10°C/m2 . σ =...
Consider an infinite plane in x-y with a uniform surface charge density σ-10°C/m2 . σ = 10t/m2 22- 2 m above Calculate the electric potential difference AV in Volts, between z1-1 m and the plane. Is it possible to choose a reference at infinity when calculating the electric potential in this problem? a) b)
6, (10 points) An infinite plane has a uniform surface charge density σ on its surface. Adjacent to it is an infinite parallel layer of charge of thickness d and uniform volume charge density p. The situation is illustrated on the right. All charges are fixed. Find E everywhere.
6. An infinite cylinder of radius R has a uniform charge density of p in its interior, and a surface charge density of -pR on its surface. Find the electric field everywhere inside and outside the cylinder. Be clear about both the magnitude and direction of the field.
6. An infinite cylinder of radius R has a uniform charge density of ρ in its interior, and a surface charge side and outside the cylinder. Be density of -pR on its surface. Find the electric field everywhere in clear about both the magnitude and direction of the field.
PROBLEM 02.05 A uniform current with the surface current density K flows along an infinite conducting plane. The plane is adjourned on one of its sides by an infinite plate of finite thickness d made of a non-conducting linear material with magnetic permeability p Find the magnetic field B, the H-field, the magnetization M, and all bound currents ir everviwhere
2 An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform surface charge density parallel to each other and are separated a distance h as shown in the figure below: σ lie a) What is the electric field in regions A, B, and C? b) Suppose an electric dipole composed of a positive point charge +q and negative point charge -q both with mass m separated a distance d is placed in region B. If...
2. An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform surface charge density-lie parallel to each other and are separated a distance h as shown in the figure below: +o a) What is the electric field in regions A, B, and C? b) Suppose an electric dipole composed of a positive point charge +q and negative point charge -q both with mass m separated a distance d is placed in region B. If the...
2. An infinite sheet of uniform surface charge density σ and an infinite sheet of uniform surface charge density parallel to each other and are separated a distance h as shown in the figure below: σ lie a) What is the electric field in regions A, B, and C? b) Suppose an electric dipole composed of a positive point charge +q and negative point charge -q both with mass m separated a distance d is placed in region B If...
Consider an infinite plane in x-y with a uniform surface charge density σ-10°C/m2 . σ = 10t/m2 22- 2 m above Calculate the electric potential difference AV in Volts, between z1-1 m and the plane. Is it possible to choose a reference at infinity when calculating the electric potential in this problem? a) b)
