1. An infinite, non-conducting slab of thickness 2w is centered on the xy-plane and bears a...

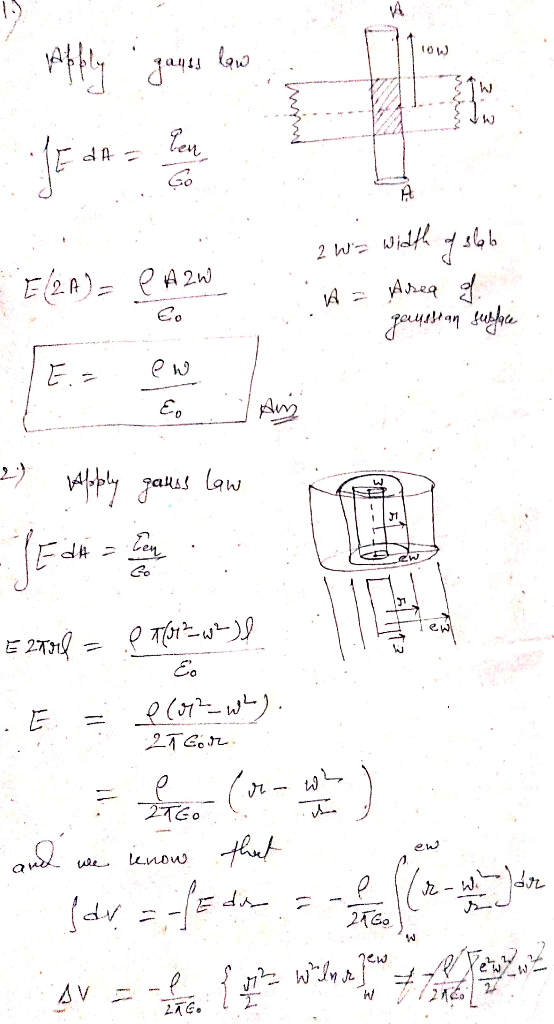

1. An infinite, non-conducting slab of thickness 2w is centered on the xy-plane and bears a uniform volumetric charge density rho. Find the electric potential on the z-axis at 10w with respect to the origin in terms of epsilon.

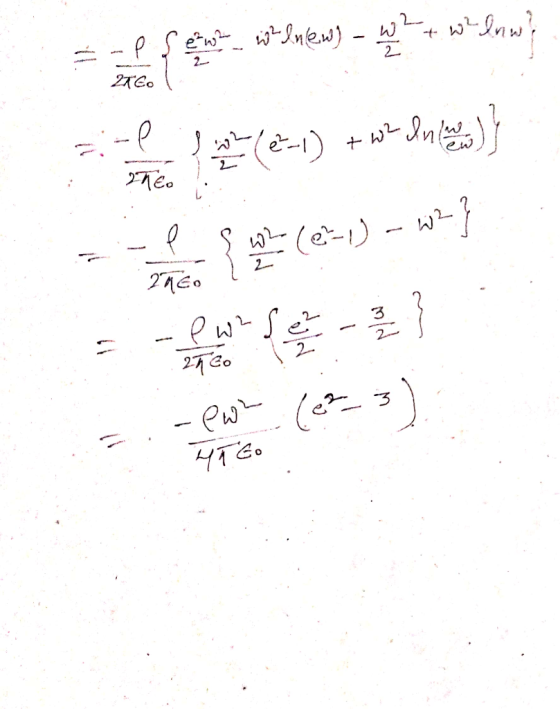

2. A thick-walled cylindrical shell of infinite length has inner radius w, outer radius ew (as in Napier's Constant 2.7183... times w), is concentric with the z-axis, and bears a uniform volumetric charge density rho. Find the electric potential at its inner surface with respect to its outer surface in terms of epsilon.
please show all the steps.
thank you.
