Show how you can use a 1-var Multiplexer (and NOT gates) to build basic gates such...

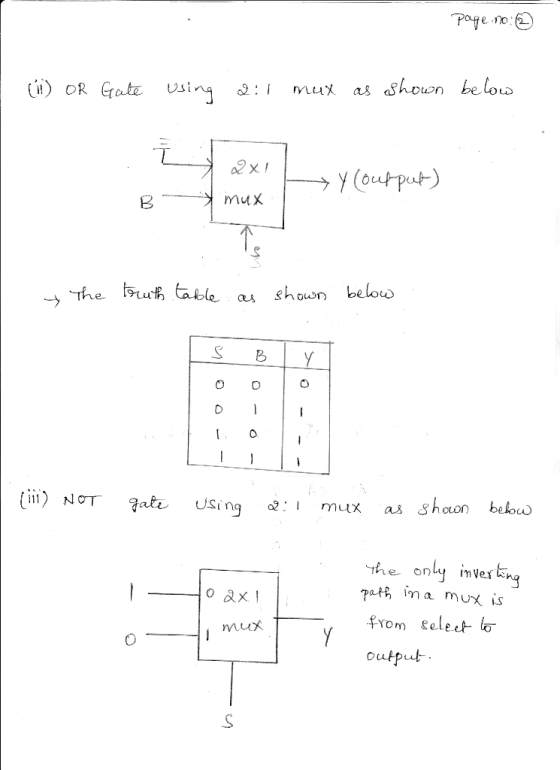

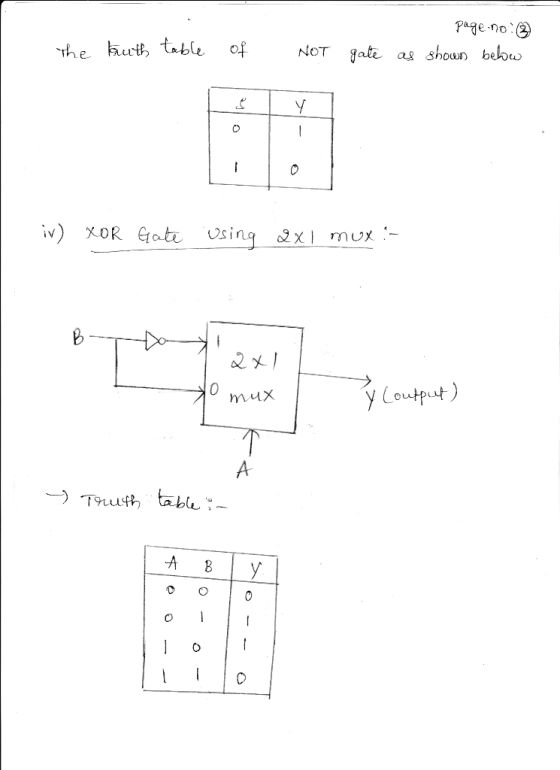

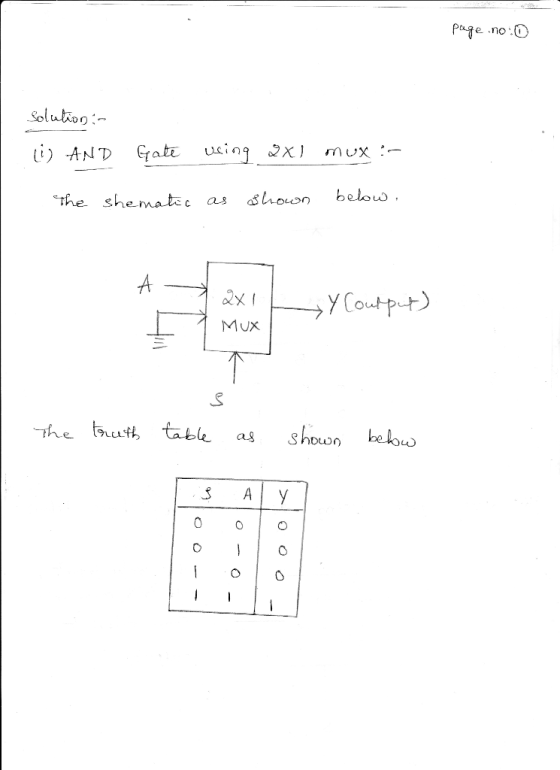

Show how you can use a 1-var Multiplexer (and NOT gates) to build basic gates such as AND, OR, NOT, XOR, etc. For the NOT gate, try to not use any NOT gates in the schematic
Homework Answers
