Show how 2-var multiplexers could be used to build basic gates (NAND, NOR, NOT)
Show how 2-var multiplexers could be used to build basic gates (NAND, NOR, NOT)
Homework Answers

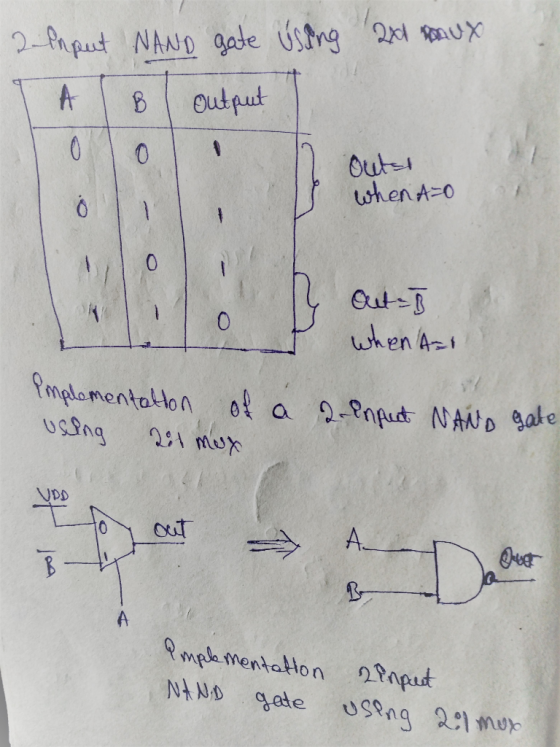

2-input NAND gate using 2:1 mux
the truth table of a 2-input NAND gate. If we observe carefully, OUT equals '1' when A is '0'. Similarly, when A is '1', OUT is B'. So, if we connect SEL pin of mux to A, S0 pin of mux to '1' and S1 to B', then it will act as a NAND gate.

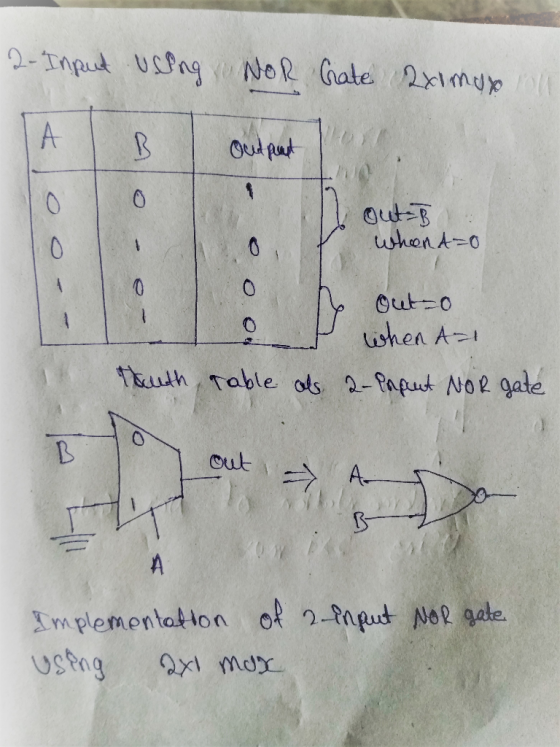

2-input NOR gate 2:1 MUX: If we observe carefully, OUT equal B' when A is '0'. Similarly, OUT equals '0' when A is '1'. So, we can make a 2-input mux act like a 2-input NOR gate, if we connect SEL of mux to A, S0 to B' and S1 to '0'.

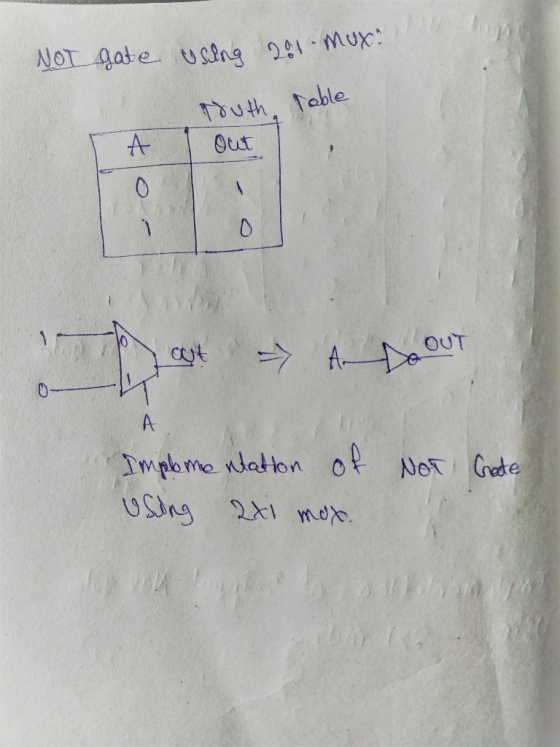

NOT gate using 2:1 mux: The only inverting path in a multiplexer is from select to output. To implement NOT gate with the help of a mux, we just need to enable this inverting path. This will happen if we connect S0 to '1' and S1 to '0'.
