Suppose a block with mass 2.00 kg is resting on a ramp. If the coefficient of...

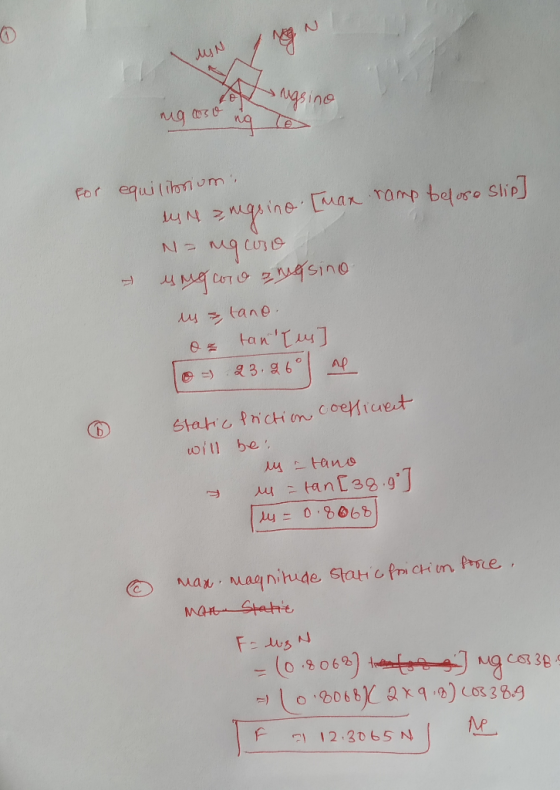

Suppose a block with mass 2.00 kg is resting on a ramp. If the coefficient of static friction between the block and the ramp is 0.430.
(a) What maximum angle can the ramp make with the horizontal before the block starts to slip down?
The ramp in the figure is roughed up and the experiment repeated.
(b) What is the new coefficient of static friction if the
maximum angle turns out to be 38.9°?
(c) Find the magnitude of the maximum static friction force that
acts on the block.
Homework Answers
Add Answer to:
Suppose a block with mass 2.00 kg is resting on a ramp. If the
coefficient of...
A block of jello with mass 8.08 kg is resting on an inclined plane. The plane...
A block of jello with mass 8.08 kg is resting on an inclined plane. The plane is inclined to the horizontal by an angle 28.3°. The jello has a coefficient of static friction with respect to the surface of the plane of µs=0.77. What is the magnitude of the static friction force between the jello and the ramp?
A box of mass m = 2.00 kg is positioned on a ramp at an angle...
A box of mass m = 2.00 kg is positioned on a ramp at an angle θ. The length of the ramp (minus the width of the base of the box) is d = 3.00 m. The surface of the ramp has a coefficient of static friction μs = 0.500 and a coefficient of kinetic friction μk = 0.350. The angle θ is slowly increased until the box starts to slide down the ramp. Calculate the angle θmax at which...
) A mass of 6 kg is resting on a horizontal with friction with a coefficient...
) A mass of 6 kg is resting on a horizontal with friction with a coefficient of static friction of 0.71 and coefficient of kinetic friction of 0.30. A force of 9 N is applied vertically upwards to the mass, and a force of 15 N is applied vertically downwards to the mass. What is the maximum static frictional force for this situation in Newtons?
I need help with this question 5, A block with mass 2.00 kg slides 0.750 m...
I need help with this question
5, A block with mass 2.00 kg slides 0.750 m down an inclined plane that slopes downward at an angle θ = 370 below the horizontal. block. b) If the kinetic friction coefficient H.-075, what is the acceleration of the block? a) lIf the block starts from rest, what is its final speed? Assume no friction acts on the
A block is resting on a horizontal surface. The mass of the block is 40 kg....
A block is resting on a horizontal surface. The mass of the block is 40 kg. The coefficient of static friction between the block and the surface is us = 0.3 and the coefficient of kinetic friction is uk = 0.20. A man then decides to push on the block with 30 newtons of horizontal force. a) What is the acceleration of the block? Explain. b) Suppose the man pushes on the block with 200 newtons instead. What is the...
A box of textbooks of mass 25.2 kg rests on a loading ramp that makes an...
A box of textbooks of mass 25.2 kg rests on a loading ramp that makes an angle α with the horizontal. The coefficient of kinetic friction is 0.23 and the coefficient of static friction is 0.35. A. As the angle α is increased, find the minimum angle at which the box starts to slip. B. At this angle, find the magnitude of the acceleration once the box has begun to move. Express your answer using two significant figures. C. At...
A metal block with a mass of 2.1 kg is resting on a table. The coefficient...
A metal block with a mass of 2.1 kg is resting on a table. The coefficient of kinetic friction between the block and the table is 0.39. A horizontal force of 21 N is applied to the block. Find the velocity of the block after 2.0 s. Draw a free body diagram and show all steps in the calculation.
A block with mass 12.0 kg is on a ramp that is inclined at an angle...
A block with mass 12.0 kg is on a ramp that is inclined at an angle of 50.0 degrees above the horizontal. The block is accelerating up the ramp at 3.0 m/s2 as you pull on it with a string parallel to the surface of the ramp with a constant force of 140 N.\ A) Draw a free body diagram for the block moving up the ramp and choose a convenient xy-coordinate system to apply Newton's laws of motion. B)...
2. A 5 kg block sits at rest on an inclined ramp which makes an angle...
2. A 5 kg block sits at rest on an inclined ramp which makes an angle of 24 degrees with respect to the horizontal. It is noted that even if the angle 0 is increased the block still does not slip. The coefficient of static friction for the bottom surface of the block and the surface of the ramp is us= 0.56. The magnitude of the frictional force acting on the block must be O 1 O O A. 50...
The figure below shows two masses m,=4.5 kg and m2=4.1 kg which are connected by a...
The figure below shows two masses m,=4.5 kg and m2=4.1 kg which are connected by a cable and are in contact with frictionless surfaces as shown. The ramp makes an angle 0=35° with the horizontal and m is acted on by a force of magnitude F=44 N which acts up the ramp. What is the tension in the cable? m2 m 1 e Select one: 5.48 N C4.39 N 7.67 N 10.96 N C17.54 N The figure below shows two...
I need help with this question
5, A block with mass 2.00 kg slides 0.750 m down an inclined plane that slopes downward at an angle θ = 370 below the horizontal. block. b) If the kinetic friction coefficient H.-075, what is the acceleration of the block? a) lIf the block starts from rest, what is its final speed? Assume no friction acts on the
2. A 5 kg block sits at rest on an inclined ramp which makes an angle of 24 degrees with respect to the horizontal. It is noted that even if the angle 0 is increased the block still does not slip. The coefficient of static friction for the bottom surface of the block and the surface of the ramp is us= 0.56. The magnitude of the frictional force acting on the block must be O 1 O O A. 50...
The figure below shows two masses m,=4.5 kg and m2=4.1 kg which are connected by a cable and are in contact with frictionless surfaces as shown. The ramp makes an angle 0=35° with the horizontal and m is acted on by a force of magnitude F=44 N which acts up the ramp. What is the tension in the cable? m2 m 1 e Select one: 5.48 N C4.39 N 7.67 N 10.96 N C17.54 N The figure below shows two...
