Please help me and explain how to find this. A speaker is placed next to one...
Please help me and explain how to find this.

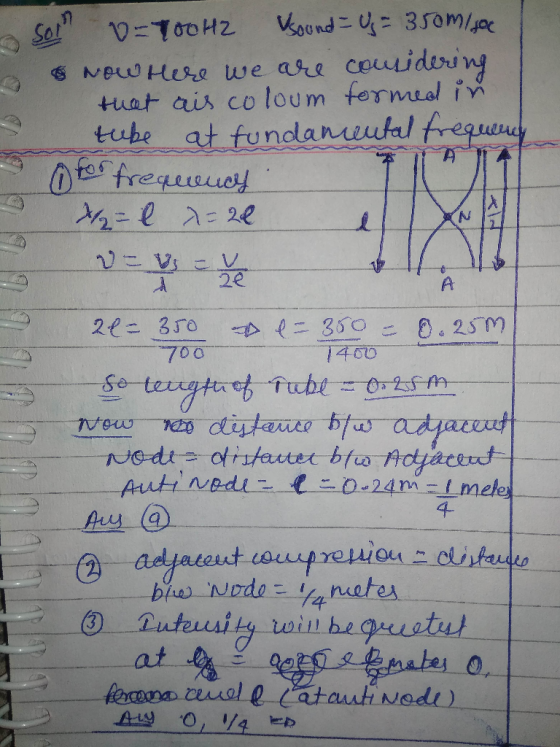

A speaker is placed next to one end of tube opened at both ends. The frequency of the sound wave is set to 700 Hz and a standing wave is observed. The air temperature is such that the speed of sound is 350 m/s. The distance between adjacent nodes of the standing wave equals ____ meter(s).
a) 1/4 b) 1/2 c) 1 d) 2 e) 0.7
A speaker producing a 700 Hz sound wave traveling at 350 m/s is pointed toward open space. The distance between adjacent “compressions” equals ____ meter(s).
a) 1/4 b) 1/2 c) 1 d) 2 e) 0.7
A speaker producing a 700 Hz sound wave traveling at 350 m/s is pointed toward open space. The intensity of the sound wave is greatest ______ meter(s) away from the speaker.
a) 0 b) 1/4 c) 1/2 c) 1 d) 2 e) 0.7
