How are the capacitive and inductive reactances of a power system affected by harmonics?
How are the capacitive and inductive reactances of a power system affected by harmonics?
Homework Answers
Capacitor are sensitive to the harmonics in the power system, whereas the capacitive reactance decreases with increase in the harmonic order increases
when inductor present in the power system , the inductive reactance increases with the increase in the harmonic order increases
to reduce the harmonics in the power system we install the capacitor power banks .
Add Answer to:
How are the capacitive and inductive reactances of a power
system affected by harmonics?
A series RLC circuit with a resistance of 490 Ω has capacitive and inductive reactances of...
A series RLC circuit with a resistance of 490 Ω has capacitive and inductive reactances of 330 Ω and 460 Ω , respectively. a)What is the power factor of the circuit? b)If the circuit operates at 60 Hz, what additional capacitance should be connected to the original capacitance to give a power factor of unity? (F) c)How should the capacitors be connected?
C) is this an inductive or capacitive load? why? d) what is the power factor of...
C) is this an inductive or capacitive load? why?
d) what is the power factor of the load.
1. The Y-Y three phase balanced system has the following parameters. (30pts) Vo_an/bn/cn = 12Vrms Lo=3mH Ro=5k2 RLINE =8k2, Freq = 300KHz. RLOAD =20k.2 LLOAD=9mH CLOAD =0.001uF RLINE_A RLOAD_A Roa La LLOAD_A CLOAD A N CLOAD_BY CLOAD_C Vb bn LLOAD_C LC LLOAD_B Ro C HRLOAD_C RLINE_B Ro B RLOAD_B RLINE_C
How do you tell if a parallel LCR circuit is more capacitive, inductive, or reactive?
How do you tell if a parallel LCR circuit is more capacitive, inductive, or reactive?
Explain the loading characteristics of a three-phase alternator in capacitive, resistive and inductive. Please indicate the...
Explain the loading characteristics of a three-phase alternator in capacitive, resistive and inductive. Please indicate the voltage, current and power relationship in each load condition. Lastly, also explain the power factor relationship. Answer in paragraph form or bullet form. Thanks
Which of the following statements is/are correct. If the source frequency increases: Inductive reactance decreases; Capacitive...
Which of the following statements is/are correct. If the source
frequency increases:
Inductive reactance decreases;
Capacitive reactance increases;
Inductive reactance increases;
Capacitive reactance decreases;
A and B;
C and D.
Final result too, please
-An electric load consists of a 4Ω resistance, 6Ω inductive reactance and 9Ω capacitive reactance connected...
-An electric load consists of a 4Ω resistance, 6Ω inductive reactance and 9Ω capacitive reactance connected in series. The total impedance of the load is connected across a voltage source of 120 V: a) Compute the power factor of the load. Pf- b) Compute the source current c) Compute the real power of the circuit. d) Compute the reactive power of the circuit. Isource
Which of the following statements is incorrect? (a) reactive power for capacitive loads is negative (b)...
Which of the following statements is incorrect? (a) reactive power for capacitive loads is negative (b) inductive loads have lagging power factor (c) apparent power is the magnitude of complex power (d) complex power for resistive loads is zero.

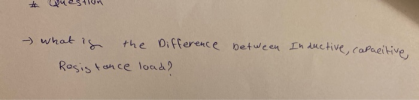

* Questlon - what is the Difference between Inductive, capacitive, Rosis fonce load?
* Questlon - what is the Difference between Inductive, capacitive, Rosis fonce load?
An AC series circuit has 18.9-Ω resistance, 21.1-Ω inductive reactance, and 15.5-Ω capacitive reactance. If an...
An AC series circuit has 18.9-Ω resistance, 21.1-Ω inductive reactance, and 15.5-Ω capacitive reactance. If an effective (rms) emf of 94 V is applied, what is the power output?
For parallel loads given, with load 2 is inductive (L), while load 3 is capacitive (C)....
For parallel loads given, with load 2 is inductive (L), while load 3 is capacitive (C). Find the total a. average power, b. reactive power, c. apparent power, d. overall power factor pf of the network given. Load | 1 Load 2 Load 3 V = 220 V 20° O VAR 100 W 700 VAR (L) 200 W 1500 VAR (C) 300 W 10
C) is this an inductive or capacitive load? why?
d) what is the power factor of the load.
1. The Y-Y three phase balanced system has the following parameters. (30pts) Vo_an/bn/cn = 12Vrms Lo=3mH Ro=5k2 RLINE =8k2, Freq = 300KHz. RLOAD =20k.2 LLOAD=9mH CLOAD =0.001uF RLINE_A RLOAD_A Roa La LLOAD_A CLOAD A N CLOAD_BY CLOAD_C Vb bn LLOAD_C LC LLOAD_B Ro C HRLOAD_C RLINE_B Ro B RLOAD_B RLINE_C
Which of the following statements is/are correct. If the source
frequency increases:
Inductive reactance decreases;
Capacitive reactance increases;
Inductive reactance increases;
Capacitive reactance decreases;
A and B;
C and D.
Final result too, please
-An electric load consists of a 4Ω resistance, 6Ω inductive reactance and 9Ω capacitive reactance connected in series. The total impedance of the load is connected across a voltage source of 120 V: a) Compute the power factor of the load. Pf- b) Compute the source current c) Compute the real power of the circuit. d) Compute the reactive power of the circuit. Isource
* Questlon - what is the Difference between Inductive, capacitive, Rosis fonce load?
For parallel loads given, with load 2 is inductive (L), while load 3 is capacitive (C). Find the total a. average power, b. reactive power, c. apparent power, d. overall power factor pf of the network given. Load | 1 Load 2 Load 3 V = 220 V 20° O VAR 100 W 700 VAR (L) 200 W 1500 VAR (C) 300 W 10
