A High Pass Filter circuit consisting of a resistor of 5kΩ in series with a capacitor...

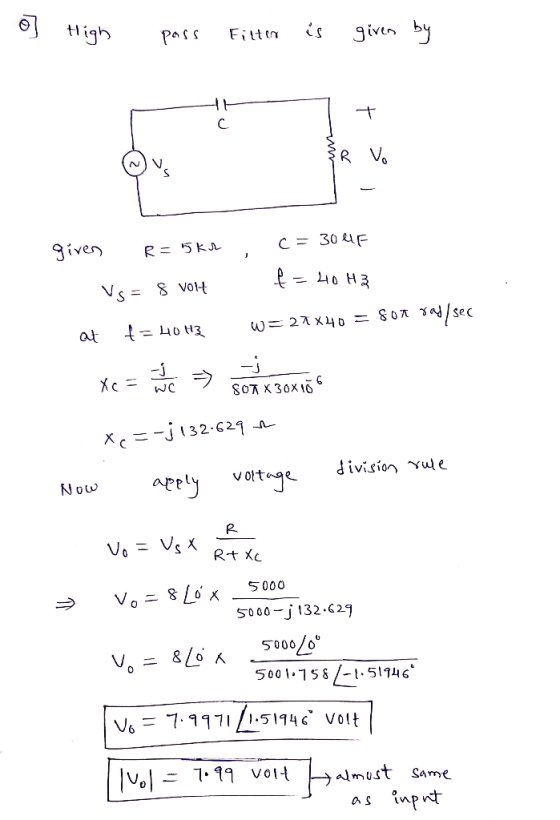

A High Pass Filter circuit consisting of a resistor of 5kΩ in series with a capacitor of 30 µF is connected across a 8v sinusoidal supply. Calculate the output voltages (volts) at input signal frequency of 40Hz.
Homework Answers
Add Answer to:
A High Pass Filter circuit consisting of a resistor of 5kΩ in
series with a capacitor...
build a high pass filter using a capacitor and a resistor that eliminate 80% of a...
build a high pass filter using a capacitor and a resistor that
eliminate 80% of a 60Hz portion of a signal. (a) Draw the circuit.
(b) Derive an equation for the ratio of the output voltage to the
input voltage. (c) find the capacitor needed if a R= 100 Ohm
resistor is used. (d) what percentage of the 10kHz signal is passed
by the high pass filter for the no load circuit?. (e) What is the
ratio of output signal...
a high pass filter consists of a capacitor in series and a resistor in parallel to...
a high pass filter consists of a capacitor in series and a resistor in parallel to the output terminals of a circuit. It is used to "Remove low frequency signals on a circuit?", or "Remove high frequency signals on a circuit?" or "increase the inductance of a circuit?" or to "increase the resistance of the circuit?"
2. A high pass filter is built using a 5k resistor and 200 pF capacitor. a....
2. A high pass filter is built using a 5k resistor and 200 pF capacitor. a. Draw the circuit b. Calculate the time constant for the circuit c. What is the critical frequency (in rad/s) for the circuit? d. What is the critical frequency (in Hz) for the circuit? e. What is the attenuation for a 30 kHz signal? f. What is the attenuation for a 300 kHz signal? g. What is the 30 kHz attenuation in dB?
Answer a, b, c, d A circuit consists of a resistor R connected in series with a capacitor C, as shown in Fig.1 EL Eo Fig 1. The capacitor C is connected in series with the resistor R The equation...
Answer a, b, c, d
A circuit consists of a resistor R connected in series with a capacitor C, as shown in Fig.1 EL Eo Fig 1. The capacitor C is connected in series with the resistor R The equation which describes this circuit when subject to a step function is given below di 0.3.21-9 dt a) What is the time constant r of this system? b) Assume zero initial condition (0 when r0), find the solution i() of the...
A high-pass filter consists of a 1.60 μF capacitor in series with a 125 Ω resistor....
A high-pass filter consists of a 1.60 μF capacitor in series with a 125 Ω resistor. The circuit is driven by an AC source with a peak voltage of 4.90 V . Part A What is the crossover frequency fc? Part B What is VR when f=12fc? Part C What is VR when f =fc? Part D What is VR when f =2fc?
Part B - Designing and analyzing a series RC high-pass filter Using the available 3.2 uF...
Part B - Designing and analyzing a series RC high-pass filter Using the available 3.2 uF capacitor, what is the value of the resistor needed to make a high-pass filter with a cutoff frequency of 2800 Hz? Express your answer to three significant figures and include appropriate units. View Available Hint(s) НА ? R = Value Units Submit Part C - Measuring the effectiveness of the series RC high-pass filter To measure the effectiveness of the design, find the magnitude...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...
2)Passive Filter: High Pass Filter Lab Experiment 3) Given the following RLC series circuit. V, =...
2)Passive Filter: High Pass Filter Lab Experiment 3) Given the following RLC series circuit. V, = 10 Vrm L 0º and frequency f= 90 KHz. The circuit elements values are: R = 5 KO, L= 10 mH and C = 470 pF. a) Calculate total impedance Z, in polar form. b) Calculate total current I, in polar form. c) Calculate the voltages across R, C and L, (VR, Vc, and V.). d) Draw voltage phasor diagram Vs, VR, Vc, and...
Consider a series ac circuit consisting of a voltage source, resistor, capacitor, and inductor. Given their...
Consider a series ac circuit consisting of a voltage source, resistor, capacitor, and inductor. Given their values are: R = 200 Ω, C = 60.0 µF, L = 210 mH, fd= 60.0 Hz, and Em = 25.0 V. Calculate the magnitude and direction of the voltage on the resistor, capacitor, and inductor?
A series circuit consisting of an uncharged 2.0-µF capacitor and a 10-MΩ resistor is connected across...
A series circuit consisting of an uncharged 2.0-µF capacitor and a 10-MΩ resistor is connected across a 100-V power source. What are the current in the circuit and the charge on the capacitor (a) after one time constant, and (b) when the capacitor has acquired 90 percent of its final charge? A- (a) 10.0 µA, 0.2 mC (b) 9.0 µA, 45.0 mC B- (a) 27.0 µA, 0.54 mC (b) 4.0 µA, 18.0 nC C-(a) 3.7 µA, 0.13 mC (b) 1.0...
2. A high pass filter is built using a 5k resistor and 200 pF capacitor. a. Draw the circuit b. Calculate the time constant for the circuit c. What is the critical frequency (in rad/s) for the circuit? d. What is the critical frequency (in Hz) for the circuit? e. What is the attenuation for a 30 kHz signal? f. What is the attenuation for a 300 kHz signal? g. What is the 30 kHz attenuation in dB?
Answer a, b, c, d
A circuit consists of a resistor R connected in series with a capacitor C, as shown in Fig.1 EL Eo Fig 1. The capacitor C is connected in series with the resistor R The equation which describes this circuit when subject to a step function is given below di 0.3.21-9 dt a) What is the time constant r of this system? b) Assume zero initial condition (0 when r0), find the solution i() of the...
Part B - Designing and analyzing a series RC high-pass filter Using the available 3.2 uF capacitor, what is the value of the resistor needed to make a high-pass filter with a cutoff frequency of 2800 Hz? Express your answer to three significant figures and include appropriate units. View Available Hint(s) НА ? R = Value Units Submit Part C - Measuring the effectiveness of the series RC high-pass filter To measure the effectiveness of the design, find the magnitude...
Circuit Analysis in Electrical Engineering 4. A resistor and a capacitor are connected in series across a 270-V ac supply. When the frequency is 40 Hz, the current flowing in the circuit is 6.25 A. When the frequency is 50 Hz, the current flowing in the circuit is 7.5 A Calculate the resistance and capacitance of the resistor and capacitor respectively. (99.97 μF; 16.798 Ω) If the resistor and capacitor are now connected in parallel across the 60-Hz supply, calculate...
2)Passive Filter: High Pass Filter Lab Experiment 3) Given the following RLC series circuit. V, = 10 Vrm L 0º and frequency f= 90 KHz. The circuit elements values are: R = 5 KO, L= 10 mH and C = 470 pF. a) Calculate total impedance Z, in polar form. b) Calculate total current I, in polar form. c) Calculate the voltages across R, C and L, (VR, Vc, and V.). d) Draw voltage phasor diagram Vs, VR, Vc, and...
