build a high pass filter using a capacitor and a resistor that eliminate 80% of a 60Hz portion of a signal. (a) Draw the circuit. (b) Derive an equation for the ratio of the output voltage to the input voltage. (c) find the capacitor needed if a R= 100 Ohm resistor is used. (d) what percentage of the 10kHz signal is passed by the high pass filter for the no load circuit?. (e) What is the ratio of output signal to input signal if an R=1k Ohm load resistor is attached? (f) What is the the ratio of output signal to input signal if an R= 10 Ohm load resistor is attached?
Vi.0.....) I(capacitor).....o......o.......o.........oVo
o
o
R(resistor)
o
-(ground)
-

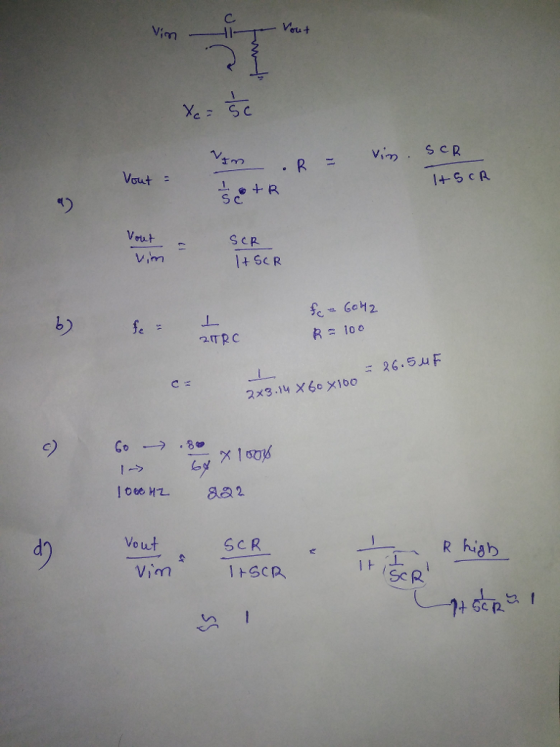

I have drawn the pictur that is not exactly but I write it down. Voltage in connected to Capacitor connected resistor which is down. Vo connected to end of capcitor and begining of resistor. Also ground is connecte to end of resistor.
Homework Answers
Add Answer to:
build a high pass filter using a capacitor and a resistor that
eliminate 80% of a...
A High Pass Filter circuit consisting of a resistor of 5kΩ in series with a capacitor...
A High Pass Filter circuit consisting of a resistor of 5kΩ in series with a capacitor of 30 µF is connected across a 8v sinusoidal supply. Calculate the output voltages (volts) at input signal frequency of 40Hz.
10 Design a low pass filter using a resistor R and a capacitor C of 0.2uF....
10 Design a low pass filter using a resistor R and a capacitor C of 0.2uF. Sketch the circuit diagram, mark thoe output voltage Vo, calculate the resistance value for R if 3dB frequency is 2500 Hz, and write out the voltage gain vs ω (for both magnitude and phase). Repeat the design if R is given as 30 Ohm and C is unknown.
8 using a 250nF capacitor. (a) Draw the OPP. HP amp-based high-pass filter with a cut-off...
8 using a 250nF capacitor. (a) Draw the OPP. HP amp-based high-pass filter with a cut-off of 4kHz and a passband gain of of capacitor. (a) Draw the circuit, label the component values and the output voltage Coif th I the value of the feedback resistor in the filter is changed but the value of the resistor in the forward path is unchanged, what can changed? The input the filter is 250 coswin n the forward path is unchanged, what...
a high pass filter consists of a capacitor in series and a resistor in parallel to...
a high pass filter consists of a capacitor in series and a resistor in parallel to the output terminals of a circuit. It is used to "Remove low frequency signals on a circuit?", or "Remove high frequency signals on a circuit?" or "increase the inductance of a circuit?" or to "increase the resistance of the circuit?"
2. A high pass filter is built using a 5k resistor and 200 pF capacitor. a....
2. A high pass filter is built using a 5k resistor and 200 pF capacitor. a. Draw the circuit b. Calculate the time constant for the circuit c. What is the critical frequency (in rad/s) for the circuit? d. What is the critical frequency (in Hz) for the circuit? e. What is the attenuation for a 30 kHz signal? f. What is the attenuation for a 300 kHz signal? g. What is the 30 kHz attenuation in dB?
A low pass filter is made using a 50 pF capacitor and a 6 kΩ resistor...
A low pass filter is made using a 50 pF capacitor and a 6 kΩ resistor Draw the circuit What is the critical frequency of the filter in Hz? What is the attenuation of a 500 Hz signal? What is the attenuation of a 50 kHz signal? What is the 50 kHz attenuation in dB?
skipped part. Tutorial Exercise The RC high-pass filter shown in the figure below has a resistance...
skipped part. Tutorial Exercise The RC high-pass filter shown in the figure below has a resistance R -0.500 n and a capacitance C = 673 pF. What is the ratio of the amplitude of the output voltage to that of the input voltage for this filter for a source frequency of 583 Hz? R Scout Step 1 The source frequency given in this problem is not an especially high audio frequency so we might guess that the voltage transfer ratio...
1. A resistor R and capacitor care connected in series with an AC voltage source with...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
8.36 High-pass filter** Consider the setup in Problem 8.13, but with the capacor replaced by an i...
Problem 8.36 requires reference to 8.13, I only need 8.36
solved
8.36 High-pass filter** Consider the setup in Problem 8.13, but with the capacor replaced by an inductor. Calculate the ratio Ivl2/ Choose values for R and L to make l Vil2 = 0.1 for a 100 Hz signal. This circuit is the most primitive of "high-pass" filters, providing attenuation that increases with decreasing frequency. Show that, for sufficiently low frequencies, the signal power is reduced by a factor 1/4...
Phasors and complex impedance 1. A resistor R and capacitor Care connected in series with an...
Phasors and complex impedance 1. A resistor R and capacitor Care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R +jX). If the impedance is written in polar form (Z = Zej®), find expressions for Z and Ø. Write your answers in terms of the variables R, C, and (=21f). b. If the voltage source is described by the phasor V = V.ejut,...
10 Design a low pass filter using a resistor R and a capacitor C of 0.2uF. Sketch the circuit diagram, mark thoe output voltage Vo, calculate the resistance value for R if 3dB frequency is 2500 Hz, and write out the voltage gain vs ω (for both magnitude and phase). Repeat the design if R is given as 30 Ohm and C is unknown.
8 using a 250nF capacitor. (a) Draw the OPP. HP amp-based high-pass filter with a cut-off of 4kHz and a passband gain of of capacitor. (a) Draw the circuit, label the component values and the output voltage Coif th I the value of the feedback resistor in the filter is changed but the value of the resistor in the forward path is unchanged, what can changed? The input the filter is 250 coswin n the forward path is unchanged, what...
2. A high pass filter is built using a 5k resistor and 200 pF capacitor. a. Draw the circuit b. Calculate the time constant for the circuit c. What is the critical frequency (in rad/s) for the circuit? d. What is the critical frequency (in Hz) for the circuit? e. What is the attenuation for a 30 kHz signal? f. What is the attenuation for a 300 kHz signal? g. What is the 30 kHz attenuation in dB?
skipped part. Tutorial Exercise The RC high-pass filter shown in the figure below has a resistance R -0.500 n and a capacitance C = 673 pF. What is the ratio of the amplitude of the output voltage to that of the input voltage for this filter for a source frequency of 583 Hz? R Scout Step 1 The source frequency given in this problem is not an especially high audio frequency so we might guess that the voltage transfer ratio...
1. A resistor R and capacitor care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R + jX). If the impedance is written in polar form (Z = Zejº), find expressions for Z and Ⓡ. Write your answers in terms of the variables R, C, and o(= 21f). b. If the voltage source is described by the phasor V = V, ejwt, and...
Problem 8.36 requires reference to 8.13, I only need 8.36
solved
8.36 High-pass filter** Consider the setup in Problem 8.13, but with the capacor replaced by an inductor. Calculate the ratio Ivl2/ Choose values for R and L to make l Vil2 = 0.1 for a 100 Hz signal. This circuit is the most primitive of "high-pass" filters, providing attenuation that increases with decreasing frequency. Show that, for sufficiently low frequencies, the signal power is reduced by a factor 1/4...
Phasors and complex impedance 1. A resistor R and capacitor Care connected in series with an AC voltage source with frequency f and maximum voltage Vo. a. Find the complex impedance (in the form Z = R +jX). If the impedance is written in polar form (Z = Zej®), find expressions for Z and Ø. Write your answers in terms of the variables R, C, and (=21f). b. If the voltage source is described by the phasor V = V.ejut,...
