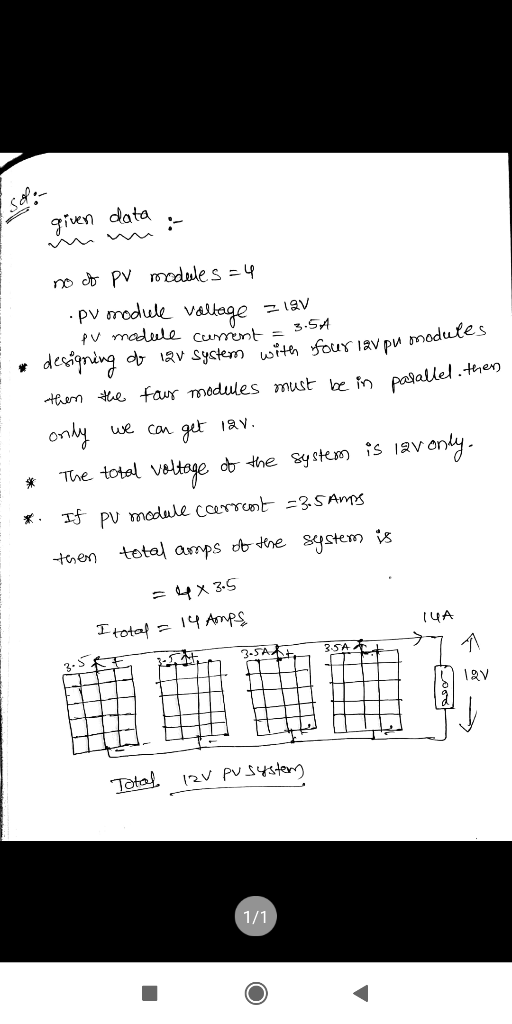

Design a 12V system with four 12V PV modules. What is the total voltage of the...
Homework Answers
Add Answer to:
Design a 12V system with four 12V PV modules. What is the total
voltage of the...
Using the sample PV system below, calculate the wire sizes needed for various portions of the...
Using the sample PV system below, calculate the wire sizes needed for various portions of the PV system. The system consists of the following specification and equipment: a. DC system voltage = 24 volts b. Ten 100 – Watt modules, each with nominal voltage of 12V. The short circuit current (Isc) of each panel is 7.2 amps and the maximum power (Imp) of each panel is 6.2 amps. c. Eight batteries, each is 6V and rated at 350 amp-hours. d....
Question #5: (10 marks) Design a standalone PV system with battery storage to provide energy fora...
Question #5: (10 marks) Design a standalone PV system with battery storage to provide energy fora 13.8 ac appliance Refrigerato cabin with the following appliances 150 100 65 TV, active mode 24 TV,standby mode Satellite, active mode Satellite, standby Microwave 21 17 16 21 0.1 Total (ac power) de appliance 60 10 de air conditioner 10 Total (depower) Total demand wh In your design, determine the type of the inverter, the battery and PV module from the list below and...
How to Design Solar PV System Exercise: An office unit has the following electrical appliance usage:...
How to Design Solar PV System Exercise: An office unit has the following electrical appliance usage: • Ten 3 Watts LED lights with electronic ballast used 8 hours per day. • Four 20 Watts fan used for 4 hours per day. • One 100 Watts refrigerator that runs 24 hours per day with compressor run 12 hours and off 12 hours. • Two 150 watts air conditions runs 4 hours per day. The system will be powered by 36 Vdc,...
A grid-connected PV array consisting of sixteen150-W modules can be arranged in a number of serie...
A grid-connected PV array consisting of sixteen150-W modules
can be arranged in a number of series and parallel
combinations
Q3) A grid-connected PV array consisting of sixteen 150-W modules can be arranged in a number of series and parallel combinations: (16S, 1P), (8S, 2P), (4S, 4P), (2S, 8P), (1S, 16P). The array delivers power to a 2500-W inverter. The key characteristics of modules and inverter are given below. INVERTER Maximum AC power Input voltage range for MPP 250 V-550 Maximum...
