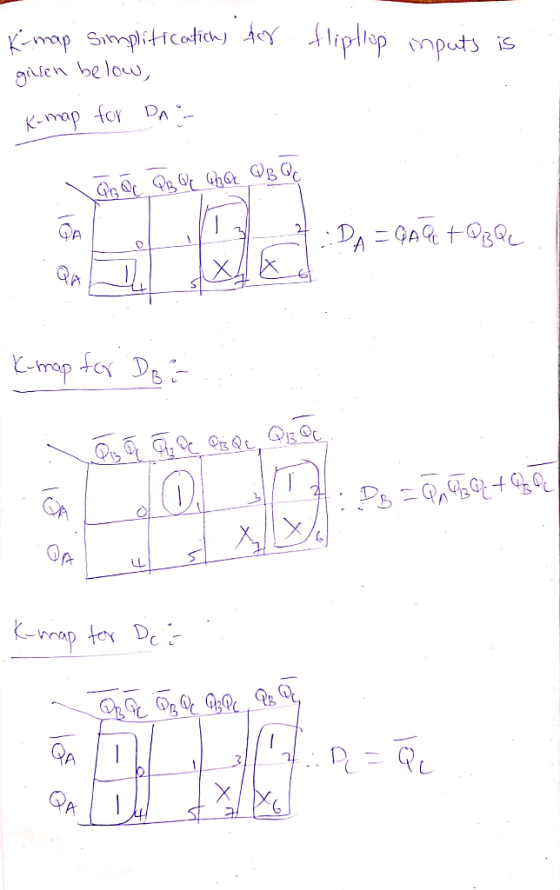

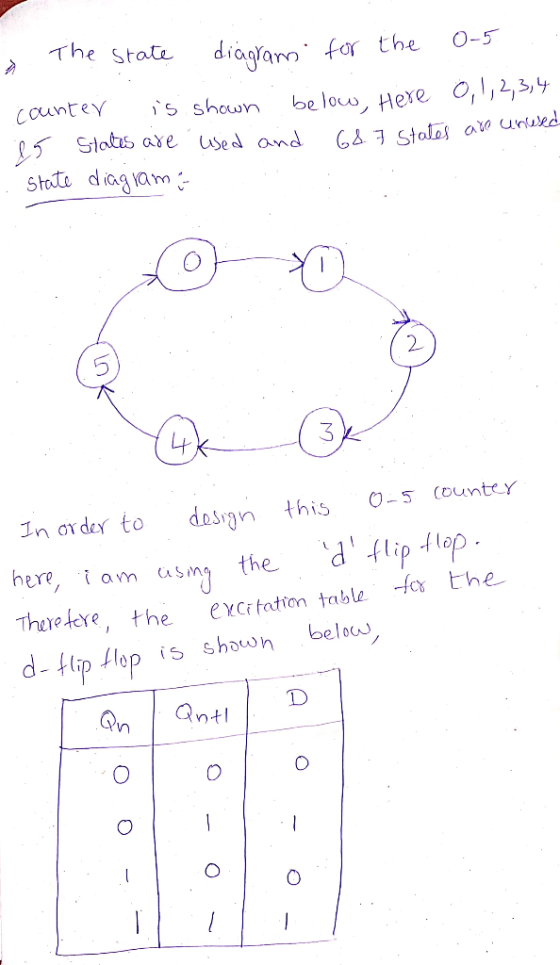

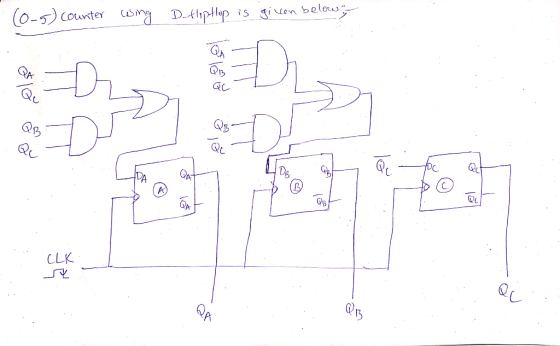

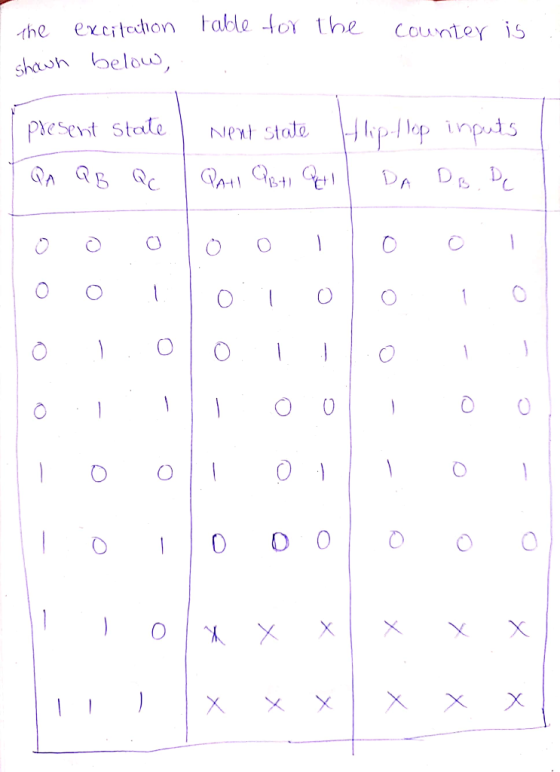

Please show what the circuit of a 0-5 counter using either jk or d flip flops that will count from 0-5 and loop back would look like.. Using negative edge triggered flip flops such as an SN74LS74AN. No truth table or kmaps neccesary, just the circuit diagram
Please show what the circuit of a 0-5 counter using either jk or d flip flops...
Please show what the circuit of a 0-5 counter using either jk or d flip flops that will count from 0-5 and loop back would look like.. Using negative edge triggered flip flops such as an SN74LS74AN.
