Derive the capacitance per unit length (C/length) for two coaxial cylinders. The inner cylinder has radius...

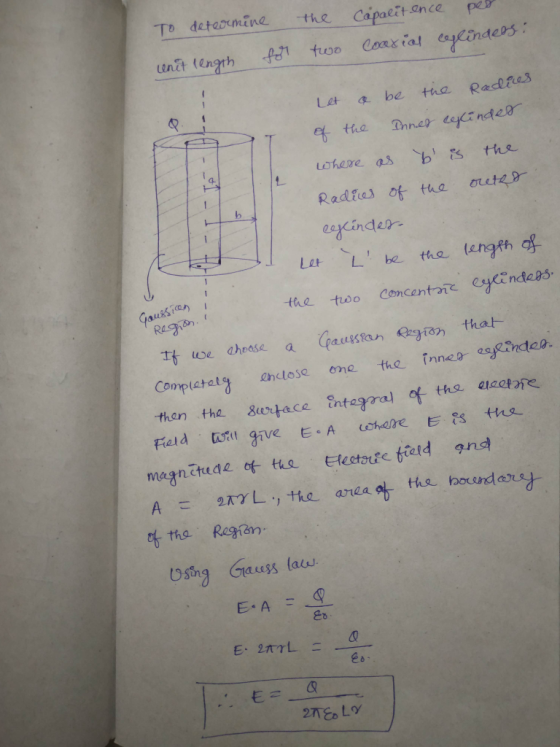

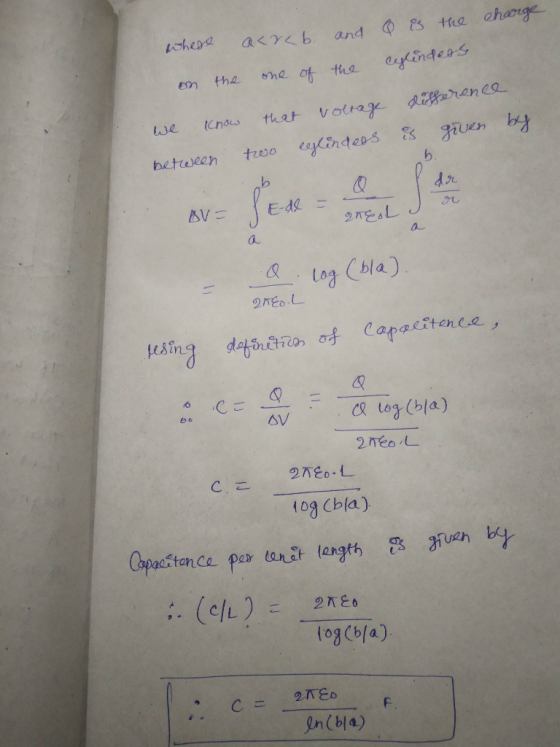

Derive the capacitance per unit length (C/length) for two coaxial cylinders. The inner cylinder has radius a and the outer cylinder has radius b.
Homework Answers
Add Answer to:
Derive the capacitance per unit length (C/length) for two
coaxial cylinders. The inner cylinder has radius...
