1-Simplify the Boolean Equation below using Boolean Algebra (A+B) X (A+C) = Y 2-Please simplify the...
1-Simplify the Boolean Equation below using Boolean Algebra
(A+B) X (A+C) = Y
2-Please simplify the Boolean Equation below using Boolean Algebra
A x B NOT x (A NOT + B NOT) + C = Y

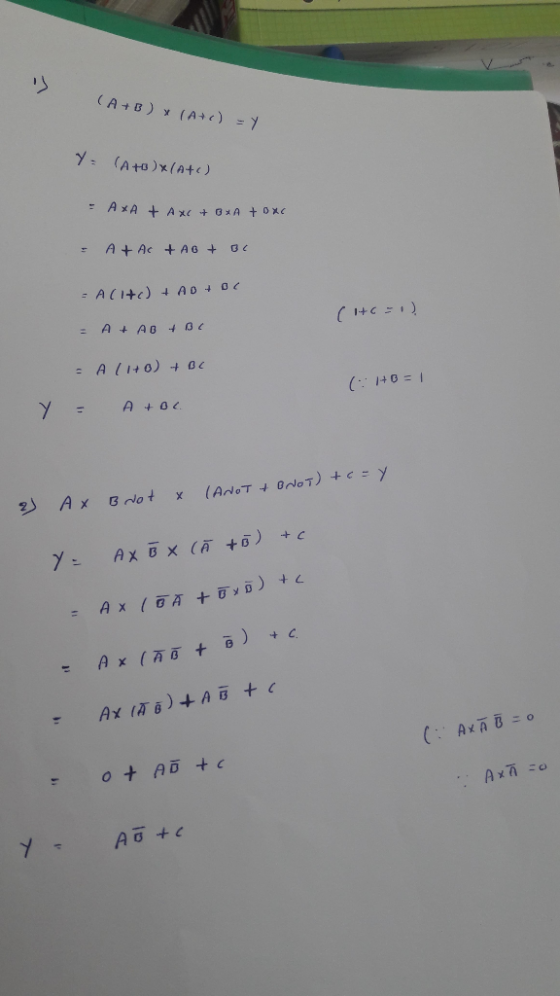

Homework Answers
Add Answer to:
1-Simplify the Boolean Equation below using Boolean Algebra
(A+B) X (A+C) = Y
2-Please simplify the...
Simplify the following Boolean expression as much as possible using Boolean algebra. (a) A ‘C ‘...
Simplify the following Boolean expression as much as possible using Boolean algebra. (a) A ‘C ‘ + ABC + AC ‘ (b) (x ‘y ‘ + z) ‘ + z + xy + wz (c) A ‘B (D ‘ + C ‘D) + B(A + A ‘CD) (d) (A ‘ + C) (A ‘ + C ‘) (A + B + C ‘D) (e) ABC'D + A'BD + ABC
simplify expression using theorems of boolean algebra Simplify expression using theorems of boolean algebra A middot...
simplify expression using theorems of boolean algebra
Simplify expression using theorems of boolean algebra A middot B bar middot C bar + A bar B bar C bar + A bar BC bar + A bar B bar C
Let x,y,zϵB, where B is a Boolean algebra. Simplify (x∧y)∨(x^'∧y∧z^')∨(y∧z) As much as possible.
Let x,y,zϵB, where B is a Boolean algebra. Simplify (x∧y)∨(x^'∧y∧z^')∨(y∧z) As much as possible.
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show...
Simplify the following Boolean expressions to the minimum number of terms using the properties of Boolean algebra (show your work and write the property you are applying). State if they cannot be simplified A. X’Y + XY B. (X + Y)(X + Y’) C. (A’ + B’) (A + B)’ D. ABC + A’B + A’BC’ E. XY + X(WZ + WZ’)
Simplify the equation above (call this output G) using Boolean algebra theorems and axioms and obtain...
Simplify the equation above (call this output G) using Boolean
algebra theorems and axioms and obtain the canonical SOP equation
(call this output H). Please show all work on how you got the
simplified equation and canonical sop equation. The program used is
Vivado with VHDL files. Please show the code and results of the
program.
This task is to implement the function F(A, B,C,D) = ACD e AB + BC) +ĀCD(BC + ABCD +ĀCD) in task2.vhd. Inputs: A, B,...
Simplify the equation above (call this output G) using Boolean algebra theorems and axioms and obtain...
Simplify the equation above (call this output G) using Boolean
algebra theorems and axioms and obtain the canonical SOP equation
(call this output H). Please show all work on how you got the
simplified equation and canonical sop equation. Code is not needed
for this post.
.
This task is to implement the function F(A, B,C,D) = ACD e AB + BC) +ĀCD(BC + ABCD +ĀCD) in task2.vhd. Inputs: A, B, C, D Outputs: F, G, H 1. Create the...
Simplify the following Boolean expressions to a minimum number of literals using only Boolean algebra (a)...
Simplify the following Boolean expressions to a minimum number of literals using only Boolean algebra (a) F(x, y, z) = x'· y' · z' + x · z + x'· y'· z (b) F(X, Y ) = (X' + Y ) · (X' + Y' ) (c) F(x, y, z) = (x + y + z') · (x' + y + z') · (x + y + z) · (x' + y + z) (d) F(x, y, z) = x'·...
Q1: Boolean algebra 1. Simplify the following Boolean expression using Boolean algebra we learned in class...
Q1: Boolean algebra 1. Simplify the following Boolean expression using Boolean algebra we learned in class land draw the logic diagram of the simplified expression - - F= ABC + ABC + ABC + ABC+ ABC
Use Boolean algebra to simplify. a = (NOT B) * (NOT C + NOT A) *...
Use Boolean algebra to simplify. a = (NOT B) * (NOT C + NOT A) * (NOT G + (NOT D + NOT A)) * (NOT H + ((NOT E + NOT A)*(NOT F + (NOT D + NOT A)))
[8] Using properties of Boolean algebra, simplify the following Boolean expressions so they could be built...
[8] Using properties of Boolean algebra, simplify the following Boolean expressions so they could be built with the minimum number of gates. a. X= A + BC + AB + ABC + B b. Y = AB + B(AC + BC + ABC' + A) C. W = ABC' + AB'C' + B'CD + A'C + BC d. Z = (A + B')' + (ABC')' +A(B + A'C)'
simplify expression using theorems of boolean algebra
Simplify expression using theorems of boolean algebra A middot B bar middot C bar + A bar B bar C bar + A bar BC bar + A bar B bar C
Simplify the equation above (call this output G) using Boolean
algebra theorems and axioms and obtain the canonical SOP equation
(call this output H). Please show all work on how you got the
simplified equation and canonical sop equation. The program used is
Vivado with VHDL files. Please show the code and results of the
program.
This task is to implement the function F(A, B,C,D) = ACD e AB + BC) +ĀCD(BC + ABCD +ĀCD) in task2.vhd. Inputs: A, B,...
Simplify the equation above (call this output G) using Boolean
algebra theorems and axioms and obtain the canonical SOP equation
(call this output H). Please show all work on how you got the
simplified equation and canonical sop equation. Code is not needed
for this post.
.
This task is to implement the function F(A, B,C,D) = ACD e AB + BC) +ĀCD(BC + ABCD +ĀCD) in task2.vhd. Inputs: A, B, C, D Outputs: F, G, H 1. Create the...
Q1: Boolean algebra 1. Simplify the following Boolean expression using Boolean algebra we learned in class land draw the logic diagram of the simplified expression - - F= ABC + ABC + ABC + ABC+ ABC
[8] Using properties of Boolean algebra, simplify the following Boolean expressions so they could be built with the minimum number of gates. a. X= A + BC + AB + ABC + B b. Y = AB + B(AC + BC + ABC' + A) C. W = ABC' + AB'C' + B'CD + A'C + BC d. Z = (A + B')' + (ABC')' +A(B + A'C)'
