A meter stick is mounted to a vertical post such that it is free to rotate...

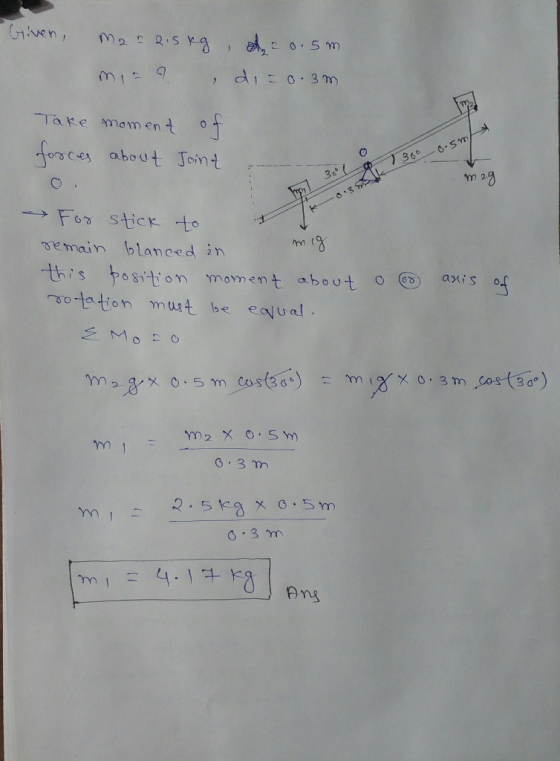

A meter stick is mounted to a vertical post such that it is free to rotate in the vertical plane. The rotation axis and center of mass of the meter stick are at the same location. Two masses are attached to the meter stick as shown. M2 is 2.5 kg and is attached to the right end of the stick, i.e 50 cm from the rotation axis. M1 is attached to the left side of the meter stick a distance d1=30 cm from the rotation axis. The meter stick is initially positioned 30 degrees from the horizontal as shown and is then released. What mass should M1 be so that the meter stick stays in the position shown after it is released?
Homework Answers
