A 132 kV, 60 Hz, three-phase transmission line has the following generalized constantsA=jAj\= 0:9696\0:49◦B=jBj\= 52:88\74:79◦ΩC=jCj\= 0:001177\90:15◦SIf...

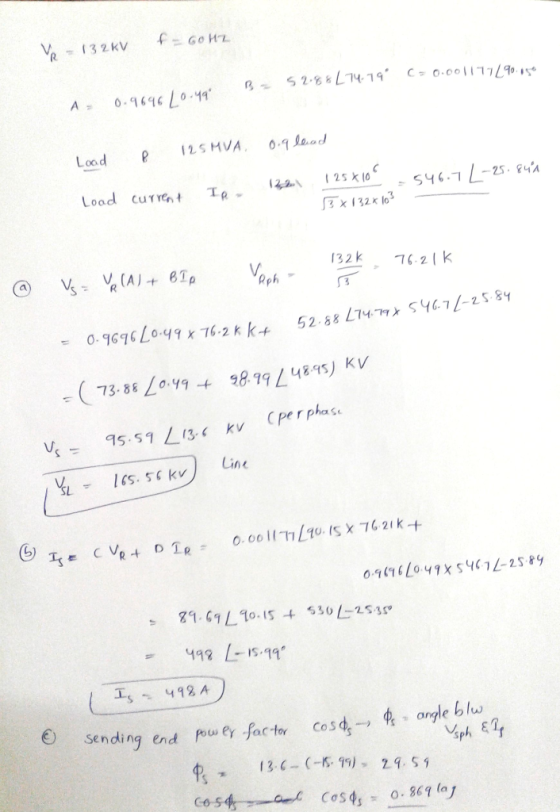

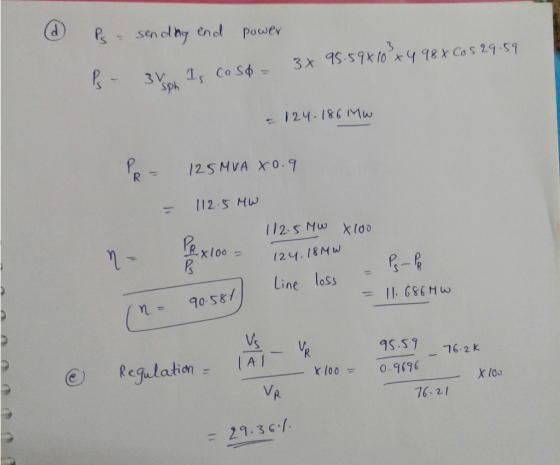

A 132 kV, 60 Hz, three-phase transmission line has the following generalized constantsA=jAj\= 0:9696\0:49◦B=jBj\= 52:88\74:79◦ΩC=jCj\= 0:001177\90:15◦SIf the receiving-end voltage is to be 132 kV when supplying a load of 125 MVA, 0.9 power factorlagging. Calculate:(a)the sending-end voltage;(b)the sending-end current;(c)the sending-end power factor;(d)the full-load line losses and transmission line efficiency;(e)the percent votage regulation.
Homework Answers
Add Answer to:
A 132 kV, 60 Hz, three-phase transmission line has the following
generalized constantsA=jAj\= 0:9696\0:49◦B=jBj\=
52:88\74:79◦ΩC=jCj\= 0:001177\90:15◦SIf...
A 132 kV, 55 MVA, 60 Hz, three-phase, power transmission line is 100 km (62. 1...
A 132 kV, 55 MVA, 60 Hz, three-phase, power transmission line is 100 km (62. 1 mi) long, and has the following characteristics: r = 0.25 Ω/km x = 0.5 Ω/km y = j*S/km What is the per phase total series impedance and shunt admittance of the line? Should the line be modeled as a short, medium or long line? Calculate the ABCD constants of the line. Calculate the sending end voltage and current if the line is supplying rated...
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters...
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters of r = 0.09 Ohm/km, x = 0.88 Ohm/km, y = 4.1*10^-6 S/km. What is the sending end voltage if the line is supplying rated voltage and apparent power at 0.85 PF lagging? What is the voltage regulation of the transmission line for the conditions in question 11.
Problem 2: A 345 kV, 60 Hz, three-phase characteristic parameters of the transmission line are: transmission...
Problem 2: A 345 kV, 60 Hz, three-phase characteristic parameters of the transmission line are: transmission line is 130 km long. The r= 0.036 ?/km L = 0.8 x 10-3 H/km C = 0.0112 x 10-6 F/km The receiving end load is 270 MVA with 0.8 PF lagging at 325 kV. (k) What is the total series impedance of this transmission line? (5 points) () What is the total shunt admittance of this transmission line? (5 points) (m) Calculate the...
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters...
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters of r = 0.09 Ohm/km, x = 0.88 Ohm/km, y = 4.1 * 10^-6 s/km. Calculate the ABCD constants of this transmission line. What is the sending end voltage if the line is supplying rated voltage and apparent power at 0.85 PF lagging? What is the voltage regulation of the transmission line for the conditions in question 11. What is the efficiency of the...
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters...
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters of r = 0.09 ohm/km, x = 0.88 ohm/km, y = 4.1 * 10^-6 S/km. 10. Calculate the ABCD constants of this transmission line. 11. What is the sending end voltage if the line is supplying rated voltage and apparent power at 0.85 PF lagging? 12. What is the voltage regulation of the transmission line for the conditions in question 11. 13. What is...
PROBLEM: A 230-kV, 50 Hz, three-phase transmission line is 120 km long. The line has a per phase ...
PROBLEM: A 230-kV, 50 Hz, three-phase transmission line is 120 km long. The line has a per phase series impedance of z-0.05 +j0.45 Ω per km, and a per phase shunt admittance of y 3.4x10-6 Siemens per km. The line delivers (at the receiving end) 200 MVA, 0.8 lagging power factor at 220 kV. Now consider two cases: A- Assume that shunt parameters of the transmission line are ignored (i.e. even if this is a medium length transmission line, under...
A 3-phase, 50 Hz overhead transmission line has the following constants
A 3-phase, 50 Hz overhead transmission line has the following constants : Resistance/phase = 9·6 Ω Inductance/phase = 0·097 mH Capacitance/phase = 0·765 μF If the line is supplying a balanced load of 24,000 kVA 0·8 p.f. lagging at 66 kV, calculate : (i) sending end current (ii) line value of sending end voltage (iii) sending end power factor (iv) percentage regulation (v) transmission efficiency
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end volta...
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end voltage is equal to the nominal voltage. a. Determine the maximum active power this line can transmit (5 points) b. Determine the reactance of the line (5 points) c. Using basic equations of circuit analysis, show that the magnitude of the receiving end voltage (VR) is approximately 71%...
#2. A 3-phase, 60-Hz transmission line is 140 miles long and has r :0.30 Ohms/mile, x...
#2. A 3-phase, 60-Hz transmission line is 140 miles long and has r :0.30 Ohms/mile, x =1.5 Ohms/mile, and the shunt admittance is 7.8 x 100900 mho /mile. The load at the receiving end of the line is 36 MVA at 220 kV and a power factor of 0.90 lagging (i)Find the ABCD parameters of the line. (i)Find the sending end phasor voltage, Vs and phasor current, Is iv)What is the real power, P and the reactive power Q at...
A 220-kv, 150 MVA, 60-Hz three phase transmission line is 50 km long. The characteristic parameters...
A 220-kv, 150 MVA, 60-Hz three phase transmission line is 50 km long. The characteristic parameters of the transmission line are r-0.05 2/km x-0.88 /km 1. The voltag at the reeioransmisson line is215 kV What is the suppling end voltage if the line is supplying rated voltage at unity PF? What is the voltage regulation of the transmission line? What is the efficiency of the transmission line? a. b. c.
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters of r = 0.09 Ohm/km, x = 0.88 Ohm/km, y = 4.1*10^-6 S/km. What is the sending end voltage if the line is supplying rated voltage and apparent power at 0.85 PF lagging? What is the voltage regulation of the transmission line for the conditions in question 11.
Problem 2: A 345 kV, 60 Hz, three-phase characteristic parameters of the transmission line are: transmission line is 130 km long. The r= 0.036 ?/km L = 0.8 x 10-3 H/km C = 0.0112 x 10-6 F/km The receiving end load is 270 MVA with 0.8 PF lagging at 325 kV. (k) What is the total series impedance of this transmission line? (5 points) () What is the total shunt admittance of this transmission line? (5 points) (m) Calculate the...
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters of r = 0.09 Ohm/km, x = 0.88 Ohm/km, y = 4.1 * 10^-6 s/km. Calculate the ABCD constants of this transmission line. What is the sending end voltage if the line is supplying rated voltage and apparent power at 0.85 PF lagging? What is the voltage regulation of the transmission line for the conditions in question 11. What is the efficiency of the...
A 220-kV, 150 MVA, 60-Hz, three-phase transmission line is 140 km long with the characteristic parameters of r = 0.09 ohm/km, x = 0.88 ohm/km, y = 4.1 * 10^-6 S/km. 10. Calculate the ABCD constants of this transmission line. 11. What is the sending end voltage if the line is supplying rated voltage and apparent power at 0.85 PF lagging? 12. What is the voltage regulation of the transmission line for the conditions in question 11. 13. What is...
PROBLEM: A 230-kV, 50 Hz, three-phase transmission line is 120 km long. The line has a per phase series impedance of z-0.05 +j0.45 Ω per km, and a per phase shunt admittance of y 3.4x10-6 Siemens per km. The line delivers (at the receiving end) 200 MVA, 0.8 lagging power factor at 220 kV. Now consider two cases: A- Assume that shunt parameters of the transmission line are ignored (i.e. even if this is a medium length transmission line, under...
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end voltage is equal to the nominal voltage. a. Determine the maximum active power this line can transmit (5 points) b. Determine the reactance of the line (5 points) c. Using basic equations of circuit analysis, show that the magnitude of the receiving end voltage (VR) is approximately 71%...
#2. A 3-phase, 60-Hz transmission line is 140 miles long and has r :0.30 Ohms/mile, x =1.5 Ohms/mile, and the shunt admittance is 7.8 x 100900 mho /mile. The load at the receiving end of the line is 36 MVA at 220 kV and a power factor of 0.90 lagging (i)Find the ABCD parameters of the line. (i)Find the sending end phasor voltage, Vs and phasor current, Is iv)What is the real power, P and the reactive power Q at...
A 220-kv, 150 MVA, 60-Hz three phase transmission line is 50 km long. The characteristic parameters of the transmission line are r-0.05 2/km x-0.88 /km 1. The voltag at the reeioransmisson line is215 kV What is the suppling end voltage if the line is supplying rated voltage at unity PF? What is the voltage regulation of the transmission line? What is the efficiency of the transmission line? a. b. c.
