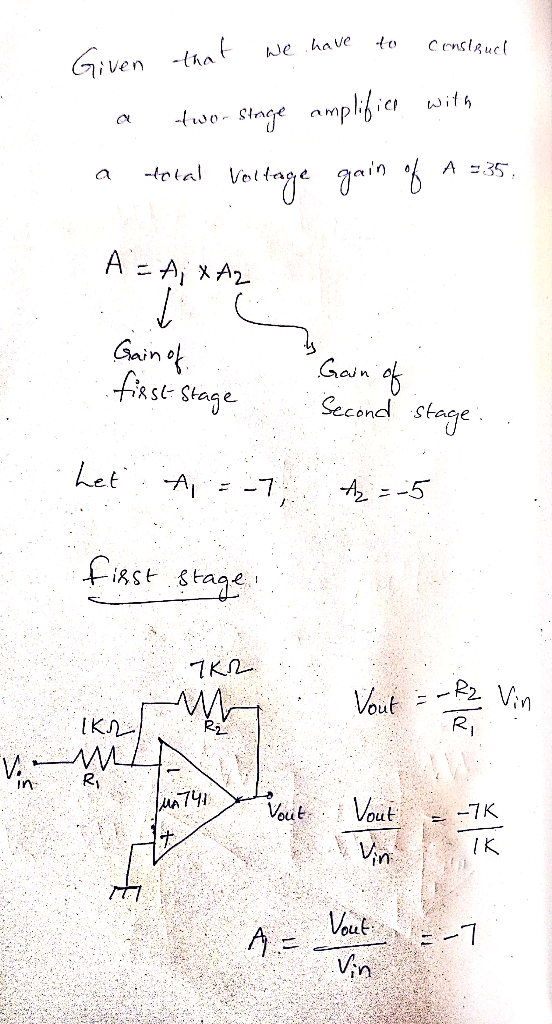

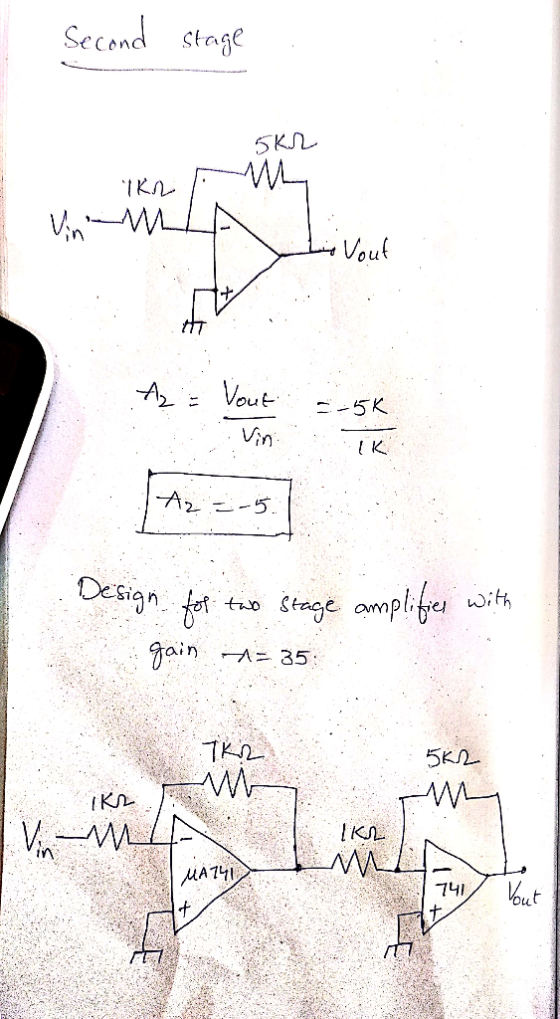

Need to design and construct a two-stage amplifier with a total voltage gain of A = A1 ∙ A2 = -Z where Z is 35. Let A1 be the gain of the first amplifier and A2 be the gain of the second amplifier. The output of Stage 1 becomes the input of Stage 2. Choose any suitable values |A|1 > 1 and |A2| >1 that you wish (Note that both gains must be strictly larger than 1. No buffers). Assume that the available batteries are 9V and -9V. Using the PSPICE cursor to check whether the overall gain that you get and each stage’s gain are exactly as planned. Observe the output for a VSIN input of amplitude 0.1V and frequency of 1KHz (in Transient). Use resistors that are in the KΩ range.
If you have any doubt ask in the comment section below.
Please rate if you like my answer.

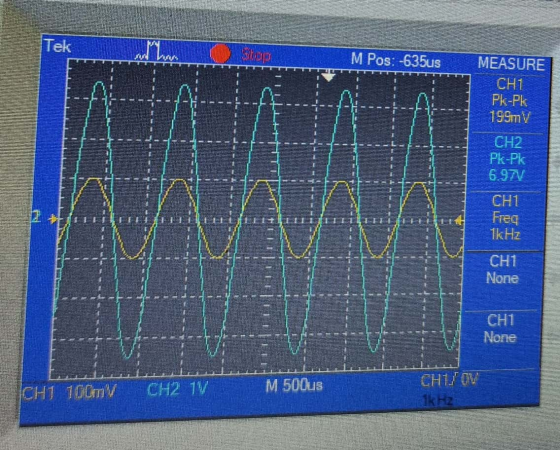

Channel 1 input waveform
Channel 2 output waveform
