A bucket of water of mass 15.7 kg is suspended by a rope wrapped around a...

A bucket of water of mass 15.7 kg is suspended by a rope wrapped around a windlass, that is a solid cylinder with diameter 0.280 m with mass 11.4 kg . The cylinder pivots on a frictionless axle through its center. The bucket is released from rest at the top of a well and falls a distance 10.6 m to the water. You can ignore the weight of the rope.

Part A

What is the tension in the rope while the bucket is falling?

Take the free fall acceleration to be g = 9.80 m/s2 .

Part B

With what speed does the bucket strike the water?

Take the free fall acceleration to be g = 9.80 m/s2 .

Part C

What is the time of fall?

Take the free fall acceleration to be g = 9.80 m/s2 .

Part D

While the bucket is falling, what is the force exerted on the cylinder by the axle?

Take the free fall acceleration to be g = 9.80 m/s2 .
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

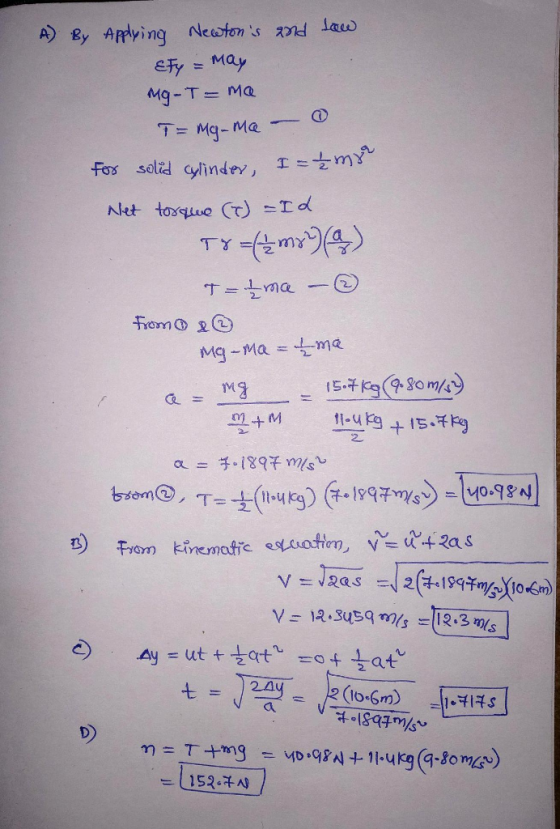

Answer #1

0 0
