Is it possible for a gas contained in a chamber to maintain a constant temperature while...

Is it possible for a gas contained in a chamber to maintain a constant temperature while heat is being added to the gas? Explain why or why not.

Two light bulbs are being used in a lab experiment with a single battery. Bulb A has half the resistance as Bulb B. Which bulb is the dimmest in series? Which bulb is the brightest in parallel? Explain.
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

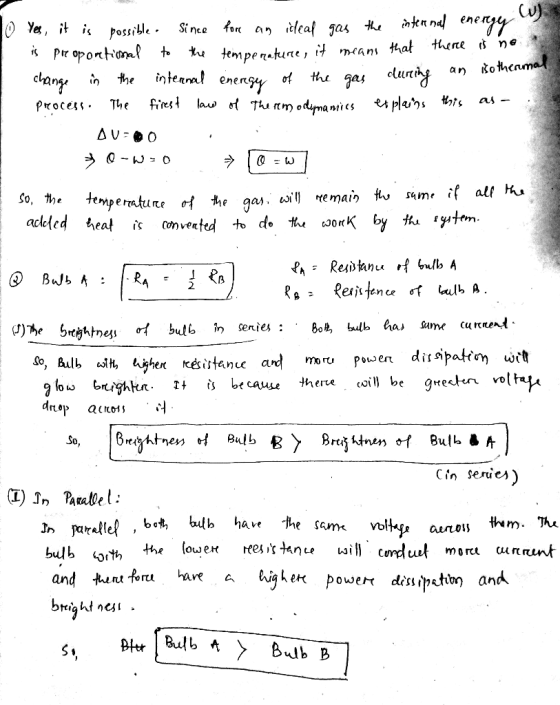

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
Is it possible for a gas contained in a chamber to maintain a constant temperature while...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • please include drawing and explain each step with words. also give final answer in correct significant...

    please include drawing and explain each step with words. also give final answer in correct significant figures please. thankyou. (5 points) Consider the circuit shown in the figure below, which consists of a battery and four identical light bulbs. (a) Draw a circuit diagram for the circuit. You may draw this by hand, but if you'd like to make it look fancy, you could use https://www.circuitlab.com/ and include a screenshot. (b) Do all the bulbs light up? (c) Which bulb(s)...

  • Parallel Circuit Please answer the following Questions. heres the circuit .What can you infer about the...

    Parallel Circuit Please answer the following Questions. heres the circuit .What can you infer about the current through each of the bulbs as each additional bulb is added in parallel? Explain. What can you infer about the current through the battery as each additional bulb is added in parallel? Explain. . What can you infer about the current through the whole circuit as each additional bulb is added in parallel? Explain. Refer back to your rule developed in section 2...

  • A 12-volt battery is connected to two light bulbs, as drawn in Figure 1. Light bulb...

    A 12-volt battery is connected to two light bulbs, as drawn in Figure 1. Light bulb 1 has resistance 3 ohms, while light bulb 2 has resistance 6 ohms. The battery has essentially no internal resistance, and all the wires are essentially resistanceless, too. When a light bulb is unscrewed, no current flows through that branch of the circuit. For instance, if light bulb 2 is unscrewed, current flows only around the lower loop of the circuit, which consists of...

  • Pre-lab Assignment Experiment 21-A Simple Electrical Circuits 1. (2 pts) Capacitors need to be treated with...

    Pre-lab Assignment Experiment 21-A Simple Electrical Circuits 1. (2 pts) Capacitors need to be treated with a little bit of respect and used carefully. What are two things mentioned in the lab about which you should be careful when using capacitors? 2. Suppose a light bulb is rated for a voltage of 1.8 V. At this voltage it draws a current of 0.054 A. a. (1 pt) Using Ohm’s Law, determine the resistance of the bulb. Show your work. b....

  • The battery is charged during the day to keep the bulb string lights shining at night. The solar ...

    In this tutorial you will analyse a solar powered Christmas tree. The tree has a solar panel at the top, a battery at the base, and bulb string lights around it. The bulb string lights are made from 4 parallel strings with 8 light bulbs in series each. Each light bulb has a nominal resistance of 8 2. The resistance of the wiring is negligible. The battery is charged during the day to keep the bulb string lights shining at...

  • A Investigation #11: Non-Identical Bulbs in Series and Parallel All of the circuits you have investigated...

    A Investigation #11: Non-Identical Bulbs in Series and Parallel All of the circuits you have investigated so far have involved identical bulbs. If two bulbs are identical and one bulb is brighter, then the brighter bulb must have a larger current thru it. Furthermore, the larger current must be caused by a larger potential difference. In this investigation, you will study circuits for which the bulbs are not identical. We will illustrate that two Spherical bulbs are not identical by...

  • In this set of exercises (in the pre-lab AND lab), we will test/make the following assumptions:...

    In this set of exercises (in the pre-lab AND lab), we will test/make the following assumptions: A flow exists in a complete circuit from one terminal of the battery, through the rest of the circuit, back to the other terminal of the battery, through the battery and back around i. the circuit. We will call this flow electric current For identical bulbs, bulb brightness can be used as an indicator of the amount of current through that bulb: the brighter...

  • Lab 12 Individual Wrap Up Wrap up question 1: While an ideal battery has no internal...

    Lab 12 Individual Wrap Up Wrap up question 1: While an ideal battery has no internal resistance, real batteries do. What effect would it have on a circuit (in terms of battery voltage and current in the circuit) if a battery has a large internal resistance? Explain. Wrap up question 2: Using the potential vs distance around the circuit plot, draw or describe the single loop circuit that it matches (starting in the lower left corner and going clockwise). Label...

  • 1.A single light bulb is connected to a 12 V battery. The light bulb uses 55...

    1.A single light bulb is connected to a 12 V battery. The light bulb uses 55 W of power (which is about what a car’s headlight uses). (a) What is the current flowing out of the high-voltage (+) end of the battery?   (b) What is the current flowing into the low-voltage (-) end of the battery?   (c) The battery has a sticker on it that says “This 12V battery contains 50 Amp-hours.” This indicates Amps × hours that the battery...

  • Remember that the current coming into a junction equals the current coming out of the junction....

    Remember that the current coming into a junction equals the current coming out of the junction. Also bear in mind that voltage is basically a height difference between two points. 1) If you measure the potential across two batteries and find that V1 = 1.3V and V2 = 1.4V, then you measure the potential between the negative ends of battery 1 and positive end of battery 2 and get V12-+ = -0.1 and the potential between the positive ends of...
