# What range of frequencies should the local oscillator be able to provide to mix the FM...

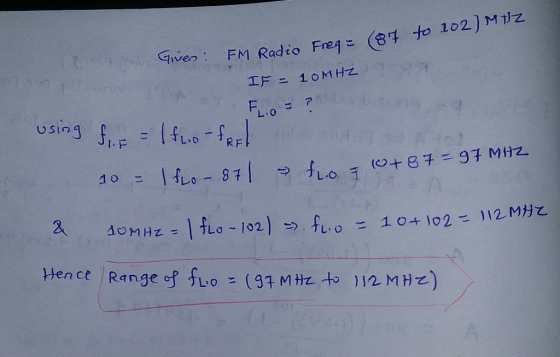

What range of frequencies should the local oscillator be able to provide to mix the FM radio range (87 to 102 MHz) down to 10 MHz?

Hope it helps you out.

Thanks!!
