The manager of an assembly line took five samples each with six observations, under ideal conditions...
- The manager of an assembly line took five samples each with six observations, under ideal conditions to develop control limits for an X-bar chart and R-chart. The mean and the range for each sample is shown in the table below.
Sample Number Sample Mean Sample Range
1 2.18 0.33
2 2.12 0.38
3 1.88 0.44
4 1.99 0.38
5 2.02 0.32

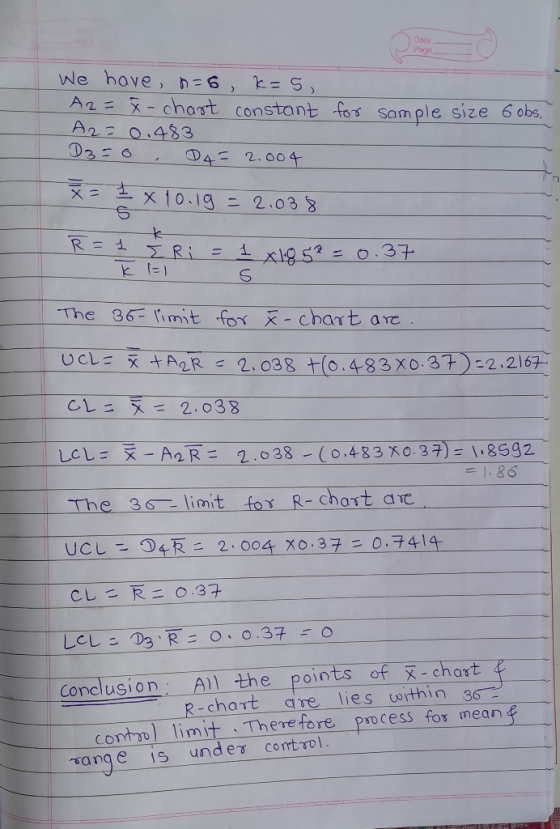

- Calculate the UCL and LCL for the X-bar Chart and the R-chart. (Use the chart on appendix B for the value of A2, page 398 in the book).

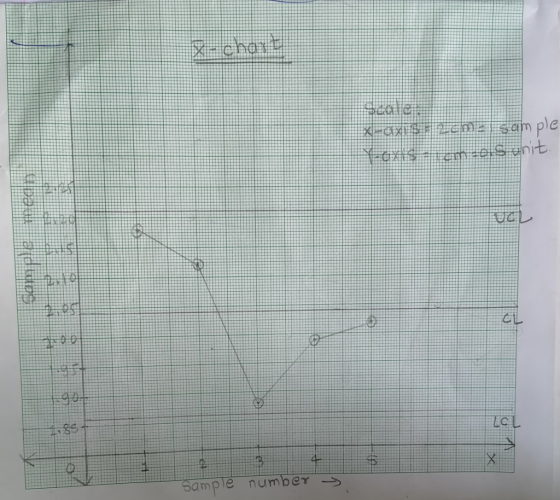

- Construct the X-bar chart and the R-chart. Please watch the example video for this chapter to construct these charts. I prefer to see the charts being drawn manually, by hand, instead of MS Excel because most students who used excel ended up submitting charts that didn’t look like control charts .
- What can you conclude about the assembly line process base on the two charts?
Homework Answers
