A centrifugal pump takes water from the bottom of a supply tank and delivers it into...
A centrifugal pump takes water from the bottom of a supply tank
and delivers it into the
bottom of another tank. The water level in the discharge tank is
50m above the level in
the supply tank. The line between the tanks is 200m of 4-in
commercial steel pipe. The
ow rate is 1200 l/min. In the line, there two gate valves, four
standard tees and four
elbows. What is the energy cost of the running this pump for one
24-h day? The density
and kinematic viscosity of water are 1000 kg/m3 and 10^-6 m2/s,
respectively. The energy
cost is $0:20 kWh, and the eciency of the pump is 70%.
Homework Answers

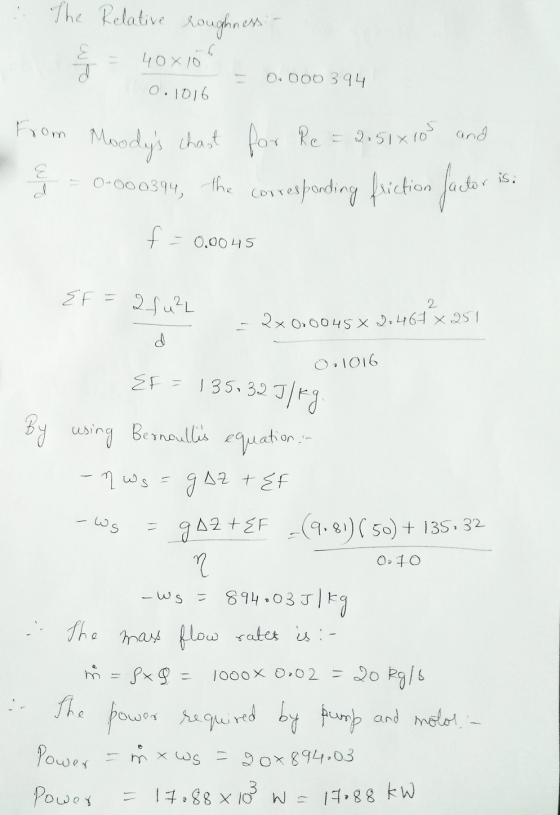

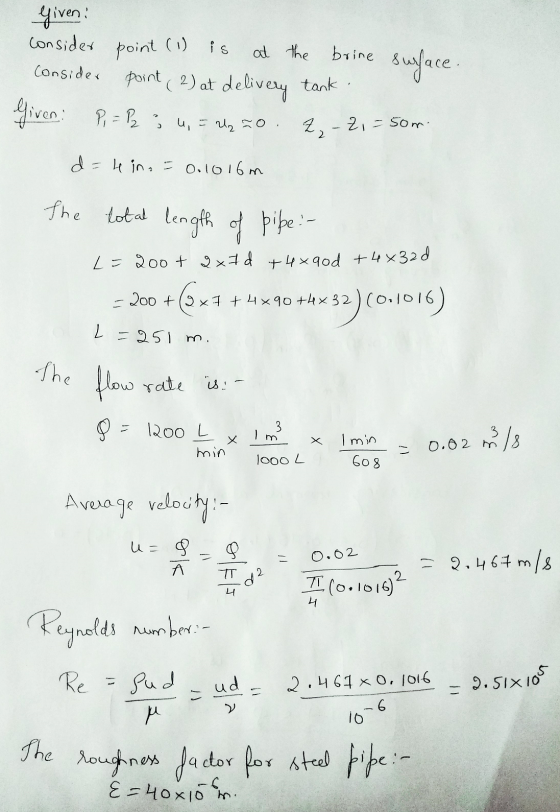

Obtain the friction factor from Moody's chart by using Reynolds number and relative roughness. Then

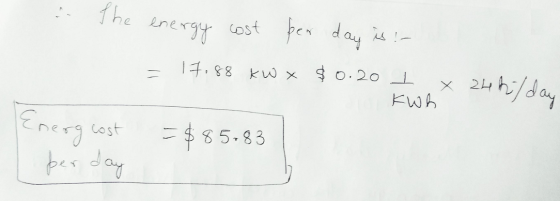

apply Bernoulli's equation at the points considered. Then by using corresponding formulae obtain the power required, mass flow rate and energy cost.
Add Answer to:
A centrifugal pump takes water from the bottom of a supply tank
and delivers it into...
