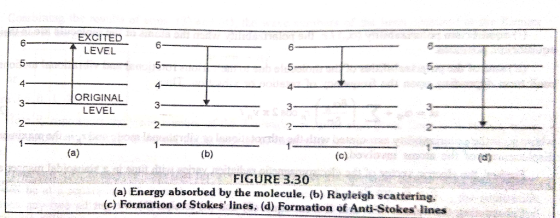

Q. Explain the difference between Rayleigh, Stokes Raman and anti-Stokes Raman scattering.

Question

Question

science chemistry

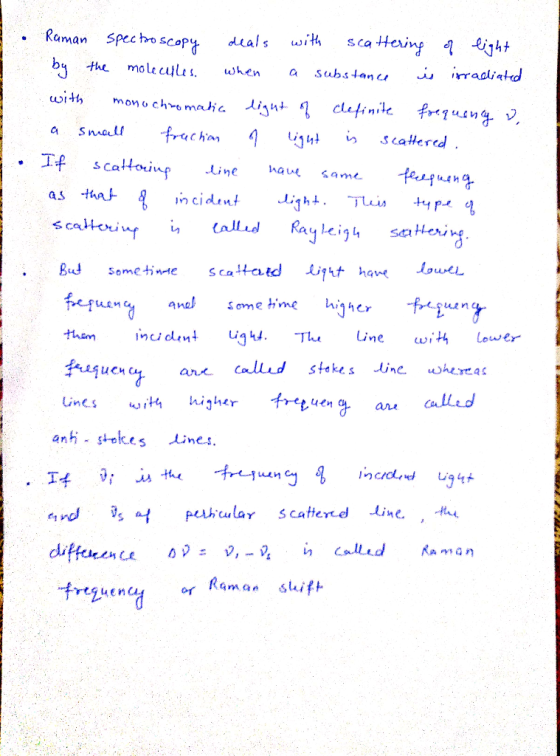

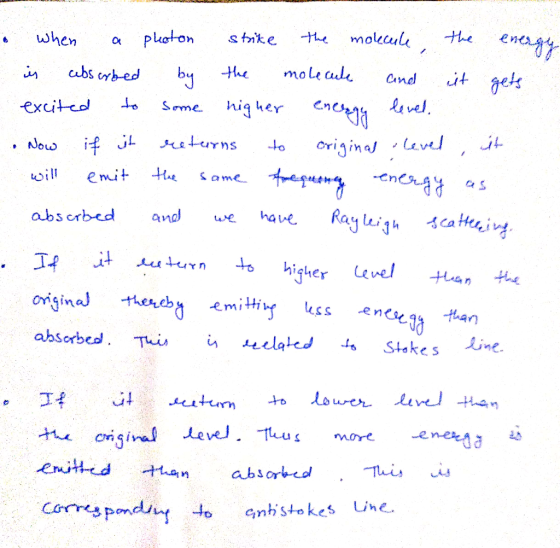

Answer 1

Answer #1

Answer 2
