2. Convert the expressions from infix to postfix. Demonstrate use of the stack to carry this out. A)...
2. Convert the expressions from infix to postfix. Demonstrate use of the stack to carry this out.

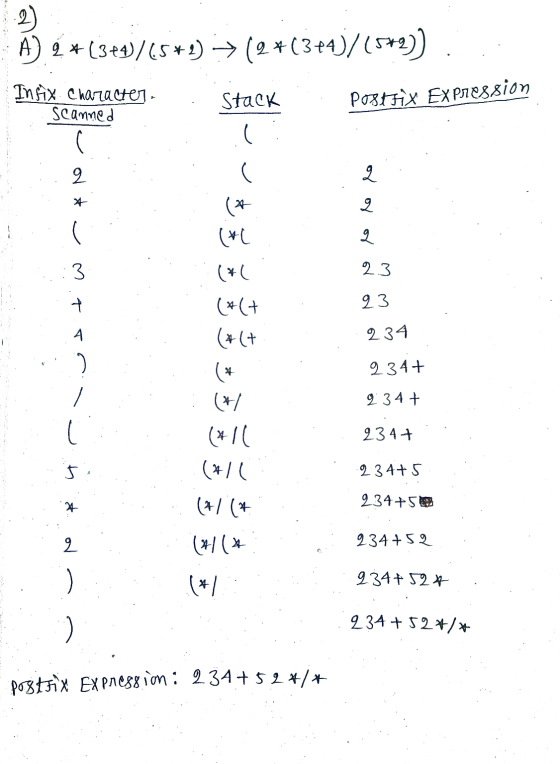

A) 2 * (3 + 4) / (5 * 2)

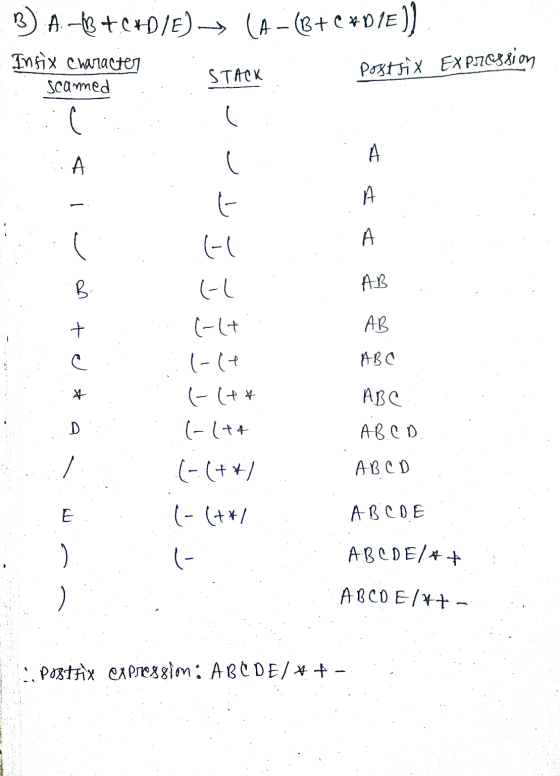

B) A – (B + C * D / E)

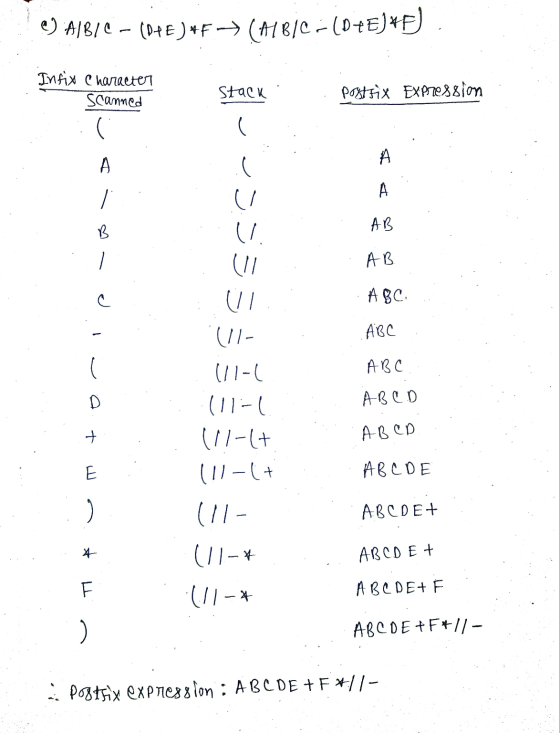

C) A / B / C - (D + E ) * F
Homework Answers
please go through all the
images here is the answer. Please give positive response for this.

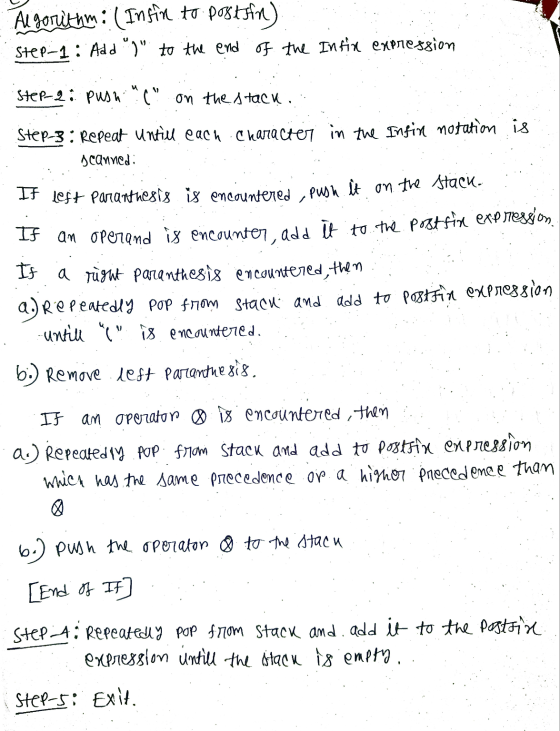

I also explain the algorithm how it works. Please give me a ? for
my better future.
