An object is placed 50 cm in front of a thin lens with a focal length...

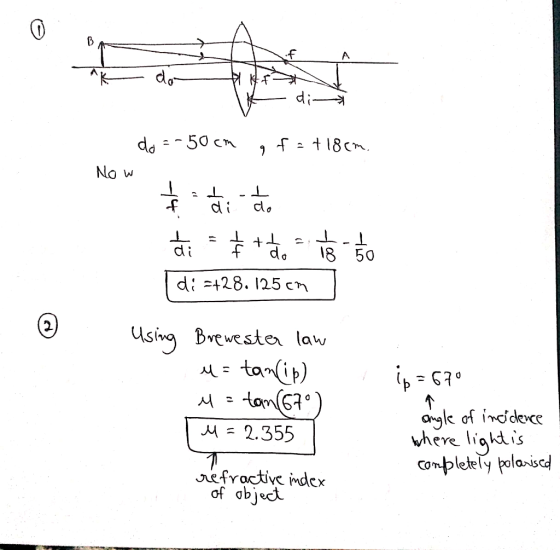

An object is placed 50 cm in front of a thin lens with a focal length of +18 cm. Where is the image formed
Please explain in details
Light reáects from the surface of an object and the reáected light is found to be completely polarized when the angle of incidence is 67 degrees. What is the index of refraction of the object
Homework Answers
Add Answer to:
An object is placed 50 cm in front of a thin lens with a focal
length...
1.) A double-concave lens focal length -20 cm has an object placed at a distance of...
1.) A double-concave lens focal length -20 cm has an object placed at a distance of 30 cm in front of it. How far from the mirror is the image formed? On what side of the lens is the image formed? What is the magnification? Is the image real or virtual? Upright or inverted? 2.) The second order fringe is located 5-cm from the central fringe when formed by a 10 lines/mm diffraction grating on a screen 5 meters away....
*Question 214: Thin Convex Lens/Magnification A thin convex lens has focal length 20 cm. An object...
*Question 214: Thin Convex Lens/Magnification A thin convex lens has focal length 20 cm. An object is placed 40 cm from the lens. What is the magnification of the image? Select one: O a. 1 (the object stays the same size and is not inverted.) O b.-1 (The object stays the same size and is inverted.) O c. 40 cm O d. -40cm o e.-2 *Question 183: Light Properties Which of the following is not true: Select one: O a....
An object placed 20 cm in front of a lens results in an image being formed...
An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...
An object is placed 100 cm in front of a lens of focal length 20 cm....
An object is placed 100 cm in front of a lens of focal length 20 cm. A second lens is placed 35 cm beyond the first, this second lens having a focal length of 8.0 cm. If the size of the object is 6.0 cm, what is the size of the final image? Draw ray diagram and apply thin lens formula
An object is placed 6.0 cm in front of a lens of focal length 5.0 cm....
An object is placed 6.0 cm in front of a lens of focal length 5.0 cm. Another lens of focal length 4.0 cm is placed 2.4 cm behind the first lens. (a) Where is the final image? distance cm location ---Select--- behind the second lens in front of the second lens, but between lenses in front of the first lens Is the image real or virtual? virtualreal (b) What is the overall magnification?
An object is placed 10.0000 cm in front of a lens with focal length =-19.0000cm. Where...
An object is placed 10.0000 cm in front of a lens with focal length =-19.0000cm. Where is the image formed (in cm). You must include the appropriate sign on your answer.
An object is placed 12.0000 cm in front of a lens with focal length =-6.0000cm Where...
An object is placed 12.0000 cm in front of a lens with focal length =-6.0000cm Where is the image formed in cm). You must include the appropriate sign on your answer. Your Answer: Answer
7. An object is placed at a distance of 80 cm left of a converging lens...
7. An object is placed at a distance of 80 cm left of a converging lens with a focal length of 30 cm. . Calculate the image distance. Is the image virtual or real? If the object is 8 cm tall, what is the size of the image? A diverging lens with the same focal length is placed 10 cm right of the first lens. Determine final image position and magnification. 8. A light ray strikes a flat piece of...
An object is placed 45 cm in front of a converging lens of focal length 160...
An object is placed 45 cm in front of a converging lens of focal length 160 cm. Find the location and type of the image formed.
A thin lens of focal length 12.5 cm has a 5.0 cm tall objectplaced 10...
A thin lens of focal length 12.5 cm has a 5.0 cm tall object placed 10 cm in front of it. Where will the image be formed?
*Question 214: Thin Convex Lens/Magnification A thin convex lens has focal length 20 cm. An object is placed 40 cm from the lens. What is the magnification of the image? Select one: O a. 1 (the object stays the same size and is not inverted.) O b.-1 (The object stays the same size and is inverted.) O c. 40 cm O d. -40cm o e.-2 *Question 183: Light Properties Which of the following is not true: Select one: O a....
An object placed 20 cm in front of a lens results in an image being formed 24 cm behind the lens. Each surface of the lens is convex (bulging away from the optical plane) with the same radius of curvature, and the index of refraction of the glass composing the lens is Tiens =1.4. What is the radius of curvature of either side of this lens (to the nearest tenth of a cm)? Note, once again, the focal length of...
An object is placed 10.0000 cm in front of a lens with focal length =-19.0000cm. Where is the image formed (in cm). You must include the appropriate sign on your answer.
An object is placed 12.0000 cm in front of a lens with focal length =-6.0000cm Where is the image formed in cm). You must include the appropriate sign on your answer. Your Answer: Answer
7. An object is placed at a distance of 80 cm left of a converging lens with a focal length of 30 cm. . Calculate the image distance. Is the image virtual or real? If the object is 8 cm tall, what is the size of the image? A diverging lens with the same focal length is placed 10 cm right of the first lens. Determine final image position and magnification. 8. A light ray strikes a flat piece of...
