a solar panel 0.75m x 0.5m is fitted to a mars probe. in orbit around the...

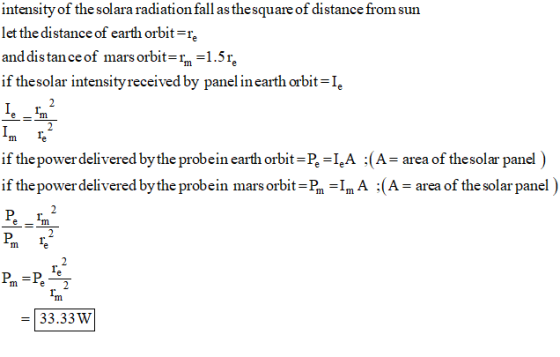

a solar panel 0.75m x 0.5m is fitted to a mars probe. in orbit around the earth, the module is found to deliver 75 W. given that mars is about 1.5 times as far from the sun as is earth, how much power would it deliver in orbit around mars? Earth solar constant = 1360 W/m2
Homework Answers
Add Answer to:
a solar panel 0.75m x 0.5m is fitted to a mars probe. in orbit
around the...
The intensity of solar radiation in space near the Earth is 1.4 kW/m2. The Mars Reconnaissance...
The intensity of solar radiation in space near the Earth is 1.4 kW/m2. The Mars Reconnaissance Orbiter (MRO) orbits Mars, which is 1.5 times further from the Sun than the Earth. What force is exerted by solar radiation impinging normally on a 5.0 m2 perfectly reflecting solar panel on the MRO? A) 23 μN B) 10 μN C) 14 μN D) 21 μN E) 47 μN
The Sun outputs 4 x 10^26 W of power in all directions. The entire population of...
The Sun outputs 4 x 10^26 W of power in all directions. The entire population of the Earth currently uses roughly 15 Terawatts (1.5 x 10^13 W). Suppose in the distant future we put a giant solar panel in orbit around the Sun which captured one millionth (1 part in a million or 10^-6 ) of the Sun’s power. How much power would this solar panel capture and would it be enough to supply the Earth’s current energy needs?
A.) A stationary boat in the ocean is experiencing waves from a storm. The waves move...
A.) A stationary boat in the ocean is experiencing waves from a storm. The waves move at 59 km/h and have a wavelength of 170 m . The boat is at the crest of a wave. How much time elapses until the boat is first at the trough of a wave? B.) A large solar panel on a spacecraft in Earth orbit produces 1.6 kW of power when the panel is turned toward the sun. What power would the solar...
The Intensity of solar radiation at the Earth's orbit is 1370 W/m2. However, because of the...
The Intensity of solar radiation at the Earth's orbit is 1370 W/m2. However, because of the atmosphere, the curvature of the Earth, and rotation (night and day), the actual intensity at the Earth's surface is much lower. At this moment, let us assume the intensity of solar radiation is 350 W/m2. You have installed solar panels on your roof to convert the sunlight to electricity. If the area of your solar panels is 3 m2, How much power is incident...
I can see here that for question B Stefan–Boltzmann law was used. However, the energy per unit area is being divided per 4. why? The ratio distance of Mars from the Sun 1.5 6. distance of Earth from...
I can see here that for question B Stefan–Boltzmann law was
used. However, the energy per unit area is being divided per 4.
why?
The ratio distance of Mars from the Sun 1.5 6. distance of Earth from the Sun (a) Show that the intensity of solar radiation at the orbit of Mars is about 600 W m2 (b) Determine, in K, the mean surface temperature of Mars. Assume that Mars acts as a black body. 121 (c) The atmosphere...
A planet is discovered to orbit around a star in the galaxy Andromeda, with the same...
A planet is discovered to orbit around a star in the galaxy Andromeda, with the same orbital diameter as the Earth around our Sun. If that star has 4 times the mass of our Sun, what will the period of revolution of that new planet be, compared to the Earth's orb o One-fourth as much o One-half as much Twice as much A. Four times much The average distance from the Earth to the Sun is defined as one "astronomical...
Today, the Moon’s orbit around Earth has a semi-major axis of a=384,400 km and an orbital...
Today, the Moon’s orbit around
Earth has a semi-major axis of a=384,400 km and an orbital period
of 27.32166 days.
a. The Moon slowly moves outward due to tidal braking of the
Earth’s rotation, and at some future date the Moon will have an
orbital period of 47 days. Compute the semi-major axis of the
Moon’s orbit at this future date (express your answer in
kilometers).
semi-major axis = 5.5*10^5 km
b. Today, the Moon has an angular diameter of...
Answer all parts except the ones refering to lecture slides. Temperatures on planets. To a good...
Answer all parts except the ones refering to lecture slides.
Temperatures on planets. To a good approximation, stars and planets emit their energy like a black body, which means the energy flux (energy per unit area and per unit time) at the solar surface (radius R_s = 7 times 10^8 m) is given by F = sigma_SBT^4, where sigma_SB = 5.67 times 10^8 W m^-2 K^-41 is the Stefan-Boltzmann constant. [Remember, energy per unit time is power and it- is...
1-1 Suppose you want to make a scale model of a hydrogen atom. You choose, for...
1-1 Suppose you want to make a scale model of a hydrogen atom. You choose, for the nucleus, a small ball bearing with a radius of 1.5 mm. The radius of the hydrogen atom is 0.529 × 10−10 m and the radius of the nucleus is 1.2 × 10−15 m. (a) What would be the radius of the model? (b) Suppose that now you want to make a scale model of the solar system using the same ball bearing as...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
The Intensity of solar radiation at the Earth's orbit is 1370 W/m2. However, because of the atmosphere, the curvature of the Earth, and rotation (night and day), the actual intensity at the Earth's surface is much lower. At this moment, let us assume the intensity of solar radiation is 350 W/m2. You have installed solar panels on your roof to convert the sunlight to electricity. If the area of your solar panels is 3 m2, How much power is incident...
I can see here that for question B Stefan–Boltzmann law was
used. However, the energy per unit area is being divided per 4.
why?
The ratio distance of Mars from the Sun 1.5 6. distance of Earth from the Sun (a) Show that the intensity of solar radiation at the orbit of Mars is about 600 W m2 (b) Determine, in K, the mean surface temperature of Mars. Assume that Mars acts as a black body. 121 (c) The atmosphere...
A planet is discovered to orbit around a star in the galaxy Andromeda, with the same orbital diameter as the Earth around our Sun. If that star has 4 times the mass of our Sun, what will the period of revolution of that new planet be, compared to the Earth's orb o One-fourth as much o One-half as much Twice as much A. Four times much The average distance from the Earth to the Sun is defined as one "astronomical...
Today, the Moon’s orbit around
Earth has a semi-major axis of a=384,400 km and an orbital period
of 27.32166 days.
a. The Moon slowly moves outward due to tidal braking of the
Earth’s rotation, and at some future date the Moon will have an
orbital period of 47 days. Compute the semi-major axis of the
Moon’s orbit at this future date (express your answer in
kilometers).
semi-major axis = 5.5*10^5 km
b. Today, the Moon has an angular diameter of...
Answer all parts except the ones refering to lecture slides.
Temperatures on planets. To a good approximation, stars and planets emit their energy like a black body, which means the energy flux (energy per unit area and per unit time) at the solar surface (radius R_s = 7 times 10^8 m) is given by F = sigma_SBT^4, where sigma_SB = 5.67 times 10^8 W m^-2 K^-41 is the Stefan-Boltzmann constant. [Remember, energy per unit time is power and it- is...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
