Draw a UML class Diagram for a publication with the following procedures. Any publication has a...

Draw a UML class Diagram for a publication with the following procedures.

  • Any publication has a title and a date of publication.

  • A publication has an operation called “get publication content”

Publication could be on of the following:

-        A book publication with some ISBN

-        A conference publication with a conference title and location

-        A journal publication with a journal name and id

engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

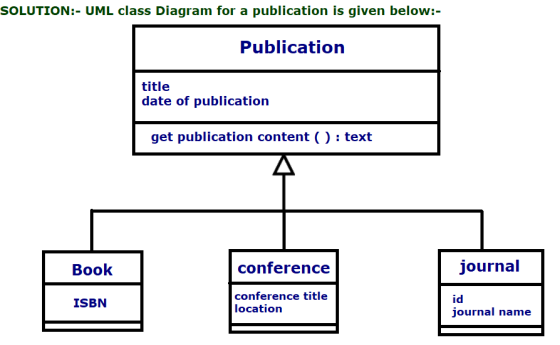

SOLUTION:-

=========================================================================================
