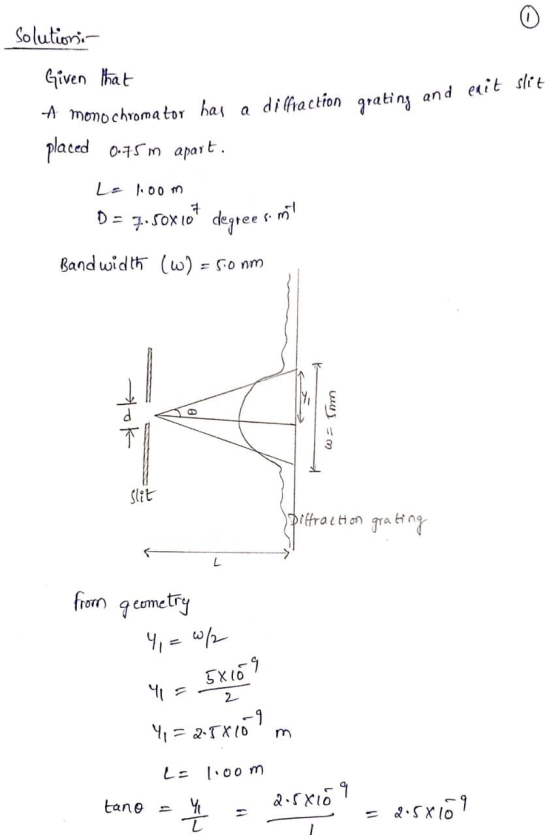

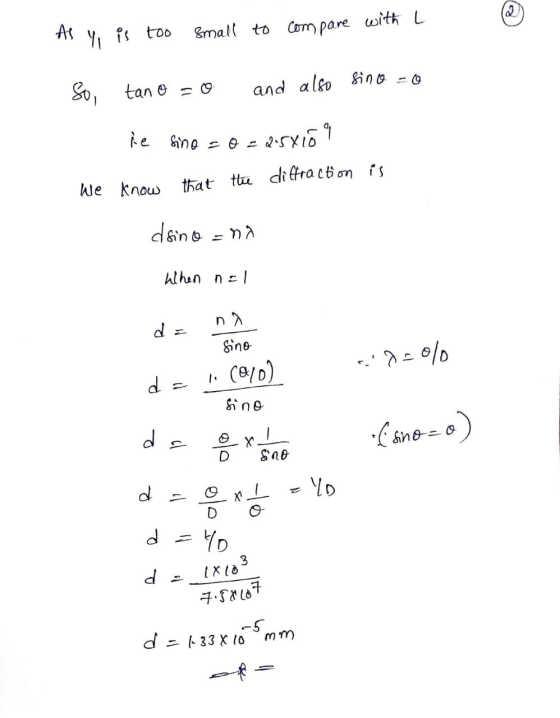

A monochromator has a diffraction grating and exit slit placed 0.75 m apart. The grating has...
A monochromator has a diffraction grating and exit slit placed
0.75 m apart. The grating has D =
1.00x108 degrees·m-1 at a particular wavelength. Use geometry to
calculate how wide the exit slit
should be set so that the bandwidth of the monochromator is 10.0
nm. Give your answer in mm.
Homework Answers
Add Answer to:
A monochromator has a diffraction grating and exit slit placed
0.75 m apart. The grating has...
A multiple-slit diffraction grating has a slit separation of 1.50 × 10−6 m. Find the wavelength...
A multiple-slit diffraction grating has a slit separation of 1.50 × 10−6 m. Find the wavelength of the monochromatic light that will have its second-order bright fringe diffracted through an angle of 44.0°. (1 nm = 10−9 m) 425 nm 521 nm 13 nm 347 nm 260 nm
) In the figure, a slit 0.30 mm wide is illuminated by light of wavelength 426 nm. A diffraction attern is seen on a screen 2.8 m from the slit. What is the linear distance on the screen betw...
) In the figure, a slit 0.30 mm wide is illuminated by light of wavelength 426 nm. A diffraction attern is seen on a screen 2.8 m from the slit. What is the linear distance on the screen between e first diffraction minima on either side of the central diffraction maximum? Answer: 8.0 mm 30) A thin beam of laser light of wavelength 514 nm passes through a diffraction grating having 3952 lines/cm. The resulting pattern is viewed on a...
A diffraction grating has a slit distance of 3 μm. At what angle will purple light...
A diffraction grating has a slit distance of 3 μm. At what angle will purple light (405 nm) be seen in the 1st order? At what angle will turquoise light (484 nm) be seen in the second order? If the light is projected on a screen 0.3 m away, how wide will the whole second order (400nm – 680nm) appear on the screen? What is the principle?
670 nm light passes through a diffraction grating
5. 670 nm light passes through a diffraction grating. At what angle does the 3rd maximum appear if the slits are 4.77 x 10-6 m apart?6. The first fringe in an interference pattern appears at 15° from the incident light. What wavelength of light is used if the light passes through a slit that is 1.2 μm wide?
A laser light was shone through a diffraction grating whose lines were 1/1000 mm apart. The...
A laser light was shone through a diffraction grating whose lines were 1/1000 mm apart. The distance was measured between the center spot and the first side spot andfound to be 99 mm. The distance from the diffraction grating to the first side spot was found to be 154 mm. Calculate the wavelength of light in nm that the laserpointer was emitting.
1. Explain single slit diffraction? What is Fraunhoffer diffraction? Describe diffraction grating and its use in...
1. Explain single slit diffraction? What is Fraunhoffer diffraction? Describe diffraction grating and its use in CD tracking? Calculate the single slit width (a) for a destructive interference that occurs in case of single slit diffraction with dark = 100, m=+2, and 2 = 740 nm? 2. Describe principle, construction of reflecting telescope? What is limiting condition of resolution or Rayleigh's criterion?
2. A diffraction grating has 300 lines per mm. The grating is used to observe normally...
2. A diffraction grating has 300 lines per mm. The grating is used to observe normally incident light with a wavelength of 440 nm. The grating is placed 1.3 m from a screen. Where on the screen will the first order bright line appear?
1.How wide is the central diffraction peak on a screen 2.40 m behind a 0.0368-mm-wide slit...
1.How wide is the central diffraction peak on a screen 2.40 m behind a 0.0368-mm-wide slit illuminated by 568-nm light? Express your answer using three significant figures. 2.Light of wavelength 610 nm falls on a slit that is 3.60×10−3 mm wide. Part A How far the first bright diffraction fringe is from the strong central maximum if the screen is 13.0 m away.
3. (20 points) A monochromator is a popular choice of wavelength selector in optical instruments. Answer...
3. (20 points) A monochromator is a popular choice of wavelength selector in optical instruments. Answer the following question regarding a monochromator that has a focal length of 0.78 m and a grating of 2500 lines/mm. (a) (b) Draw a schematic diagram to show key elements in any monochromator, including slits, reflectors and grating. Describe briefly how each element affects the resolution in wavelength at the output of monochromator. Calculate the reciprocal linear dispersion (D-1) of the monochromator for the...
hi if you could please help that would be appreciated Part A If a diffraction grating...
hi if you could please help that would be appreciated
Part A If a diffraction grating produces a third-order bright spot for red light (of wavelength 690 nm )at 67.0 from the central maximum, at what angle will the second-order bright spot be for violet light (of wavelength 445 nm)? VA ? Submit Request Answer Constants A slit 0.330 mm wide is illuminated by parallel rays of light that have a wavelength of 560 nm. The diffraction pattern is observed...
) In the figure, a slit 0.30 mm wide is illuminated by light of wavelength 426 nm. A diffraction attern is seen on a screen 2.8 m from the slit. What is the linear distance on the screen between e first diffraction minima on either side of the central diffraction maximum? Answer: 8.0 mm 30) A thin beam of laser light of wavelength 514 nm passes through a diffraction grating having 3952 lines/cm. The resulting pattern is viewed on a...
1. Explain single slit diffraction? What is Fraunhoffer diffraction? Describe diffraction grating and its use in CD tracking? Calculate the single slit width (a) for a destructive interference that occurs in case of single slit diffraction with dark = 100, m=+2, and 2 = 740 nm? 2. Describe principle, construction of reflecting telescope? What is limiting condition of resolution or Rayleigh's criterion?
2. A diffraction grating has 300 lines per mm. The grating is used to observe normally incident light with a wavelength of 440 nm. The grating is placed 1.3 m from a screen. Where on the screen will the first order bright line appear?
3. (20 points) A monochromator is a popular choice of wavelength selector in optical instruments. Answer the following question regarding a monochromator that has a focal length of 0.78 m and a grating of 2500 lines/mm. (a) (b) Draw a schematic diagram to show key elements in any monochromator, including slits, reflectors and grating. Describe briefly how each element affects the resolution in wavelength at the output of monochromator. Calculate the reciprocal linear dispersion (D-1) of the monochromator for the...
hi if you could please help that would be appreciated
Part A If a diffraction grating produces a third-order bright spot for red light (of wavelength 690 nm )at 67.0 from the central maximum, at what angle will the second-order bright spot be for violet light (of wavelength 445 nm)? VA ? Submit Request Answer Constants A slit 0.330 mm wide is illuminated by parallel rays of light that have a wavelength of 560 nm. The diffraction pattern is observed...
