show all work 1. a transformer is connected to a 460 VAC line. The secondary voltage...
show all work

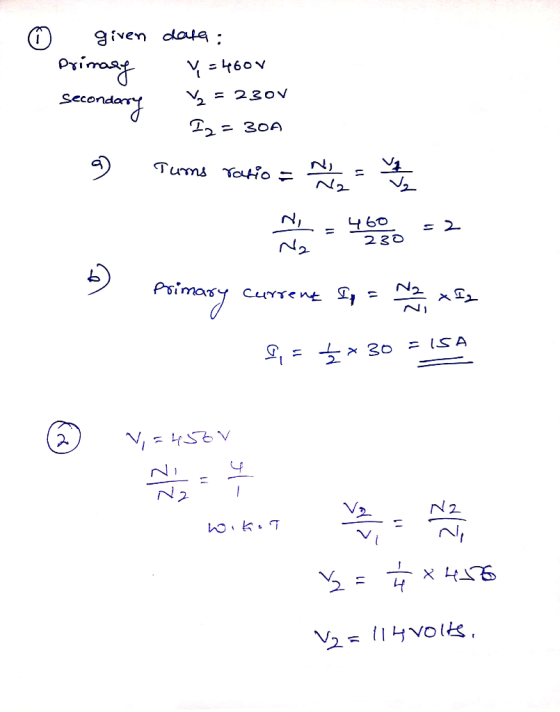

1. a transformer is connected to a 460 VAC line. The secondary voltage is 230VAC. The load connected to the secondary voltage draws 30A.
a. what is the turns ratio of the transformer?
b. How much current flows in the primary circuit?
2. You find that under unusually heavy loads, the voltage in your plant drops to 456 V. What will be the resulting secondary voltage if you use a transformer with a 4:1 primary to secondary turns ratio?
Homework Answers
Add Answer to:
show all work
1. a transformer is connected to a 460 VAC line. The secondary
voltage...
A transformer connected to a 120 V (rms) a line is to supply 12.0 V (rms)...
A transformer connected to a 120 V (rms) a line is to supply 12.0 V (rms) to a 5.00 Ohm resistor in the secondary circuit. (a) What should the ratio of turns of the primary to secondary circuit of the transformer be? (b) What is the average power delivered to the secondary? (c) Assuming the transformer to be ideal (i.e., 100% of the power in the primary is transferred to the second), what is the rms current in the primary?
4-9 Question Completion Status: QUESTION 4 A three phase delta source is connected to a three...
4-9
Question Completion Status: QUESTION 4 A three phase delta source is connected to a three phase transformer. The primary of the transformer is connected in a delta configuration The line voltage on the primary is 240V. The turns ratio is 2:1. The secondary of the transformer is connected in a wye configuration. A wye connected load is attached to the secondary of the transformer. Each of the three load resistors has a resistance of 10 ohms. What is the...
A transformer connected to a 125 V (rms) ac line is to supply 12000 V (rms)...
A transformer connected to a 125 V (rms) ac line is to supply 12000 V (rms) for a neon sign. To reduce shock hazard, a fuse is to be inserted in the primary circuit; the fuse is to blow when the rms current in the secondary circuit exceeds 5.00 mA. (a) What is the ratio of secondary to primary turns of the transformer? (secondary/primary) (b) What power must be supplied to the transformer when the rms secondary current is 5.00...
5. (10 pts) A transformer is designed to have an output voltage of 1350 V (rms)...
5. (10 pts) A transformer is designed to have an output voltage of 1350 V (rms) when the primary coil is connected to a 150V (rms) source. (i) Is this a step-up or step-down transformer? f there are 2700 turns on the secondary winding (coil), how many turns are required on the primary? (ii) If a load resistor across the secondary draws a peak current of 1.5.A, what is the peak and the rms current in the primary?
A three-phase Yy0 connected transformer has a nominal rating of 250 kVA and a voltage ratio...
A three-phase Yy0 connected transformer has a nominal rating of 250 kVA and a voltage ratio 15:0.4 kV. After conducting the short-circuit test, where the secondary winding is short-circuited, it is found that the primary series resistance is 0.08 pu and the primary series impedance magnitude is 0.1pu. The effect of the parallel branch in the transformer’s equivalent circuit may be neglected. Explain what information ‘Yy0’ gives about the transformer. Draw the per-phase equivalent circuit of the transformer during the...
A transformer has 1020 turns in the primary and 12 turns in the secondary. (a) Is...
A transformer has 1020 turns in the primary and 12 turns in the secondary. (a) Is this a step-up or step-down transformer? (b) If the primary is connected across 120 V rms, what is the open-circuit voltage across the secondary? ( ) V (c) If the primary current is 0.3 A, what is the secondary current, assuming negligible magnetization current and no power loss? ( ) A
Problem 1: The secondary winding of a transformer has a terminal voltage of v, (t) 282.8...
Problem 1: The secondary winding of a transformer has a terminal voltage of v, (t) 282.8 sin 377t V. The turns ratio of the transformer is 100:200 (a0.50) The impedances of this transformer referred to the primary side are The equivalent circuit is shown below lf (a) If the secondary current of the transformer is i,()-7.07sin(3771-36.87) A, what is the primary current of this transformer? (20 points) HINTS: I. Peak values of the secondary voltage and current are specified in...
An ideal step-down transformer has a primary coil of 370 turns and a secondary coil of...
An ideal step-down transformer has a primary coil of 370 turns and a secondary coil of 22 turns. Its primary coil is plugged into an outlet with 115 V, from which it draws a current of 0.29 A. (a) What is the voltage in the secondary coil? (b) Calculate the current in the secondary coil? (c) Assuming that the transformer secondary is driving a resistive load, calculate the average power dissipated in the resistor.
A delta-wye connected transformer is shown in Figure below. This is a 220 kV to 450...
A delta-wye connected transformer is shown in Figure below. This is a 220 kV to 450 kV transformer, line-line, RMS. The 'X' side is the 220 kV side. Assume that Phase A voltage on the X' side has zero phase angle (that is, use VaX as the phase reference) 1) What is the turns ratio NX: NH? 2) Draw phasor diagrams of the primary and secondary voltages. Be sure to get relative phase angles right. 3) If a balanced load...
An ideal transformer with 5 turns on the primary and 10 turns on the secondary is...
An ideal transformer with 5 turns on the primary and 10 turns on the secondary is shown in the figure. A sinusoidal voltage source having V(t) = 10 sin(100t) volts is connected across the primary and a 1 Ω resistor is connected across the secondary. What is the maximum value of the current in the primary circuit (not the secondary)? (answer is 40 amps)
A transformer connected to a 120 V (rms) a line is to supply 12.0 V (rms) to a 5.00 Ohm resistor in the secondary circuit. (a) What should the ratio of turns of the primary to secondary circuit of the transformer be? (b) What is the average power delivered to the secondary? (c) Assuming the transformer to be ideal (i.e., 100% of the power in the primary is transferred to the second), what is the rms current in the primary?
4-9
Question Completion Status: QUESTION 4 A three phase delta source is connected to a three phase transformer. The primary of the transformer is connected in a delta configuration The line voltage on the primary is 240V. The turns ratio is 2:1. The secondary of the transformer is connected in a wye configuration. A wye connected load is attached to the secondary of the transformer. Each of the three load resistors has a resistance of 10 ohms. What is the...
5. (10 pts) A transformer is designed to have an output voltage of 1350 V (rms) when the primary coil is connected to a 150V (rms) source. (i) Is this a step-up or step-down transformer? f there are 2700 turns on the secondary winding (coil), how many turns are required on the primary? (ii) If a load resistor across the secondary draws a peak current of 1.5.A, what is the peak and the rms current in the primary?
Problem 1: The secondary winding of a transformer has a terminal voltage of v, (t) 282.8 sin 377t V. The turns ratio of the transformer is 100:200 (a0.50) The impedances of this transformer referred to the primary side are The equivalent circuit is shown below lf (a) If the secondary current of the transformer is i,()-7.07sin(3771-36.87) A, what is the primary current of this transformer? (20 points) HINTS: I. Peak values of the secondary voltage and current are specified in...
A delta-wye connected transformer is shown in Figure below. This is a 220 kV to 450 kV transformer, line-line, RMS. The 'X' side is the 220 kV side. Assume that Phase A voltage on the X' side has zero phase angle (that is, use VaX as the phase reference) 1) What is the turns ratio NX: NH? 2) Draw phasor diagrams of the primary and secondary voltages. Be sure to get relative phase angles right. 3) If a balanced load...
