Design a 2-bit alu that performs the following four operations: (However, the internal circuit of the...

Design a 2-bit alu that performs the following four operations: (However, the internal circuit of the full adder may be omitted)

s0 s1     operation           comment

0 0          clear                    F=00

0   1         A plus B                F=A+B

1   0        A minus B              F=A-B

1   1     A exclusive-or B    F=A exclusive-or B

0 0
Add a comment Improve this question Transcribed image text
Answer #1

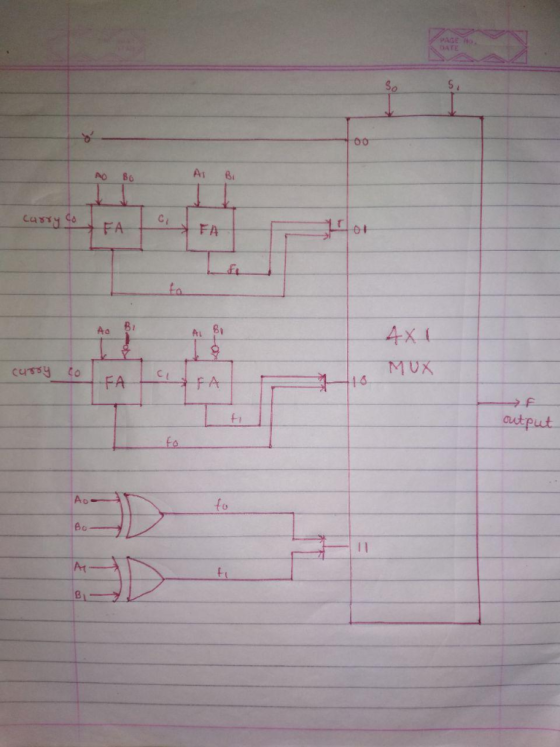

->as shown in figure that if s0=0 and s1=0 then simply zero will be F

->if s0=0 and s1=1 then we have to perform A+B so that we have two Full Adder(FA) which will perform A+B and output of both FA are f0 and f1 and it is our F.

->if s0=1 and s1=0 then we have to perform A-B so that we have two Full Adder(FA) which will perform A-B and output of both FA are f0 and f1 and it is our F.

->if s0=1 and s1=1 then we have to perform A-ex-OR-B so that we have two Full Adder(FA) which will perform A-ex-OR-B and output of both FA are f0 and f1 and it is our F.

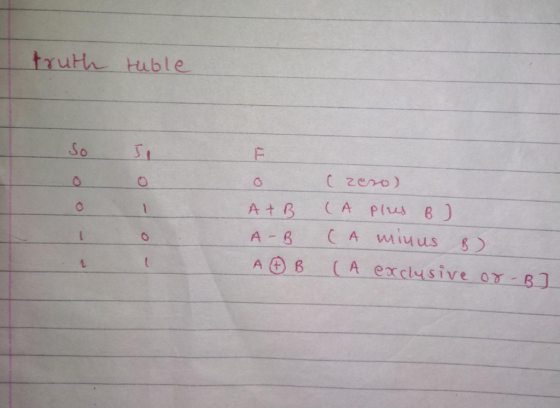

Truth table

//if you get your solution then please give like to question
